NSN 5940-00-115-0764 RFTSM74, 0126013, 012-6013
Product Details | STUD TERMINAL
5940-00-115-0764 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: RFTSM74, 0126013, 012-6013, 113B3941P2, 5940-00-115-0764, 00-115-0764, 5940001150764, 001150764
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 OCT 1968 | 00-115-0764 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-00-115-0764
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-115-0764
Technical Data | NSN 5940-00-115-0764
| Characteristic | Specifications |
|---|---|

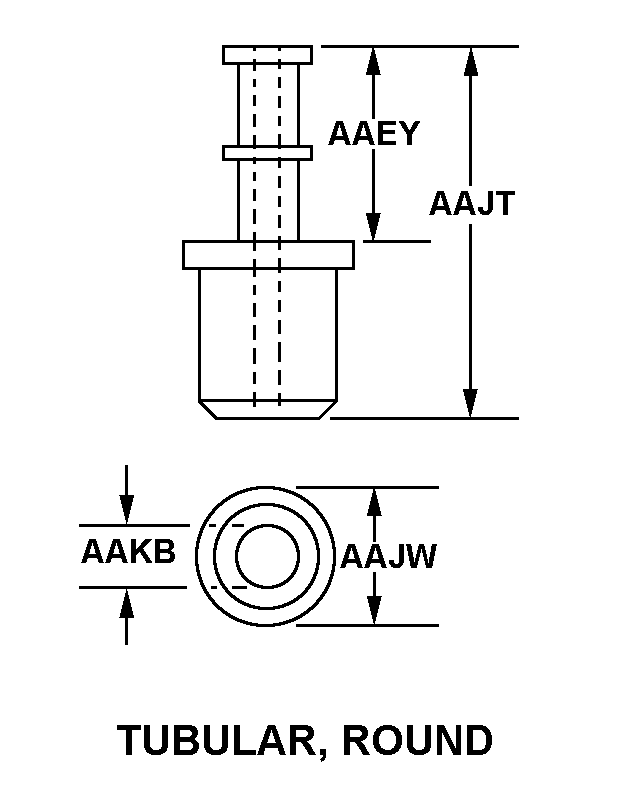

| BASIC SHAPE STYLE | A5 TUBULAR, ROUND |
| TERMINAL LENGTH | 0.133 INCHES |
| OVERALL HEIGHT | 0.351 INCHES |
| OVERALL DIAMETER | 0.148 INCHES |
| THRU-HOLE DIAMETER | 0.062 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SINGLE TURRET SINGLE END |
| LARGEST DIAMETER | 0.125 INCHES SINGLE END |
| TURRET MINOR DIAMETER | 0.082 INCHES SINGLE END |

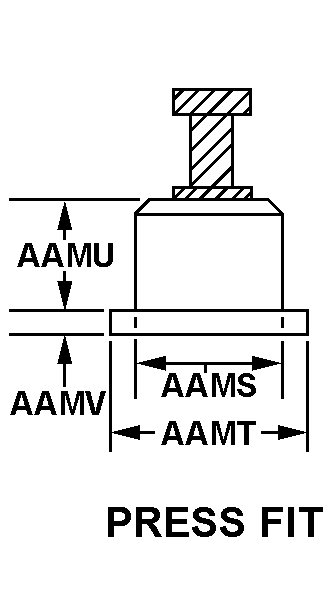

| MOUNTING METHOD STYLE | D31 PRESS FIT |
| MINOR BUSHING DIAMETER | 0.148 INCHES |
| MAJOR BUSHING DIAMETER | 0.172 INCHES |
| MINOR BUSHING LENGTH | 0.125 INCHES |
| MAJOR BUSHING LENGTH | 0.093 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING MOUNTING BUSHING |
| IDENTIFICATION CODE COLOR | WHITE |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION PLASTIC POLYTETRAFLUOROETHYLENE INSULATION PLASTIC POLYTETRAFLUOROETHYLENE MOUNTING FACILITY |
| SURFACE TREATMENT | SOLDER CONDUCTOR ACCOMMODATION SINGLE LAYER |
| III DRY FLASHOVER VOLTAGE RATING IN VOLTS | 2500.0 |
Restrictions/Controls & Freight Information | NSN 5940-00-115-0764
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-115-0764
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
