Product Details | LUG TERMINAL

5940-00-114-1311 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.

Part Alternates: MS25036124, MS25036-124, AS7928, BACT12AC24, F76656, F-766-56, GHN20077024, GHN20077-024 , GT805P45, GT805P4-5, MILT7928, MIL-T-7928, R5102B, R5102BN, RF10721, YAEV4CL4, 0179132, 0259970006, 025997-0006, 10326702 , 13217E38585, 13217E3858-5, 890TB0032, 5940-00-114-1311, 00-114-1311, 5940001141311, 001141311

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 SEP 1968	00-114-1311	00746 ( TERMINAL, LUG )

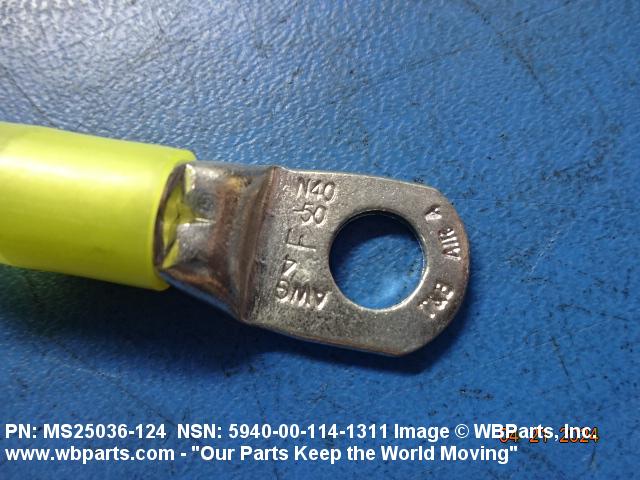

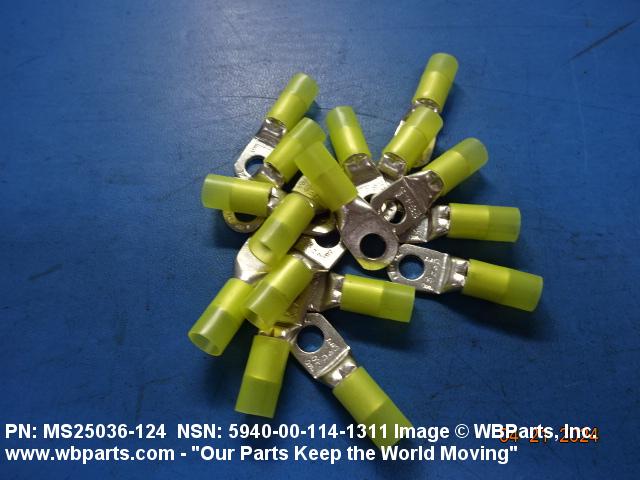

Drawings & Photos | NSN 5940-00-114-1311

Part Number	Request Date	QTY	Origin
BACT12AC24	2024-11-311	250	United States
5940-00-114-1311	2024-04-102	16	Japan
5940-00-114-1311	2024-04-99	16	Japan
MS25036124	2024-04-99	18	Japan
5940-00-114-1311	2024-04-96	5	Japan
MS25036124	2020-05-150	48	United States
5940-00-114-1311	2019-08-221	1	DIBBS-RFPs
5940-00-114-1311	2019-05-128	1	DIBBS-RFPs
5940-00-114-1311	2018-10-283	1051	DIBBS
5940-00-114-1311	2018-06-175	302	DIBBS
5940-00-114-1311	2018-02-38	1000	US
5940-00-114-1311	2017-12-339	50	United States
5940-00-114-1311	2017-04-94	417	DIBBS
MS25036124	2017-03-67	3	Canada
5940-00-114-1311	2016-05-129	334	DIBBS
5940-00-114-1311	2016-02-40	192	DIBBS
5940-00-114-1311	2016-01-13	281	DIBBS
AS7928	2014-05-140	4	United States
MS25036124	2011-05-144	3	United States
MS25036124	2011-03-67	300	Malaysia
5940-00-114-1311	2011-03-63	3	DIBBS
MILT7928	2008-07-191	12	US
5940-00-114-1311	2008-03-79	4	DIBBS

Cross Reference | NSN 5940-00-114-1311

Part Number	Cage Code	Manufacturer
0179132	H0001	DAF TRUCKS N.V.
025997-0006	65597	THALES DEFENSE & SECURITY, INC.
13217E3858-5	36024	LIBBY POWER SYSTEMS LLC
13217E3858-5	97403	CECOM LR CENTER
890TB0032	A0199	OTO MELARA SPA
AS7928	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACT12AC24	81205	THE BOEING COMPANY DBA BOEING
F-766-56	98410	MOLEX-ETC INC SUB OF MOLEX INC
GT805P4-5	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MIL-T-7928	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25036-124	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R5102B	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
R5102BN	14726	ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH -
RF10721	56501	THOMAS & BETTS CORPORATION
YAEV4CL4	09922	SOURIAU USA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-114-1311

Compare

Related Products | NSN 5940-00-114-1311

5940-00-114-1314, 5940-00-114-1315, 5940-00-114-1316, 5940-00-114-1317, 5940-00-114-1318

Technical Data | NSN 5940-00-114-1311

Characteristic	Specifications
BASIC SHAPE STYLE	A24 CRIMP

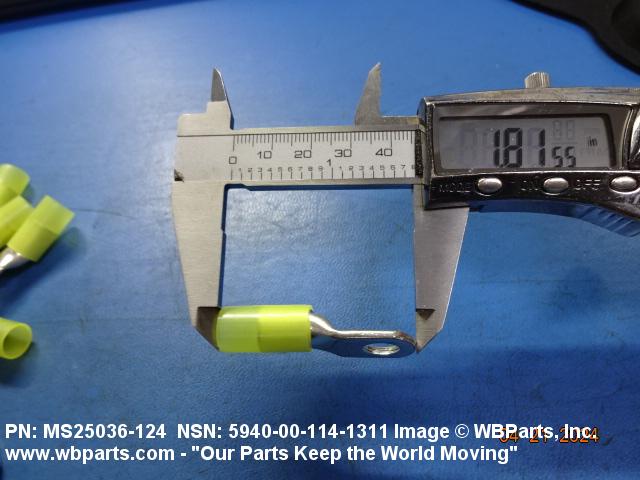

OVERALL LENGTH	1.879 INCHES

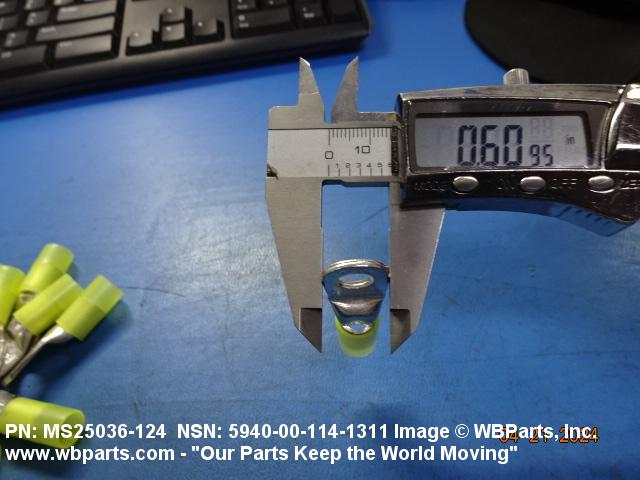

OVERALL WIDTH	0.626 INCHES

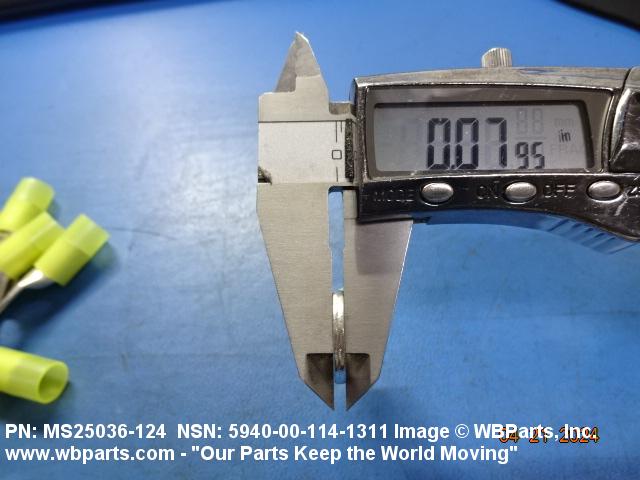

MATERIAL THICKNESS	0.071 INCHES
CONDUCTOR ACCOMMODATION TYPE	RECESSED BARREL SINGLE END
MAXIMUM CONDUCTOR SIZE ACCOMMODATED	4 AWG
MOUNTING METHOD STYLE	D14 RING

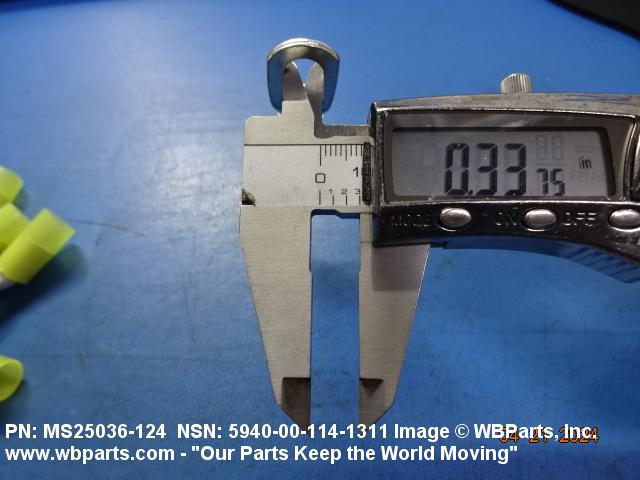

MOUNTING HOLE DIAMETER	0.330 INCHES
MOUNTING TONGUE WIDTH	0.626 INCHES
MOUNTING FACILITY THICKNESS	0.071 INCHES
ELECTRICAL INSULATION FEATURE	INSULATING SLEEVE
IDENTIFICATION CODE COLOR	YELLOW
MATERIAL	PLASTIC POLYAMIDE OR PLASTIC VINYL INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION
MATERIAL DOCUMENT AND CLASSIFICATION	Q-C-502 FED SPEC 1ST MATERIAL RESPONSE AND QQ-C-576 FED SPEC 2ND MATERIAL RESPONSE AND WW-T-799 FED SPEC 3RD MATERIAL RESPONSE OVERALL EXCEPT INSULATION
SURFACE TREATMENT	TIN OVERALL EXCEPT INSULATION SINGLE LAYER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-T-10727 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSULATION SINGLE LAYER
III PART NAME ASSIGNED BY CONTROLLING AGENCY	TERMINAL LUG,CRIMP STYLE, COPPER INSULATED, RING TONUE,BELL MOUTHED,TYPEII,CLASS1
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25036-124
