NSN 5940-00-086-8318 MS210047, MS21004-7, AS21004
Product Details | LUG TERMINAL

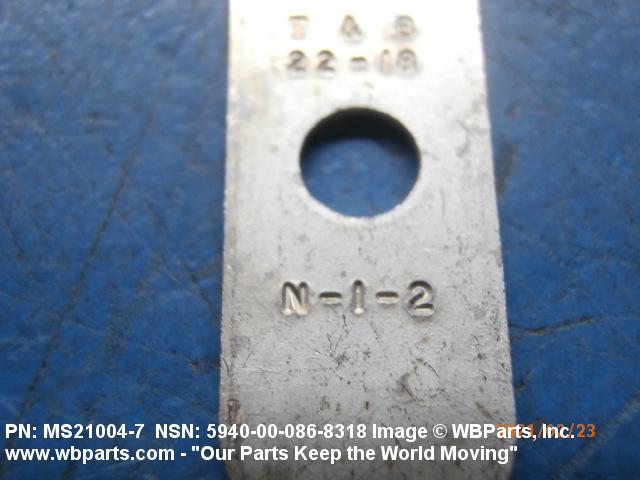

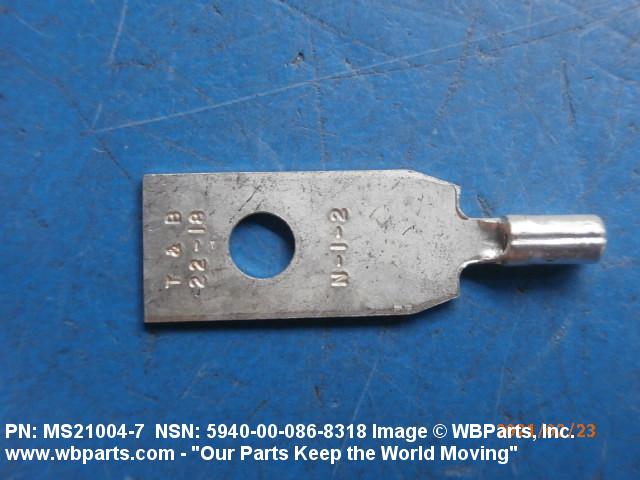

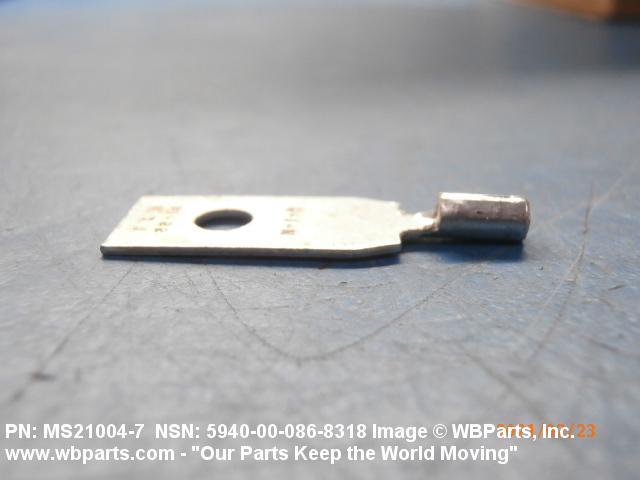

5940-00-086-8318 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS210047, MS21004-7, AS21004, AS7928, SAEAS21004, MILE16366, MILT16366, MIL-T-16366, MILT7928, MIL-T-7928, 4256903151 FIND AY-1-63, 4256903151FINDAY163, A480, 5940-00-086-8318, 00-086-8318, 5940000868318, 000868318
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-086-8318 | 00746 ( TERMINAL, LUG ) |

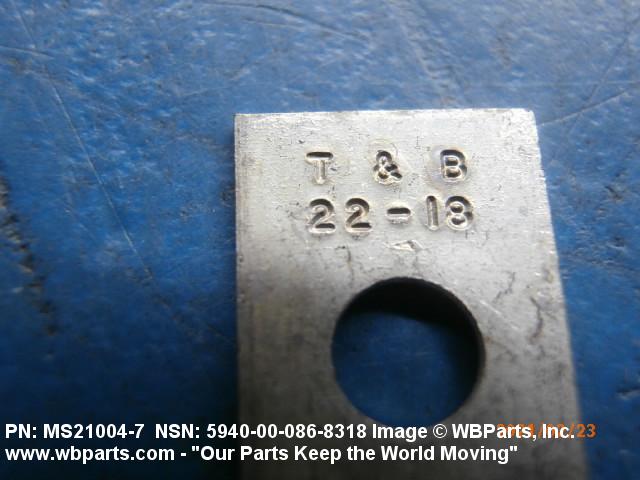

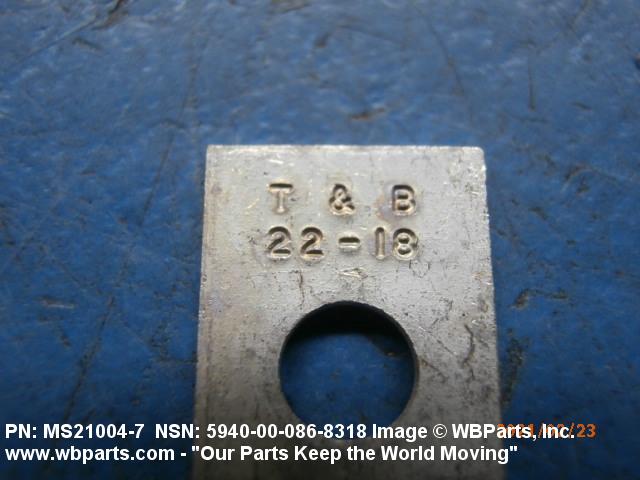

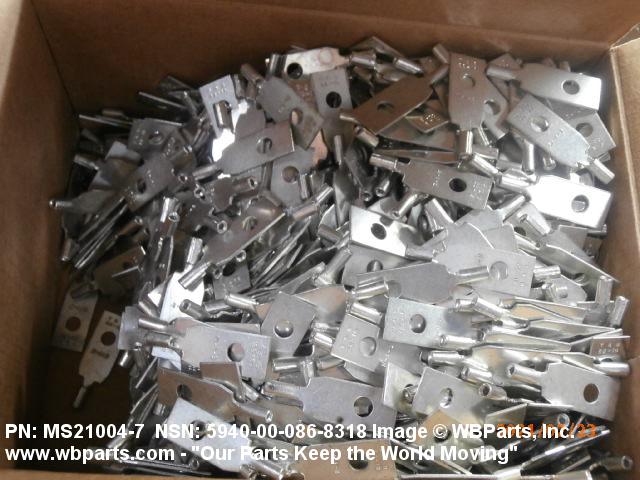

Drawings & Photos | NSN 5940-00-086-8318
Demand History | NSN 5940-00-086-8318
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-086-8318 | 2024-04-92 | 7655 | DIBBS |
| 5940-00-086-8318 | 2024-03-73 | 7655 | DIBBS |
| 5940-00-086-8318 | 2024-02-57 | 12 | United States |
| MILT16366 | 2022-06-171 | 9 | United States |
| MS210047 | 2021-02-50 | 2000 | United States |
| MILT16366 | 2020-12-339 | 9 | US |
| 5940-00-086-8318 | 2020-02-48 | 7500 | United States |
| A480 | 2018-09-260 | 7500 | United States |
| A480 | 2018-09-260 | 7500 | United States |
| 5940-00-086-8318 | 2017-12-352 | 1 | DIBBS-RFPs |
| 5940-00-086-8318 | 2017-07-192 | 32 | US |
| 5940-00-086-8318 | 2017-04-95 | 20232 | DIBBS |
| 5940-00-086-8318 | 2016-06-181 | 20425 | DIBBS |
| AS7928 | 2014-05-140 | 4 | United States |
| 5940-00-086-8318 | 2014-03-64 | 30630 | DIBBS |
| MILT16366 | 2013-09-256 | 12 | US |
| 5940-00-086-8318 | 2010-04-96 | 1995 | DIBBS |
| MILT7928 | 2008-07-191 | 12 | US |
| 5940-00-086-8318 | 2007-11-306 | 16557 | DIBBS |
| 5940-00-086-8318 | 2007-08-241 | 23963 | DIBBS |
| 5940-00-086-8318 | 2007-04-106 | 7185 | DIBBS |
Cross Reference | NSN 5940-00-086-8318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4256903151 FIND AY-1-63 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| A480 | 56501 | THOMAS & BETTS CORPORATION |
| AS21004 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-T-16366 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-7928 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILE16366 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21004-7 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21004-7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SAEAS21004 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-086-8318
Related Products | NSN 5940-00-086-8318
Technical Data | NSN 5940-00-086-8318
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

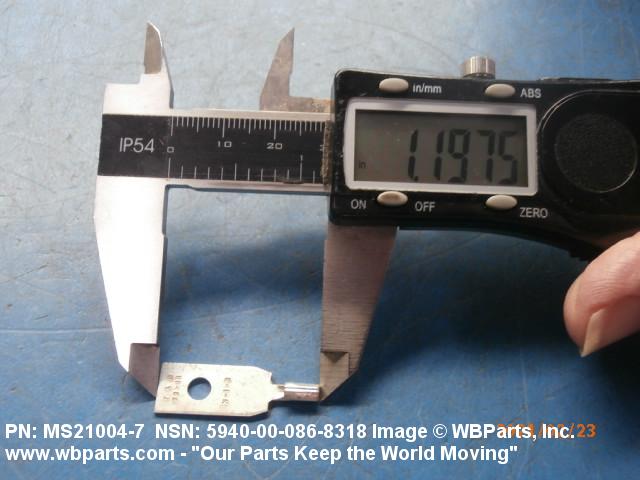

| OVERALL LENGTH | 1.250 INCHES |

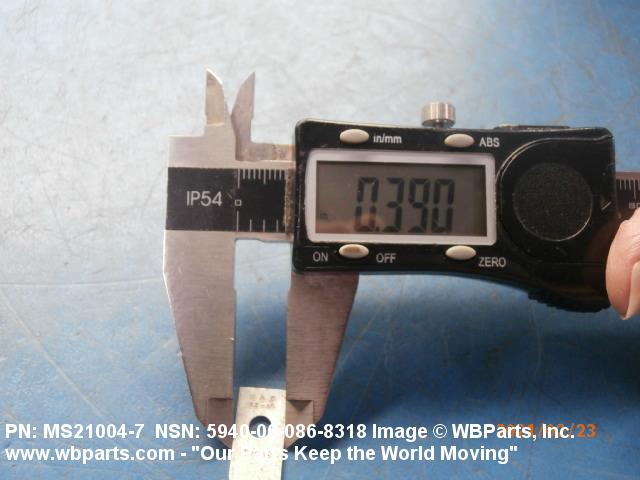

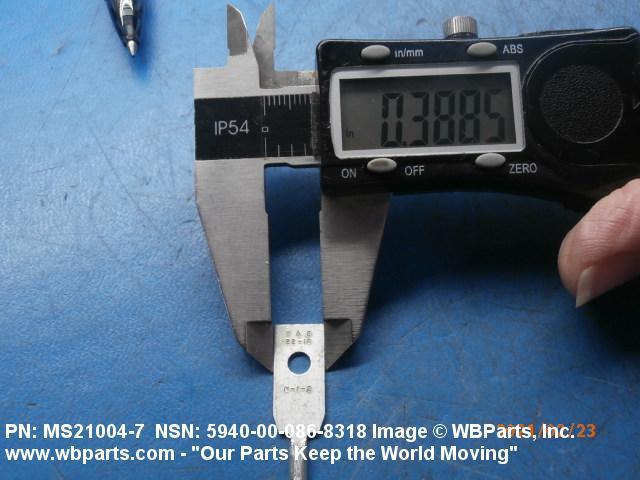

| OVERALL WIDTH | 0.390 INCHES |

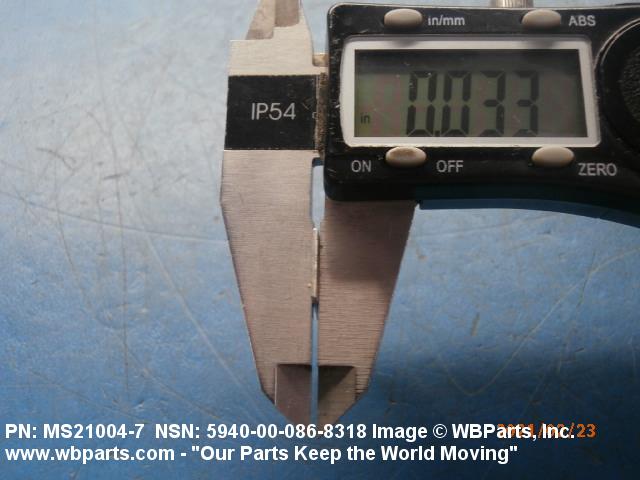

| MATERIAL THICKNESS | 0.035 INCHES |

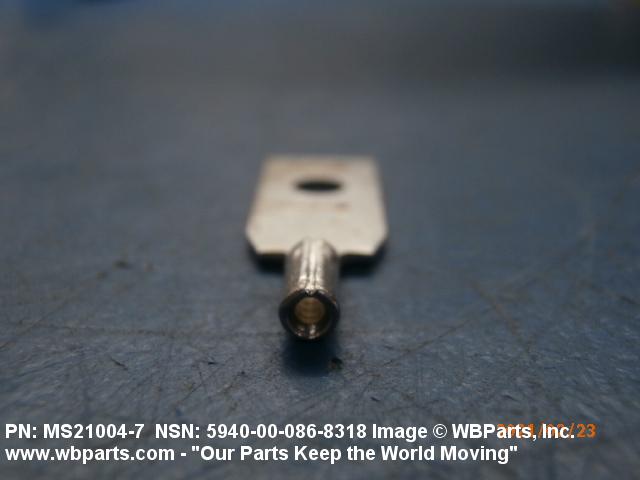

| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 16 AWG |
| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |

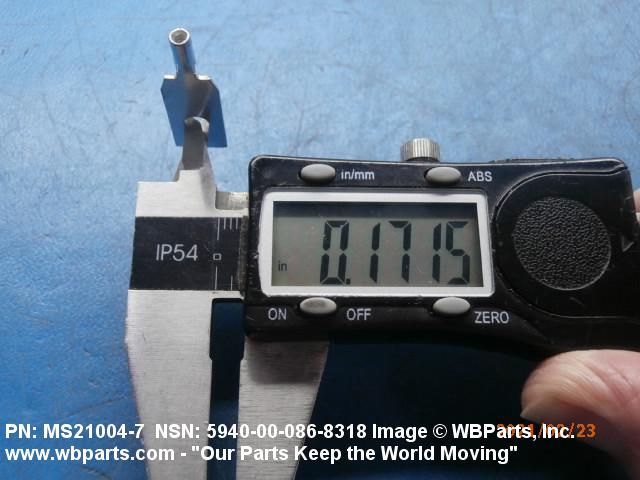

| MOUNTING HOLE DIAMETER | 0.173 INCHES |
| MOUNTING TONGUE WIDTH | 0.390 INCHES |
| MOUNTING FACILITY THICKNESS | 0.035 INCHES |

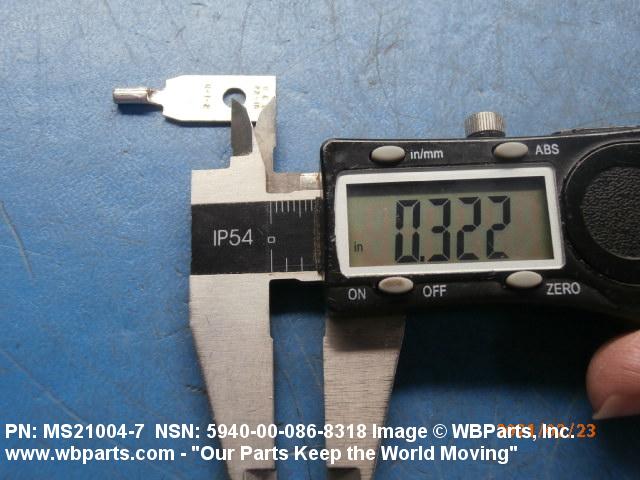

| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.321 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| NONDEFINITIVE SPEC/STD DATA | L-80 SHAPE AND 1-2 SIZE AND WTG TYPE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21004-7 |
