NSN 5935-01-604-6699 M28840/29CA1ABG3, M2884029CA1ABG3, MIL-DTL-28840/29
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-604-6699 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28840/29CA1ABG3, M2884029CA1ABG3, MIL-DTL-28840/29, MILDTL2884029, 5935-01-604-6699, 01-604-6699, 5935016046699, 016046699
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 APR 2012 | 01-604-6699 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-604-6699
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-604-6699
Technical Data | NSN 5935-01-604-6699
| Characteristic | Specifications |
|---|---|
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| THREAD QUANTITY PER INCH | 20 AND 10 |
| CABLE ENTRANCE DIAMETER | 0.188 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| COLOR | OLIVE DRAB |
| NOMINAL THREAD SIZE | 0.750 INCHES AND 0.750 INCHES |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| SHELL TYPE | SOLID |
| SHELL SURFACE TREATMENT | CADMIUM |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| MATING END QUANTITY | 1 |
| DISTANCE FROM CENTERLINE TO CABLE END | 3.062 INCHES MAXIMUM |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 5.728 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| SHELL MATERIAL | ALUMINUM ALLOY |
| THREAD CLASS | 2A AND 2B |
| BODY ANGLE IN DEG | 135.0 |
| BODY STYLE | ANGLE SHAPE W/CABLE CLAMP |
| PRECIOUS MATERIAL | GOLD |
| TEST DATA DOCUMENT | 81349-MIL-DTL-28840 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| OVERALL DIAMETER | 0.938 INCHES MAXIMUM |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| SPECIFICATION/STANDARD DATA | 81349-MIL-28840/29 GOVERNMENT SPECIFICATION |
| INSERT POSITION IN DEG | 0.0 AND 90.0 AND 145.0 AND 195.0 AND 252.0 |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |

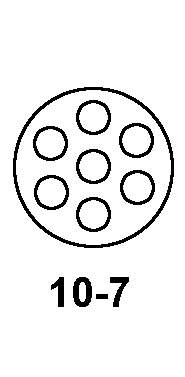

| CONTACT POSITION ARRANGEMENT STYLE | AHAB 10-7 SINGLE MATING END |
| SPECIAL FEATURES | CONTACTS PER M39029/84-509 |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
Restrictions/Controls & Freight Information | NSN 5935-01-604-6699
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-604-6699
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
