NSN 5935-01-603-0839 D38999/22AM, D3899922AM, MIL-DTL-38999/22
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-603-0839 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: D38999/22AM, D3899922AM, MIL-DTL-38999/22, MILDTL3899922, 5935-01-603-0839, 01-603-0839, 5935016030839, 016030839
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 2012 | 01-603-0839 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

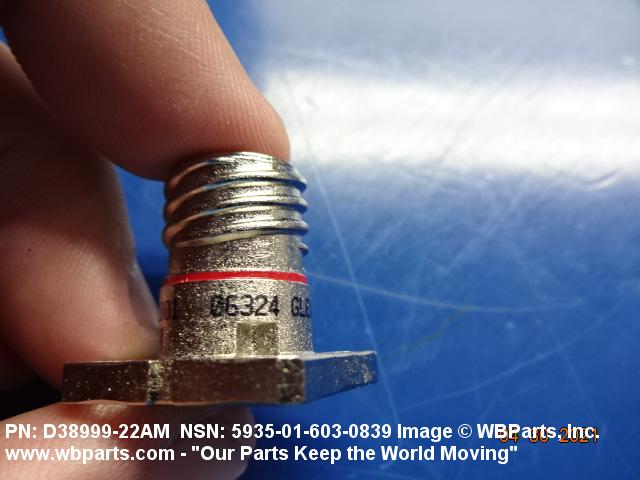

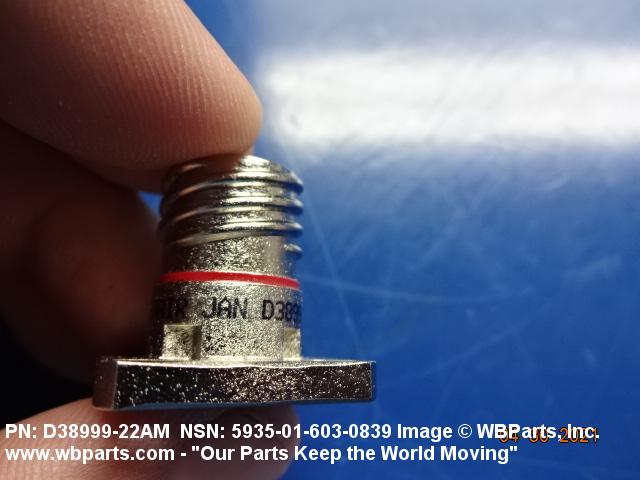

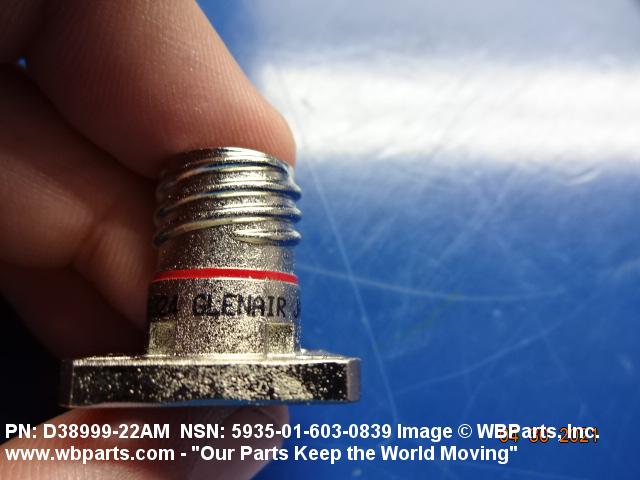

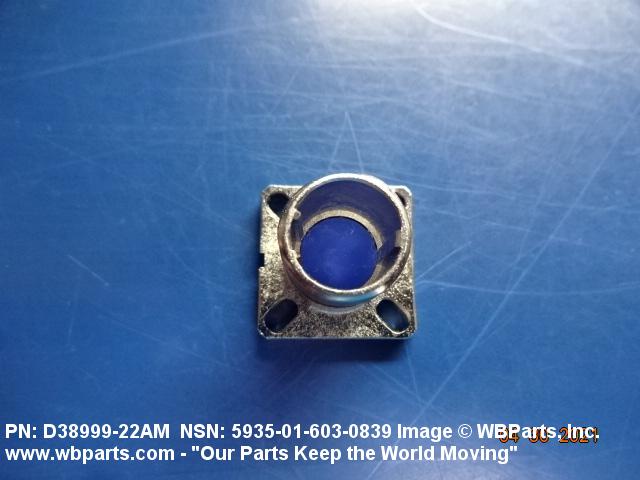

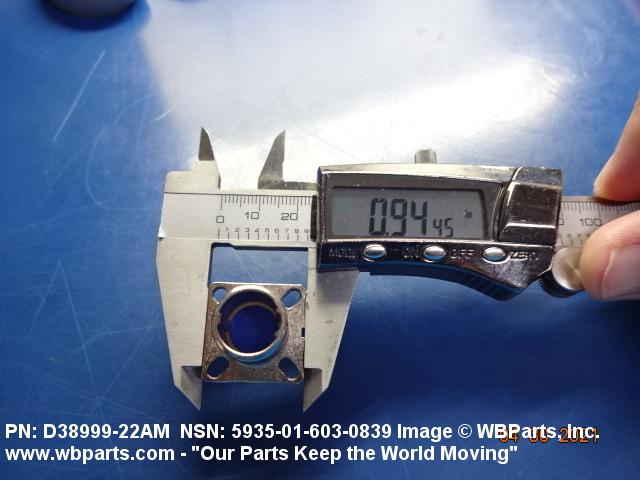

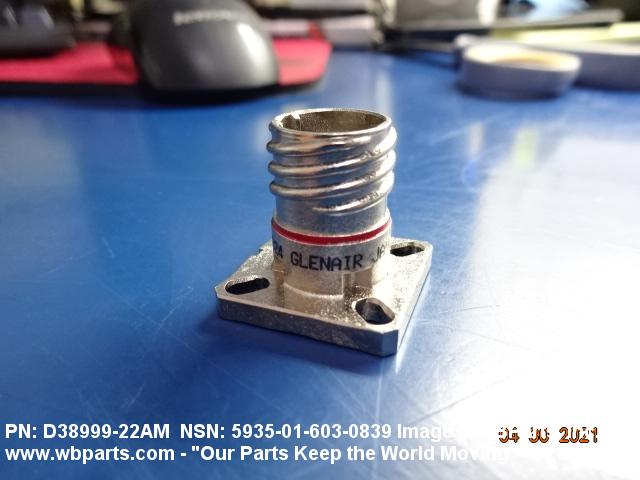

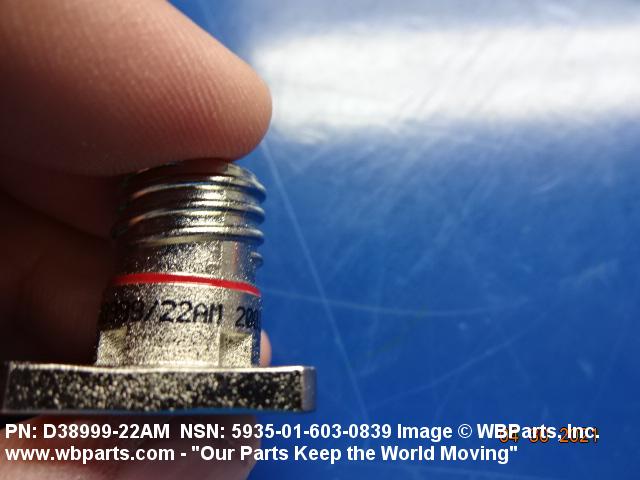

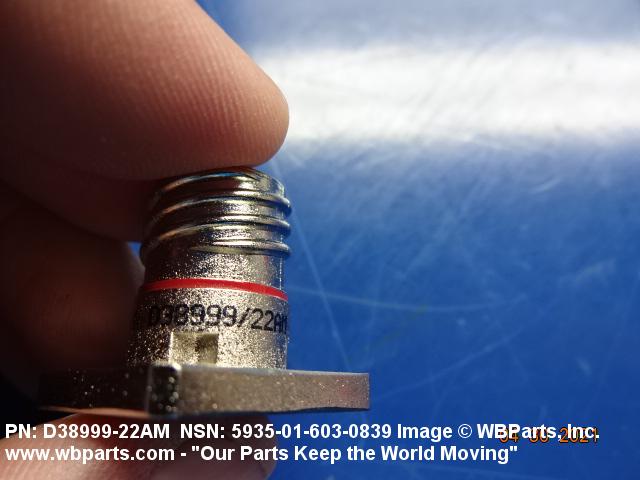

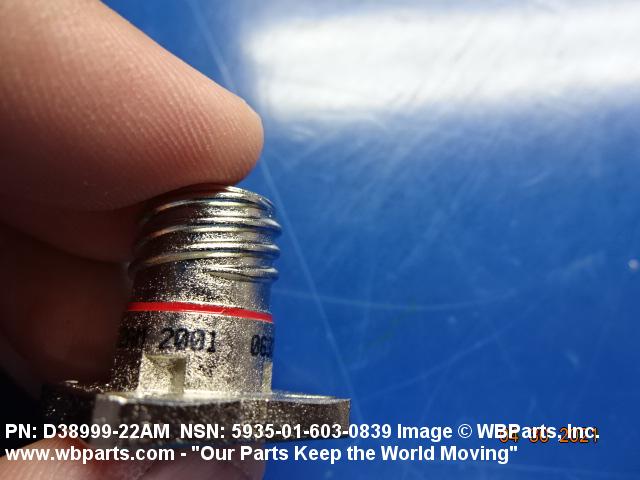

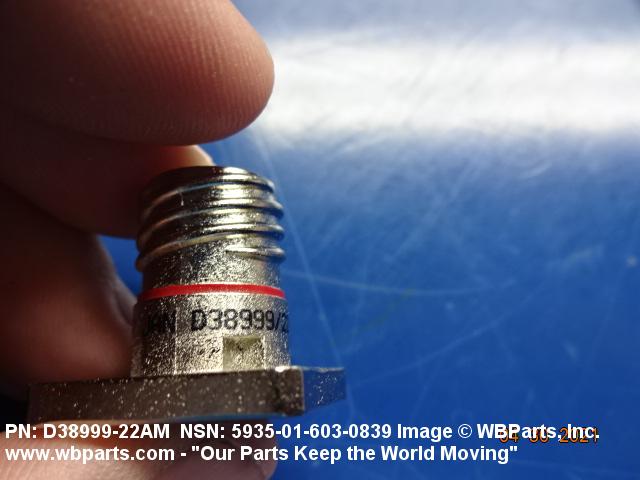

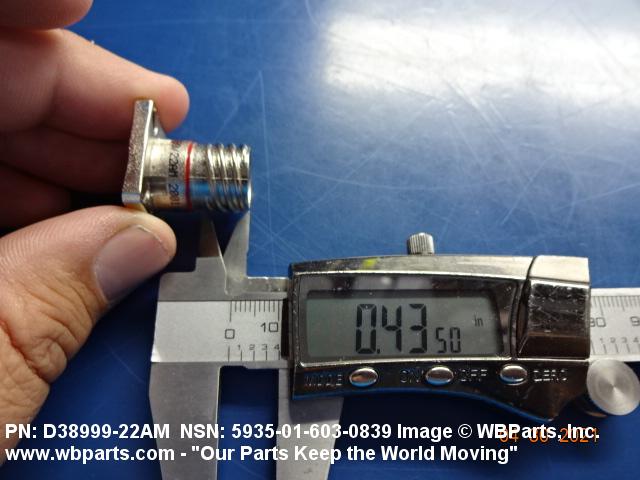

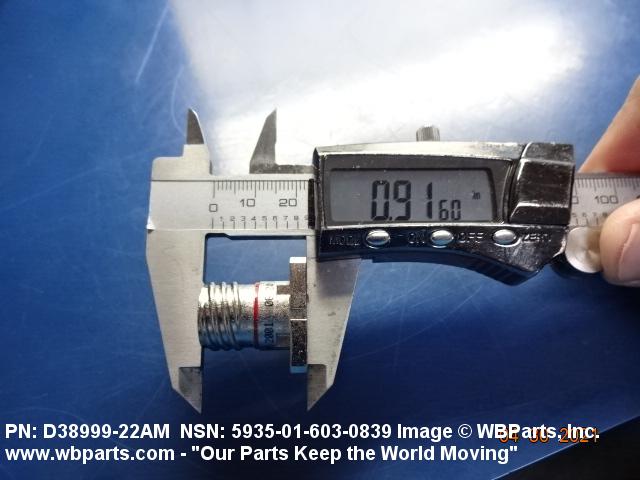

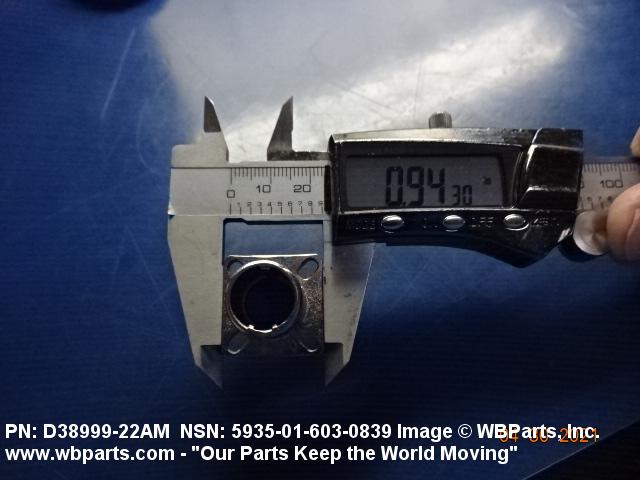

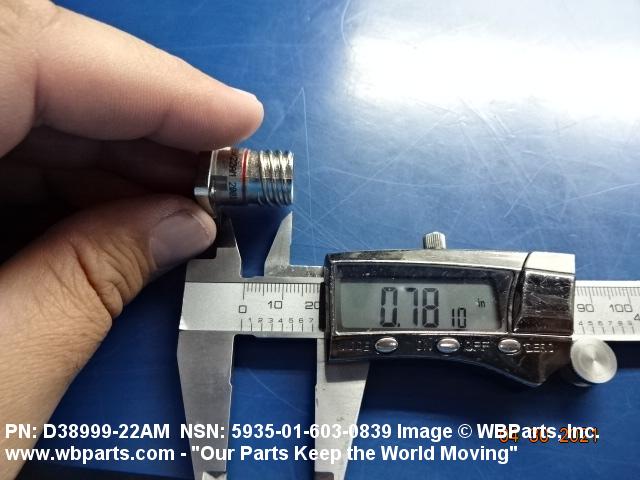

Drawings & Photos | NSN 5935-01-603-0839
Demand History | NSN 5935-01-603-0839
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-603-0839 | 2021-04-109 | 1 | United States |
| 5935-01-603-0839 | 2020-10-302 | 1 | DIBBS |
| 5935-01-603-0839 | 2013-03-65 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-603-0839
Related Products | NSN 5935-01-603-0839
Technical Data | NSN 5935-01-603-0839
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SHELL SURFACE TREATMENT | NICKEL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 15.1 MILLIMETERS MINIMUM AND 18.3 MILLIMETERS MAXIMUM |
| SHELL TYPE | SOLID |
| OVERALL LENGTH | 23.2 MILLIMETERS NOMINAL |
| MATING END QUANTITY | 1 |
| OVERALL HEIGHT | 23.8 MILLIMETERS NOMINAL |
| END ITEM IDENTIFICATION | F15-C-D FUSEL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 15.1 MILLIMETERS MINIMUM AND 18.3 MILLIMETERS MAXIMUM |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING |
| THREAD CLASS | 2A |
| SHELL MATERIAL | PLASTIC |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 19.5 MILLIMETERS NOMINAL |
| THREAD SERIES DESIGNATOR | SPECIAL ACME |
| OVERALL WIDTH | 23.8 MILLIMETERS NOMINAL |
| NOMINAL THREAD SIZE | 0.625 INCHES |
Restrictions/Controls & Freight Information | NSN 5935-01-603-0839
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-603-0839
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
