NSN 5935-01-599-2820 12059168, 12417663, 01-599-2820
Product Details | ELECTRICAL CONNECT END SEAL PLUG
5935-01-599-2820 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.
Part Alternates: 12059168, 12417663, 5935-01-599-2820, 01-599-2820, 5935015992820, 015992820
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 2011 | 01-599-2820 | 27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR ) |

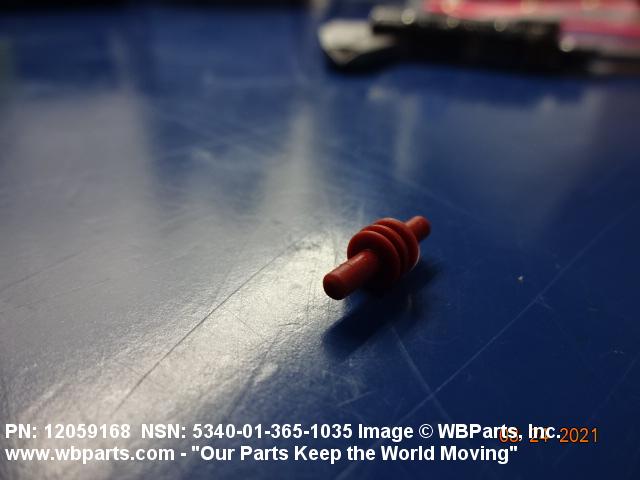

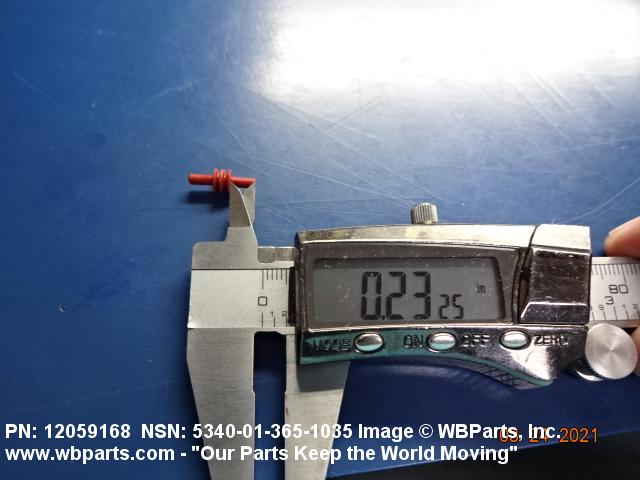

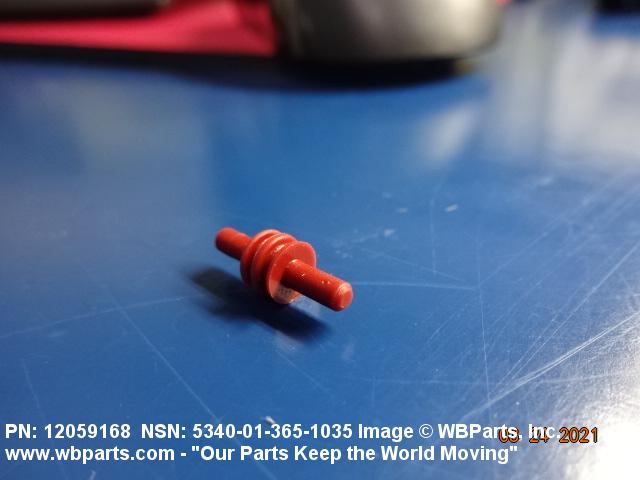

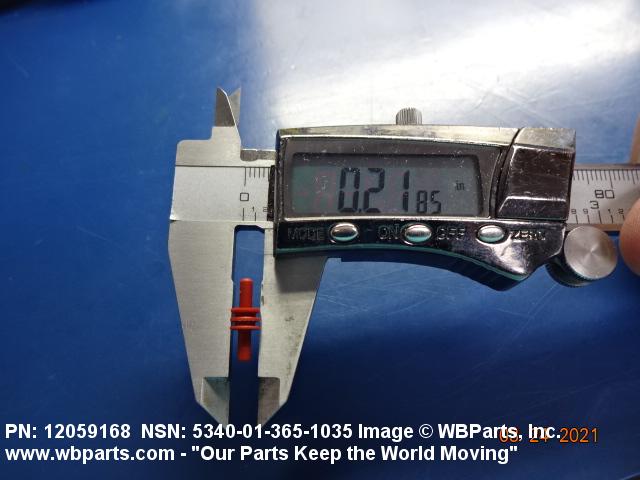

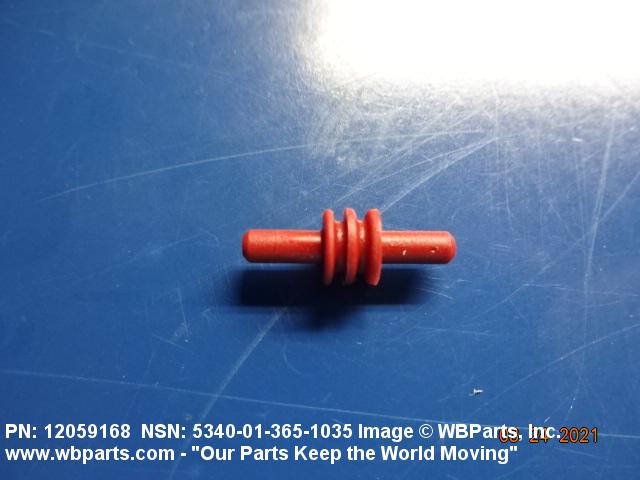

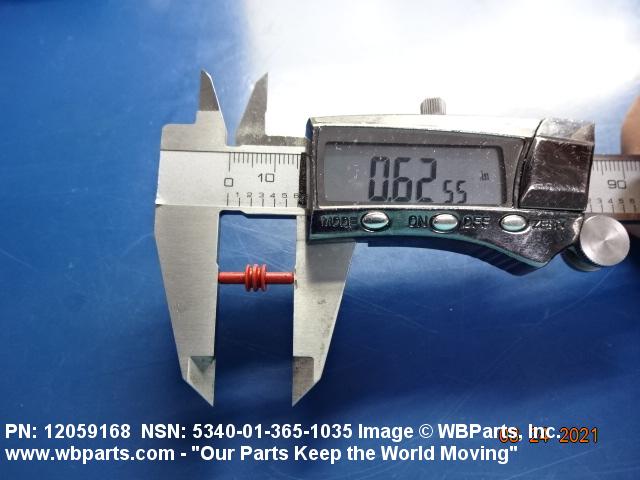

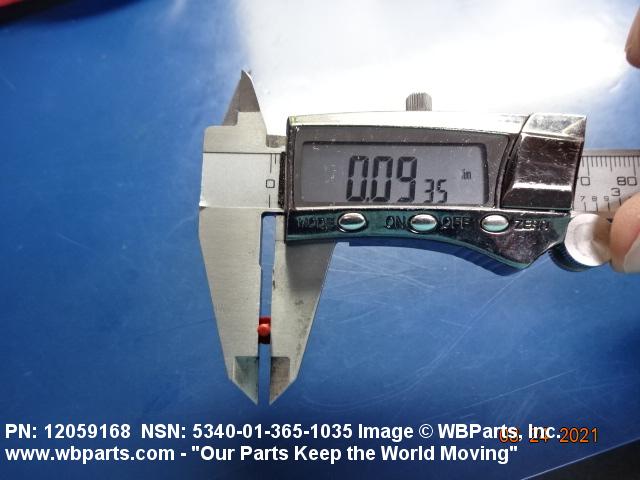

Drawings & Photos | NSN 5935-01-599-2820
Demand History | NSN 5935-01-599-2820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12059168 | 2021-04-102 | 1750 | United States |
| 12059168 | 2021-03-77 | 50000 | United States |
| 5935-01-599-2820 | 2015-09-258 | 3125 | DIBBS |
| 5935-01-599-2820 | 2015-07-211 | 3125 | DIBBS |
| 5935-01-599-2820 | 2013-01-14 | 625 | DIBBS |
Cross Reference | NSN 5935-01-599-2820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12059168 | 1V6F3 | DPH HOLDINGS CORPORATION DBA DELPHI |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-599-2820
Related Products | NSN 5935-01-599-2820
Technical Data | NSN 5935-01-599-2820
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | 1740-01-575-5662 |
| BODY DIAMETER | 2.5 MAJOR INCHES |
| SPECIAL FEATURES | NEITHER END IS TAPERED |
| OVERALL DIAMETER | 5.75 MILLIMETERS NOMINAL |
| OVERALL LENGTH | 16.0 MILLIMETERS NOMINAL |
| STYLE DESIGNATOR | STRAIGHT SHAPE SINGLE BOSS |
| EYE INSIDE DIAMETER | 5.2 MILLIMETERS NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | DRAWING: TAXI SEAL CONN CAVITY PLUG; CABLE CAVITY PLUG - DARK RED |
Restrictions/Controls & Freight Information | NSN 5935-01-599-2820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-599-2820
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
