NSN 5935-01-583-6817 M83723/87K2255N, M8372387K2255N, 01-583-6817

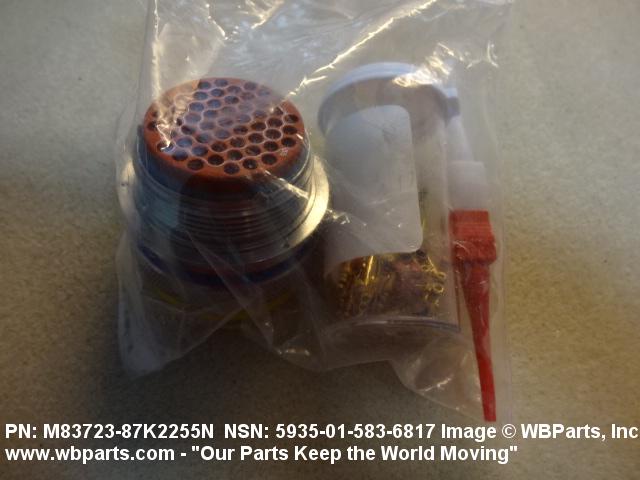

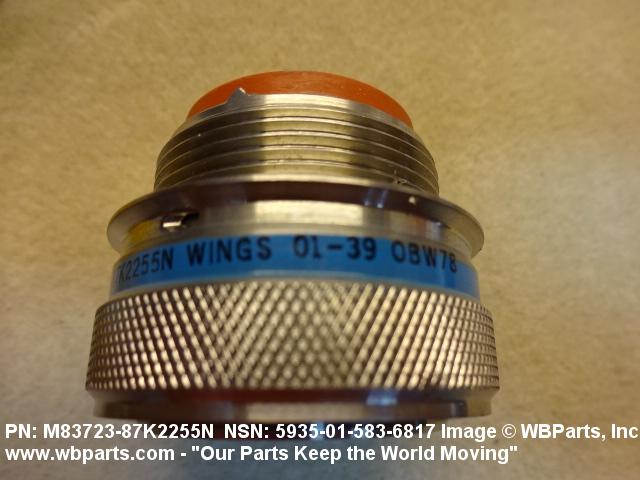

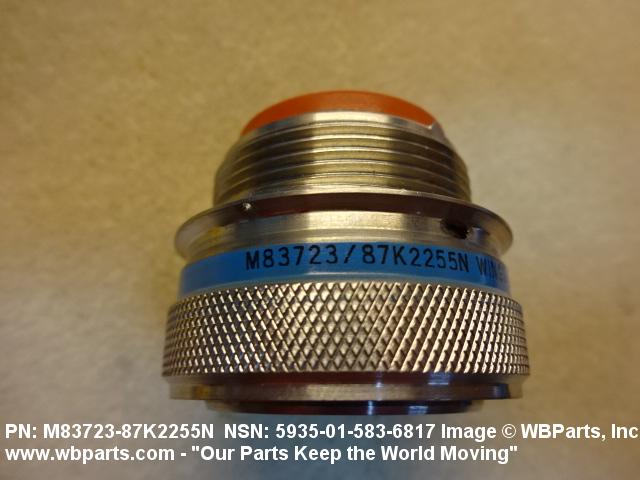

Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-583-6817 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M83723/87K2255N, M8372387K2255N, 5935-01-583-6817, 01-583-6817, 5935015836817, 015836817
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 APR 2010 | 01-583-6817 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Demand History | NSN 5935-01-583-6817
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5935-01-583-6817 | 2022-10-290 | 5 | DIBBS |
5935-01-583-6817 | 2020-07-188 | 1 | DIBBS |
5935-01-583-6817 | 2017-08-233 | 2 | United States |
5935-01-583-6817 | 2016-07-200 | 2 | DIBBS |
5935-01-583-6817 | 2016-07-193 | 1 | DIBBS |
5935-01-583-6817 | 2016-07-188 | 2 | DIBBS |
5935-01-583-6817 | 2016-06-181 | 1 | DIBBS |
Cross Reference | NSN 5935-01-583-6817
Part Number | Cage Code | Manufacturer |
---|---|---|
M83723/87K2255N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-01-583-6817
Technical Data | NSN 5935-01-583-6817
Characteristic | Specifications |
---|---|
SPECIFICATION/STANDARD DATA | 81349-81349-MIL-DTL-83273 GOVERNMENT SPECIFICATION |
MATING END QUANTITY | 1 |
END ITEM IDENTIFICATION | AFT FUSELAGE |

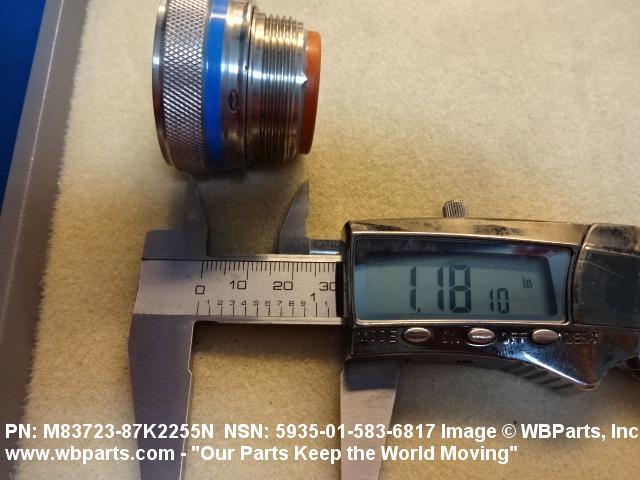

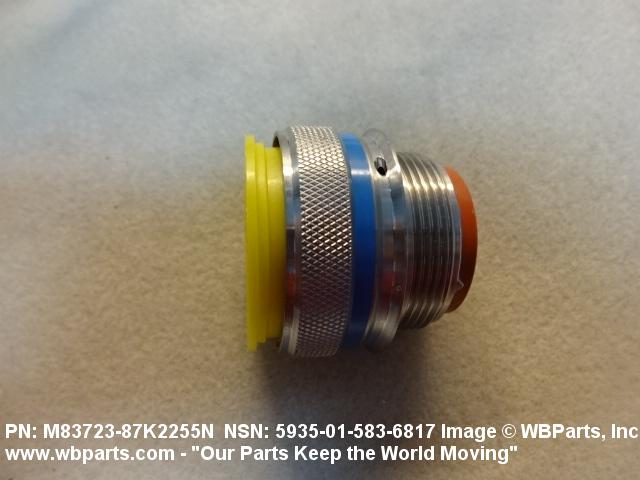

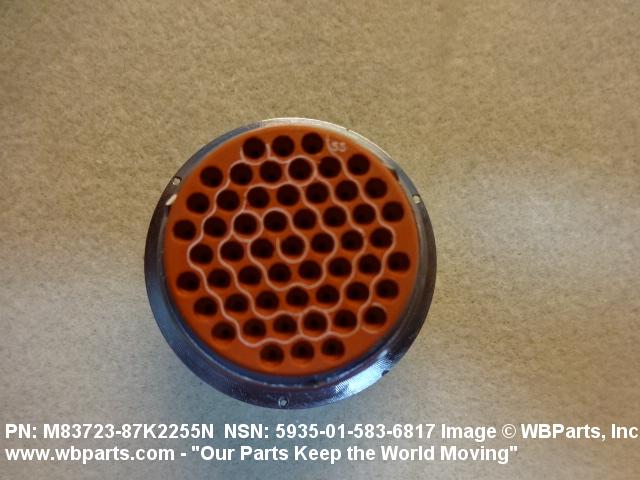

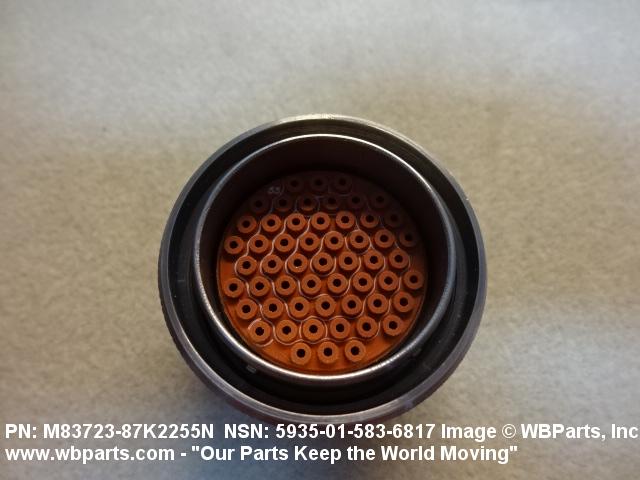

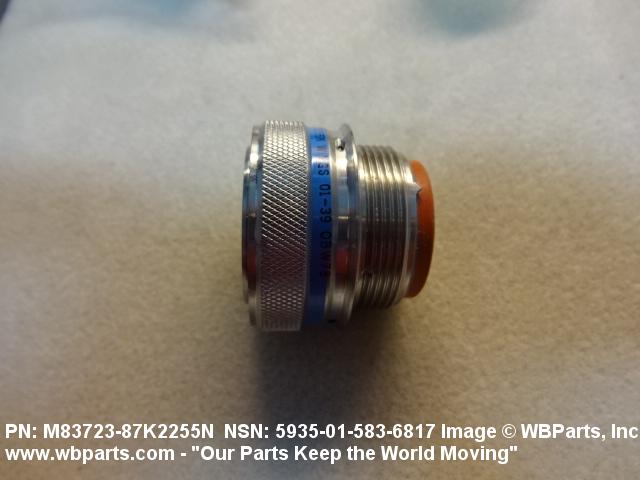

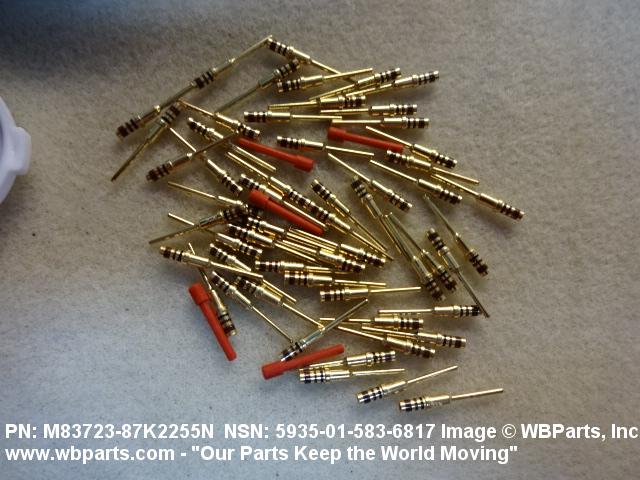

OVERALL LENGTH | 1.180 INCHES MAXIMUM |
CONTACT POSITION ARRANGEMENT STYLE | 22-55 SINGLE MATING END |
TERMINAL LOCATION | FRONT SINGLE MATING END SINGLE CONTACT GROUPING |
TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
BODY STYLE | STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
PART NAME ASSIGNED BY CONTROLLING AGENCY | CONNECTOR,PLUG |
INCLUDED CONTACT QUANTITY | 55 SINGLE MATING END SINGLE CONTACT GROUPING |

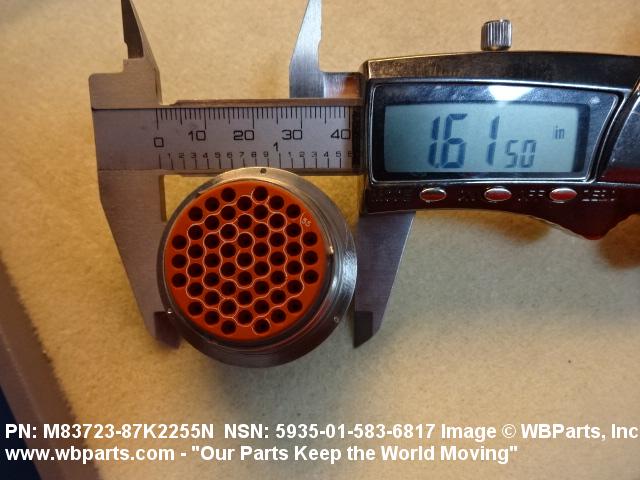

OVERALL DIAMETER | 1.627 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-01-583-6817
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
