NSN 5935-01-581-1524 BACC63CB1415P6, BACC63CB14-15P6, 01-581-1524
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-581-1524 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: BACC63CB1415P6, BACC63CB14-15P6, 5935-01-581-1524, 01-581-1524, 5935015811524, 015811524
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JAN 2010 | 01-581-1524 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

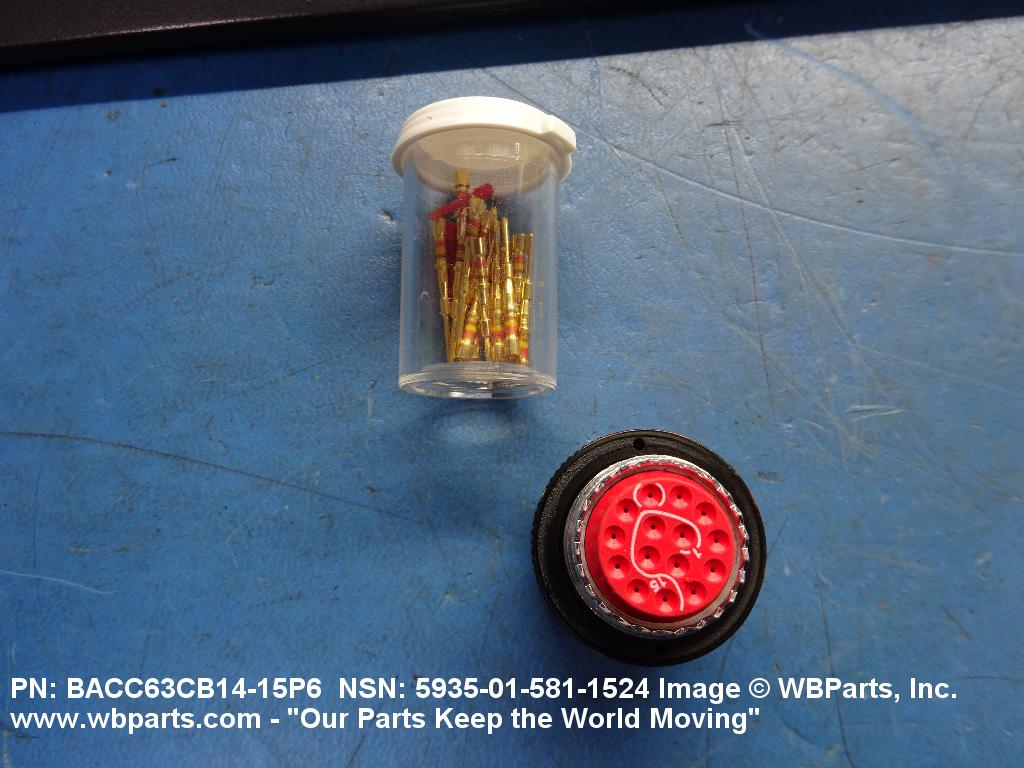

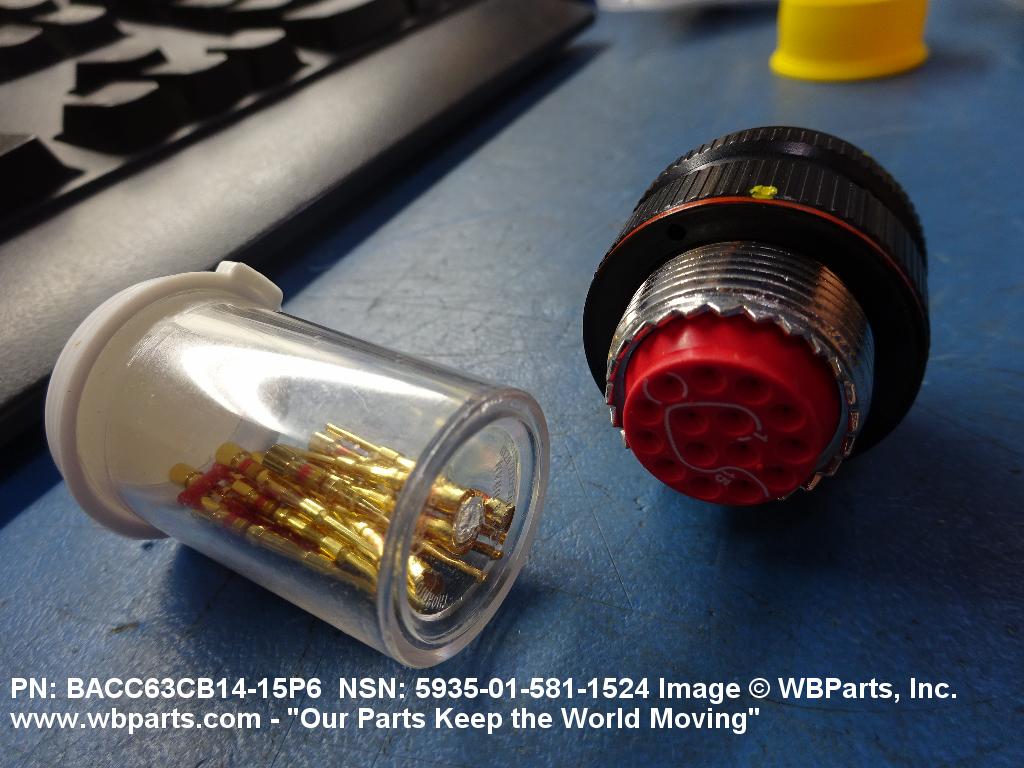

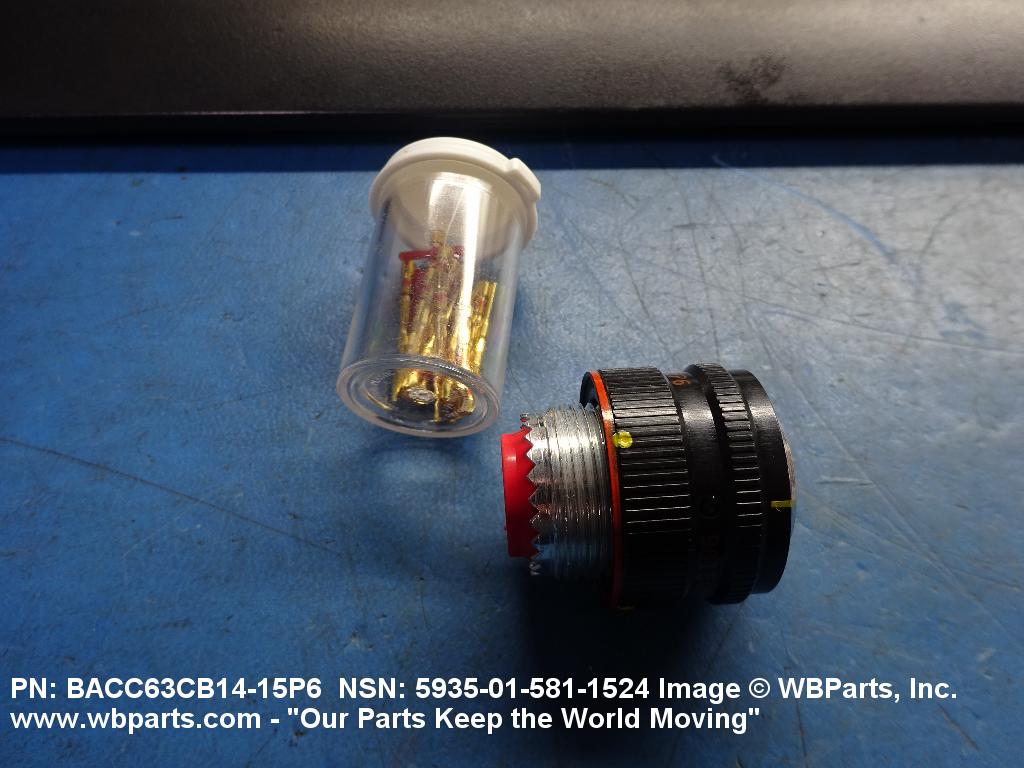

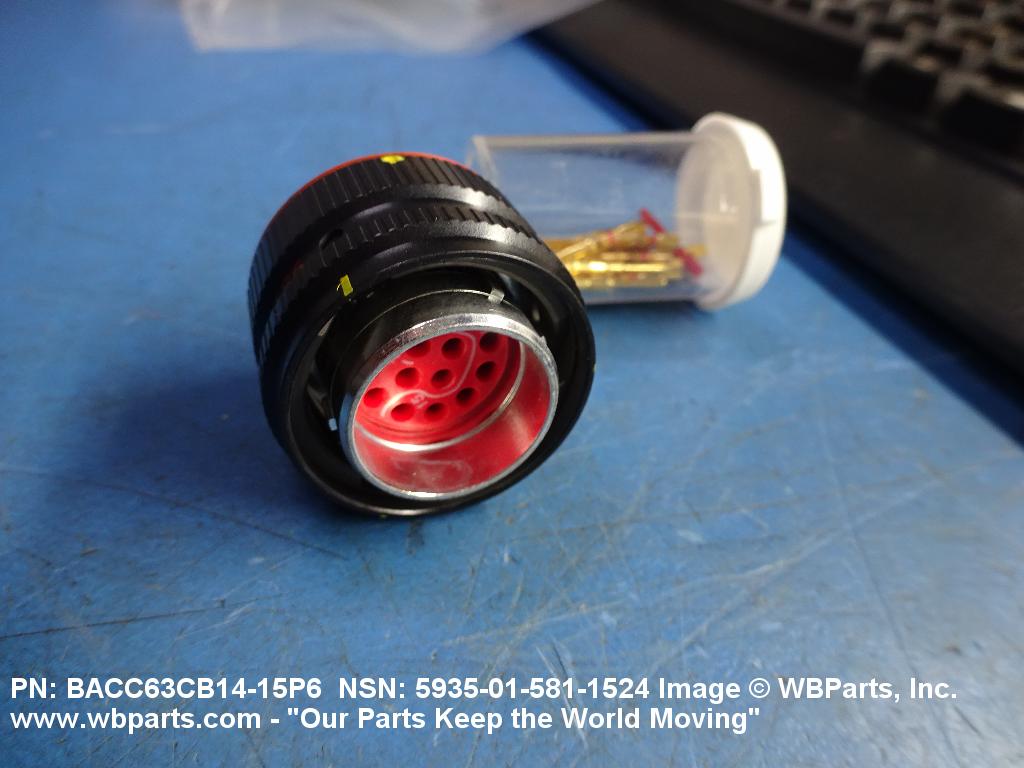

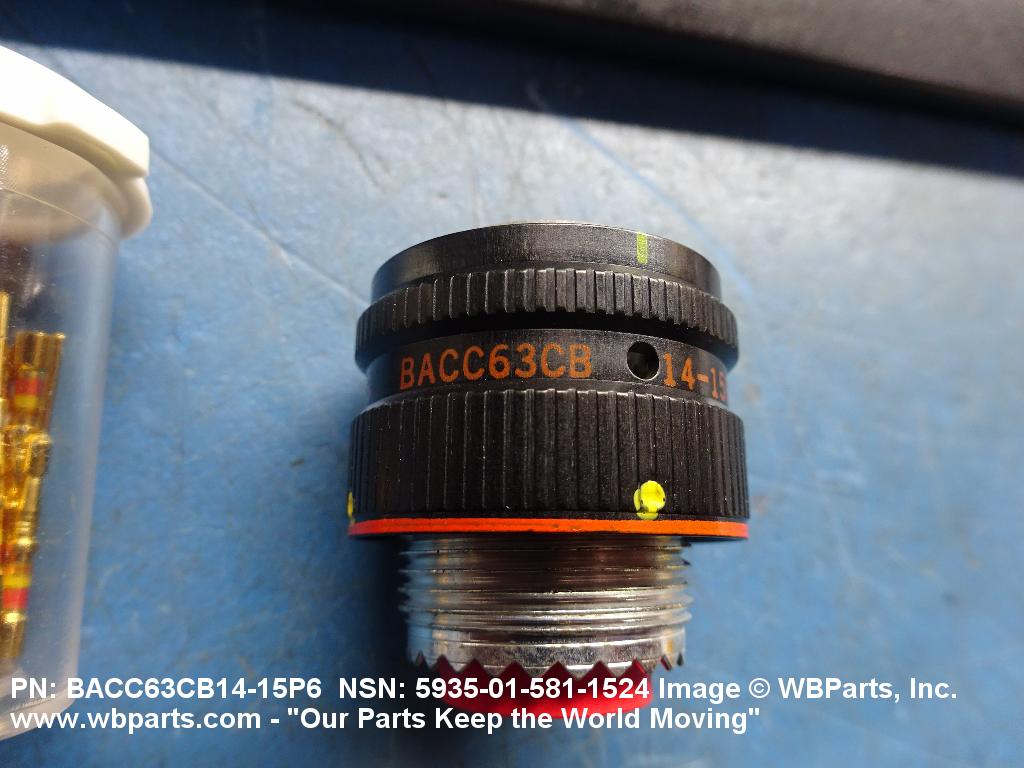

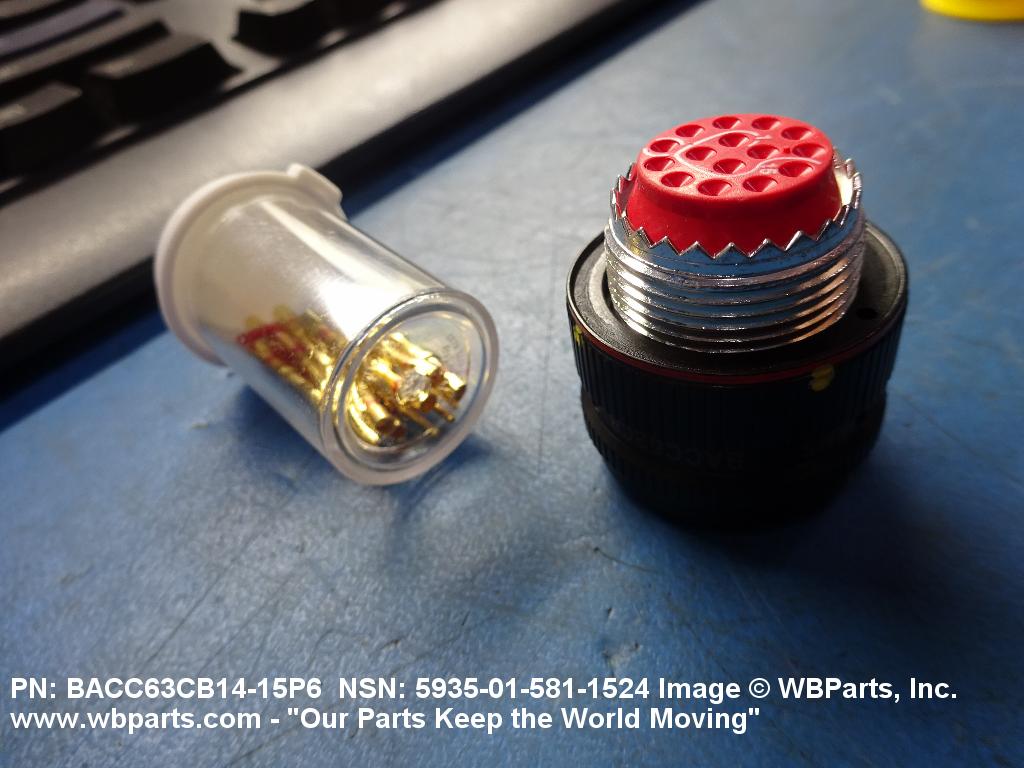

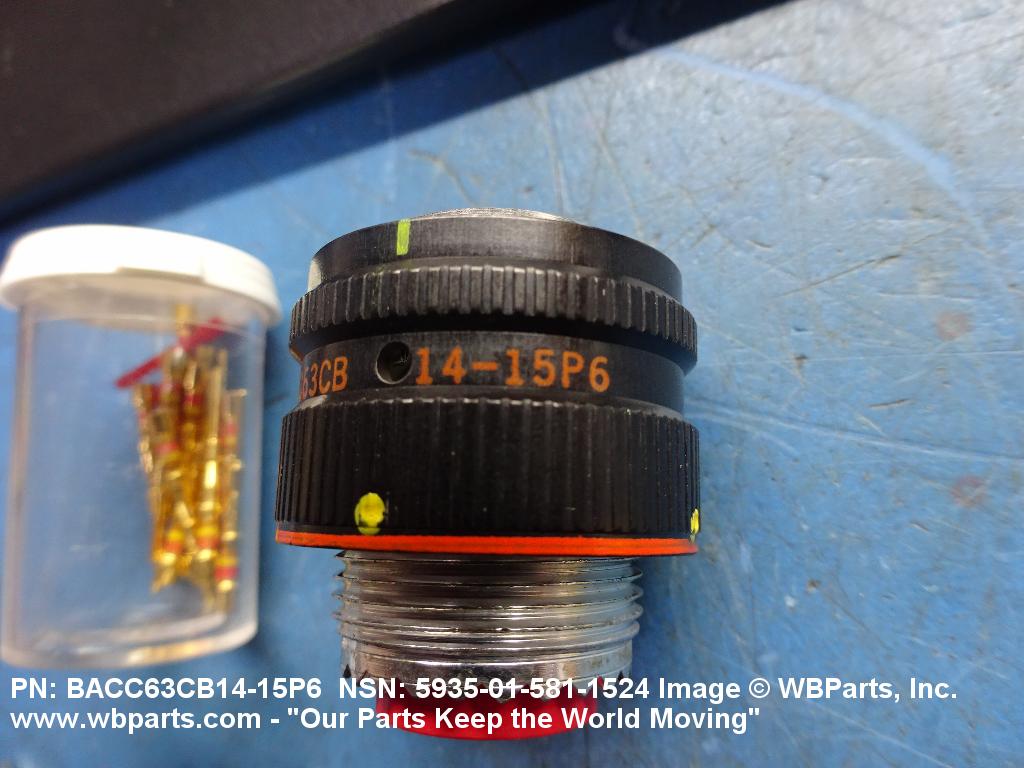

Drawings & Photos | NSN 5935-01-581-1524
Demand History | NSN 5935-01-581-1524
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACC63CB1415P6 | 2022-10-290 | 4 | United States |
| 5935-01-581-1524 | 2022-10-285 | 4 | United States |
Cross Reference | NSN 5935-01-581-1524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC63CB14-15P6 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-581-1524
Technical Data | NSN 5935-01-581-1524
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |

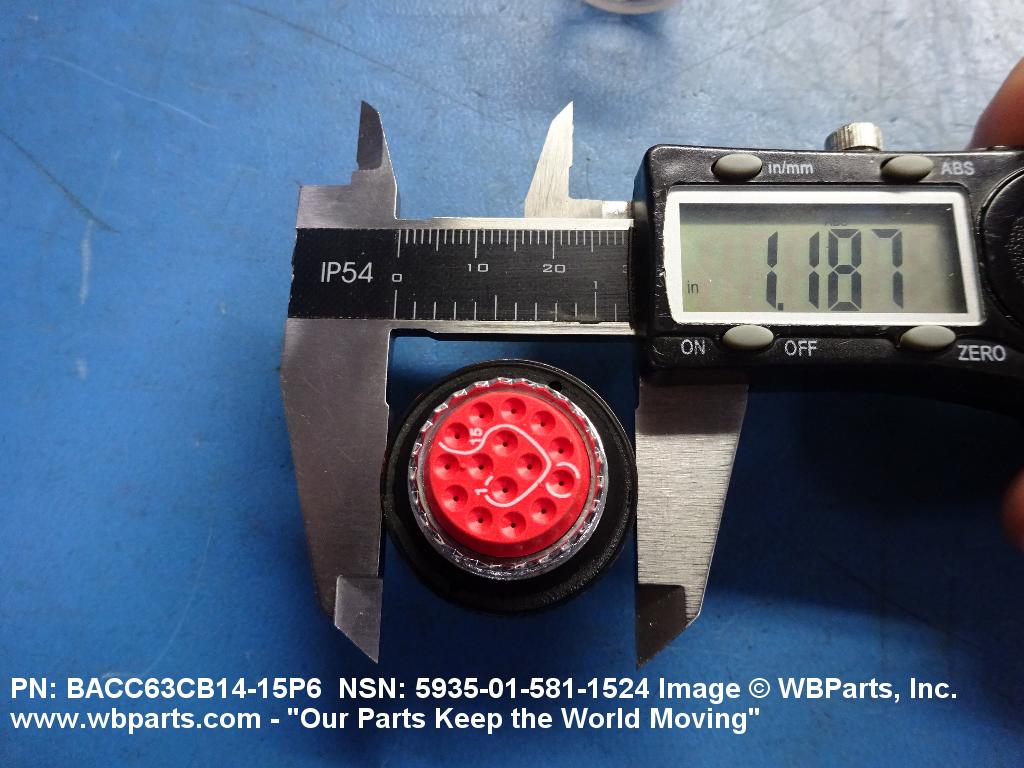

| OVERALL DIAMETER | 1.194 INCHES MAXIMUM |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| SHELL TYPE | SOLID |
| MATING END QUANTITY | 1 |
| THREAD SERIES DESIGNATOR | UNF |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |

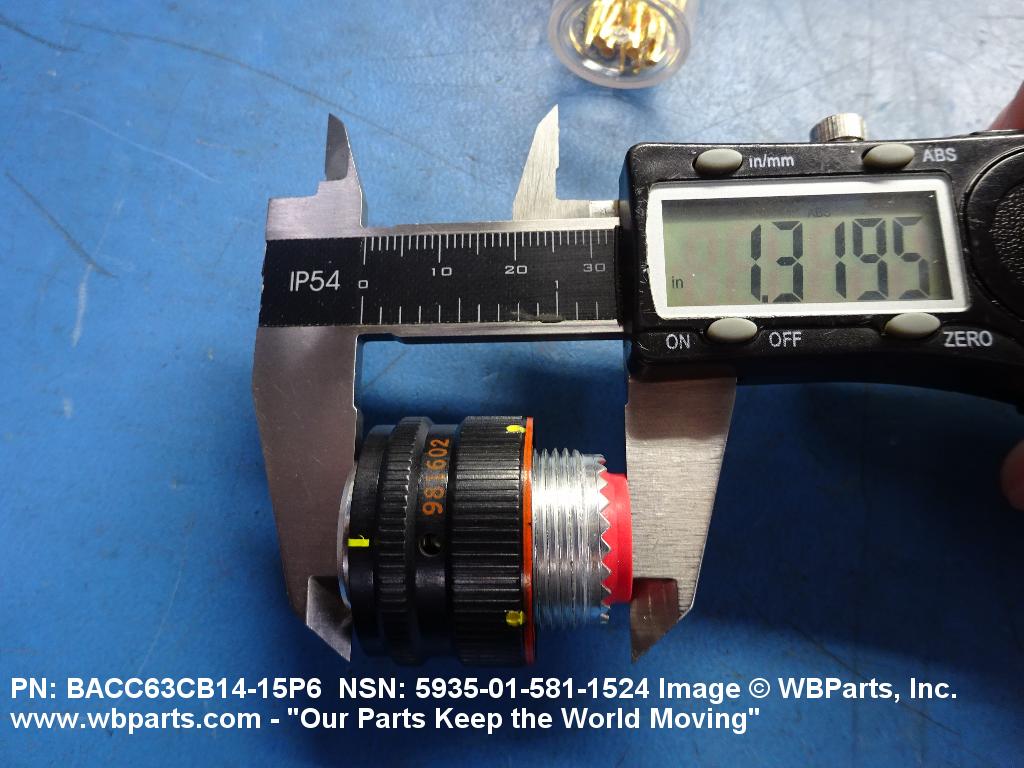

| OVERALL LENGTH | 1.421 INCHES MAXIMUM |
| CONTACT POSITION ARRANGEMENT STYLE | 14-15 SINGLE MATING END |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| INSERT POSITION IN DEG | 0.0 |
| BODY STYLE | STRAIGHT SHAPE |
| THREAD QUANTITY PER INCH | 20 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | AMS QQ-A-225/10 FED SPEC SINGLE MATERIAL RESPONSE |
| TERMINAL TYPE | COMPLIANT PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT QUANTITY | 15 SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-01-581-1524
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
