NSN 5935-01-566-1258 AL5NFPS, AL5NF-PS, AL5NFPSA
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-566-1258 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: AL5NFPS, AL5NF-PS, AL5NFPSA, AL5NF-PSA , 5935-01-566-1258, 01-566-1258, 5935015661258, 015661258
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 AUG 2008 | 01-566-1258 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

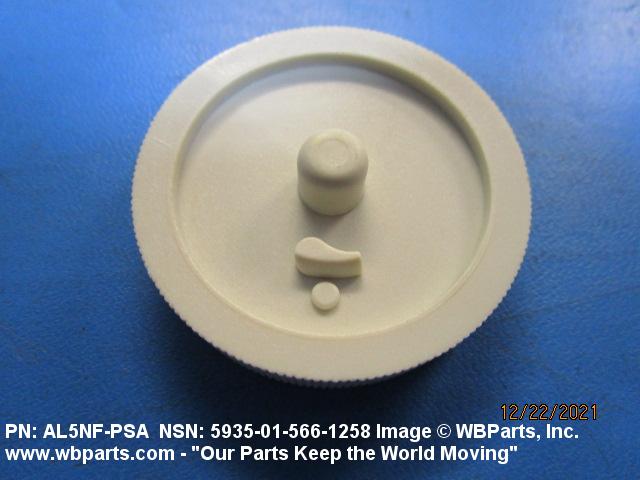

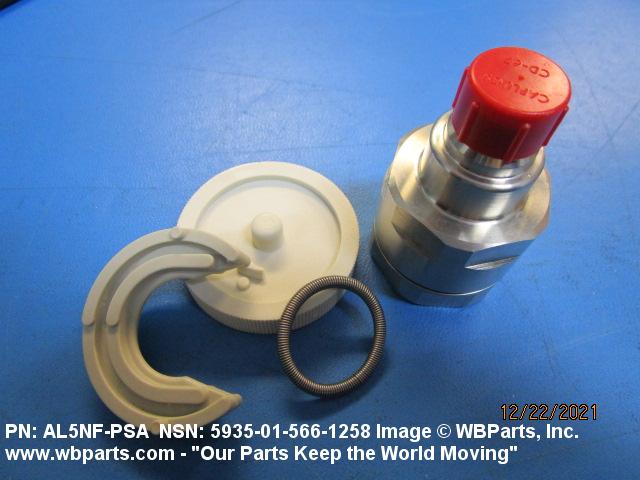

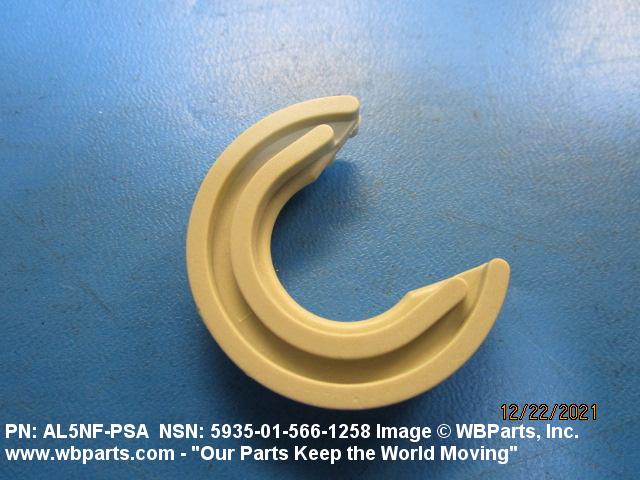

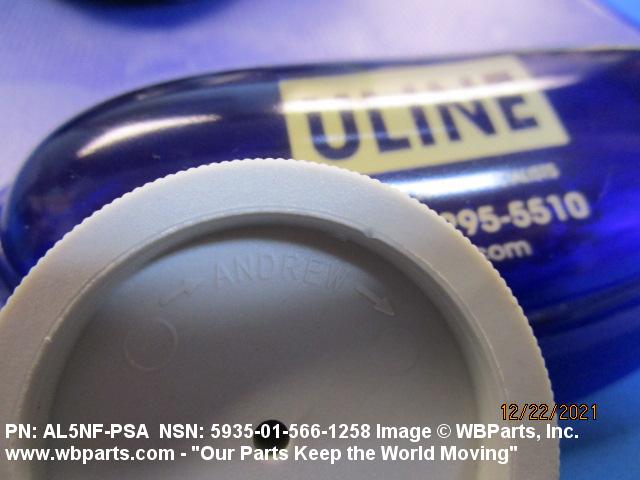

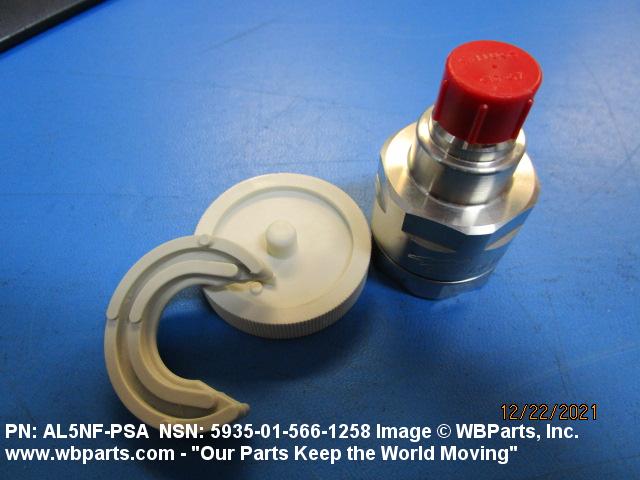

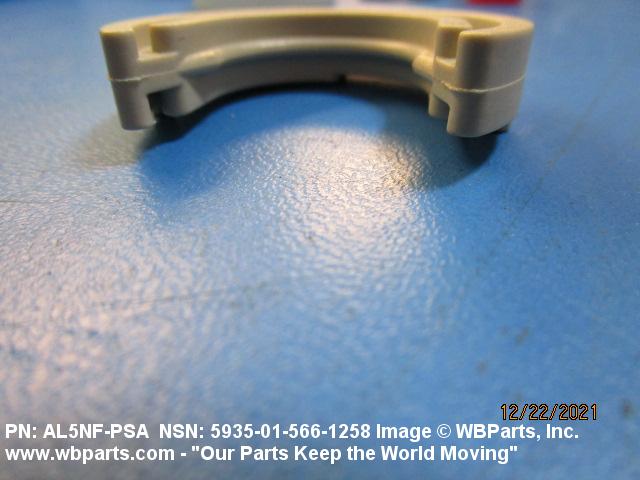

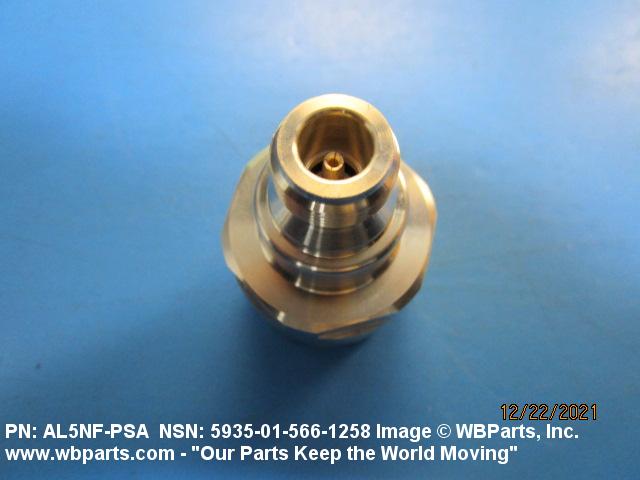

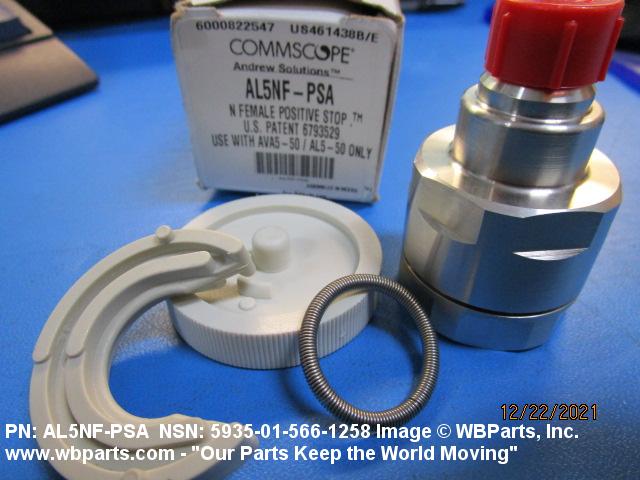

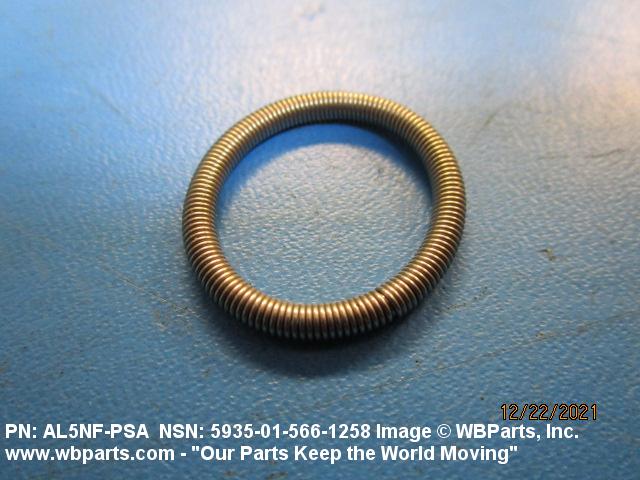

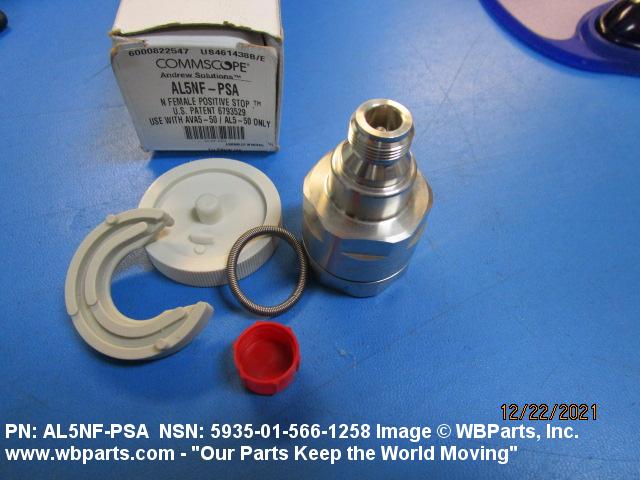

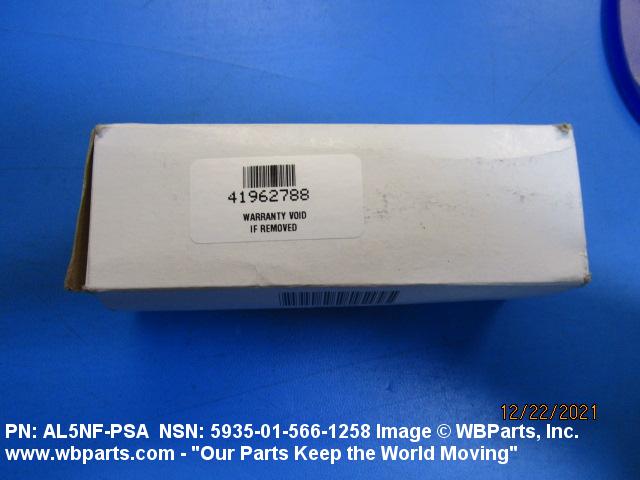

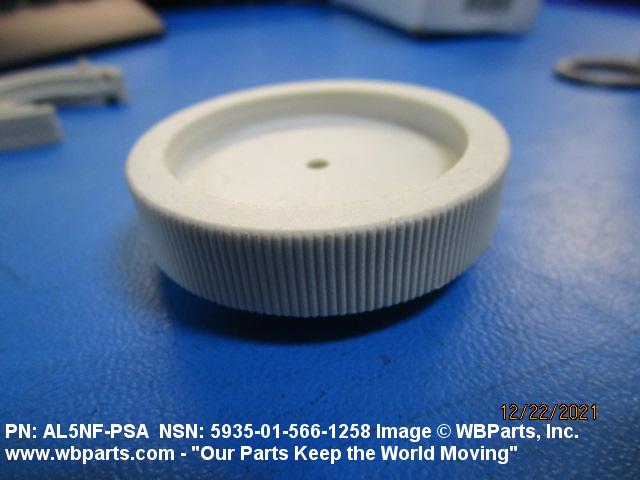

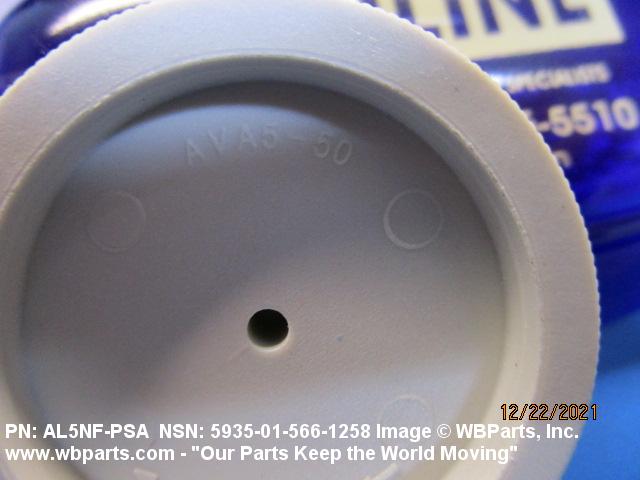

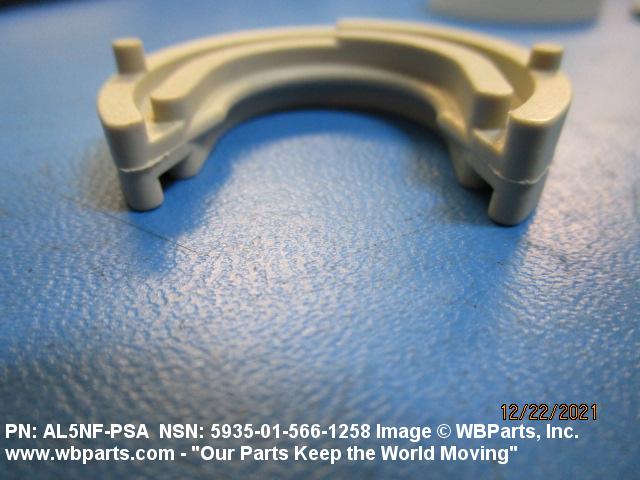

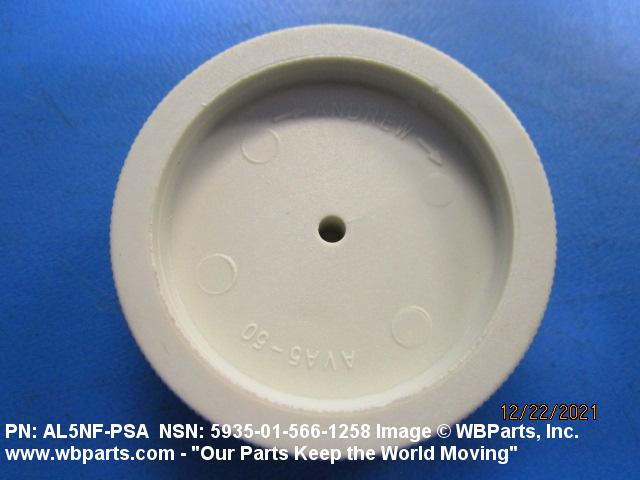

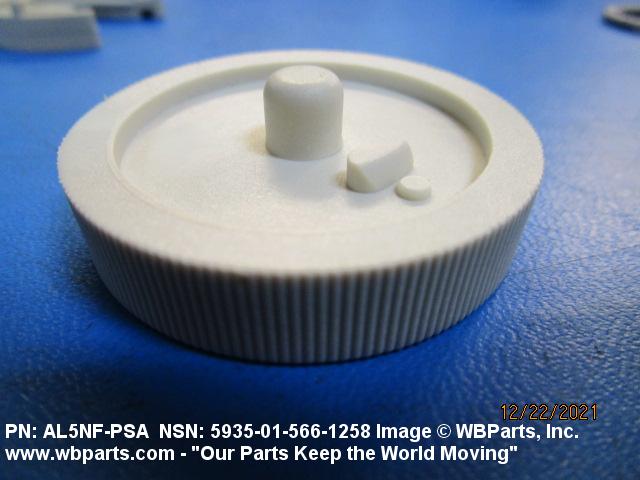

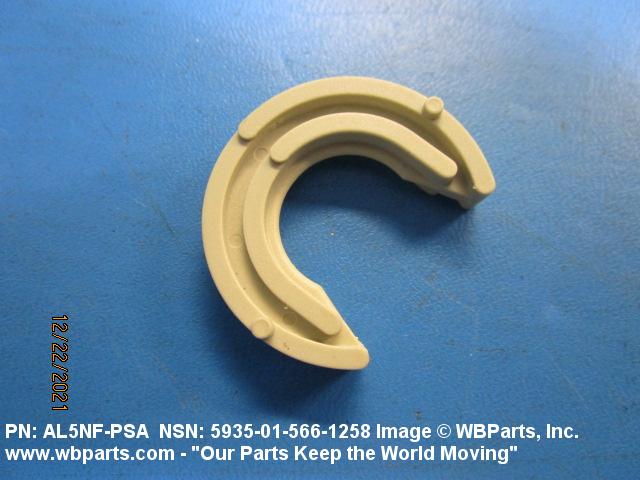

Drawings & Photos | NSN 5935-01-566-1258
Demand History | NSN 5935-01-566-1258
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AL5NFPSA | 2022-01-28 | 1 | United States |
| AL5NFPSA | 2021-12-337 | 1 | us |
| AL5NFPSA | 2016-10-295 | 8 | us |
| 5935-01-566-1258 | 2012-09-254 | 6 | UK |
| AL5NFPS | 2012-09-254 | 6 | UK |
Cross Reference | NSN 5935-01-566-1258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AL5NF-PS | 84147 | ANDREW LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-566-1258
Technical Data | NSN 5935-01-566-1258
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2N STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 78.8 MILLIMETERS NOMINAL |
| OVERALL DIAMETER | 37.2 MILLIMETERS NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.975 INCHES NOMINAL |
| MATING END QUANTITY | 2 |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND VIBRATION RESISTANT AND THERMAL SHOCK RESISTANT |
| SPECIAL FEATURES | IMPEDANCE 50 OHM; INTERFACE N FEMALE; TYPE N FEMALE POSITIVE STOP FOR 7/8 IN AL5-50 AND AVA5-50 CABLE |
Restrictions/Controls & Freight Information | NSN 5935-01-566-1258
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
