NSN 5935-01-545-9731 TC205TMRALW, TC-205-TM-RALW, 01-545-9731
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-545-9731 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: TC205TMRALW, TC-205-TM-RALW, 5935-01-545-9731, 01-545-9731, 5935015459731, 015459731
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 NOV 2006 | 01-545-9731 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-545-9731
Cross Reference | NSN 5935-01-545-9731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TC-205-TM-RALW | 68999 | TIMES MICROWAVE SYSTEMS, INC. DIV TIMES MICROWAVE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-545-9731
Technical Data | NSN 5935-01-545-9731
| Characteristic | Specifications |
|---|---|

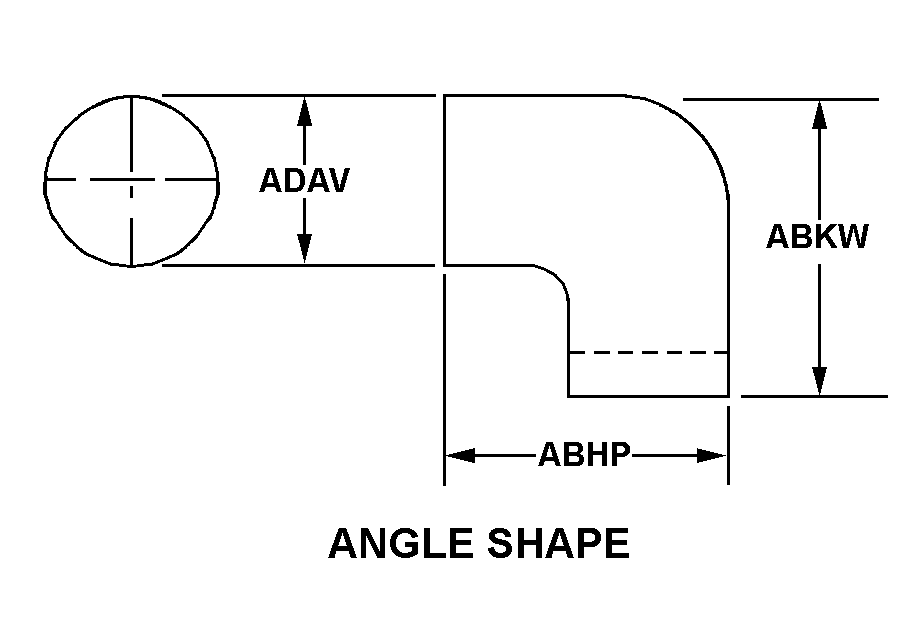

| BODY STYLE | 25C ANGLE SHAPE |
| OVERALL LENGTH | 1.144 INCHES NOMINAL |
| OVERALL HEIGHT | 1.230 INCHES NOMINAL |
| OVERALL DIAMETER | 0.156 INCHES NOMINAL |
| MATING END QUANTITY | 2 |
| III END ITEM IDENTIFICATION | HELICOPTER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TNC MALE RIGHT ANGLE |
Restrictions/Controls & Freight Information | NSN 5935-01-545-9731
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
