NSN 5935-01-534-7915 15716512, 1571651-2, 01-534-7915
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-534-7915 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 15716512, 1571651-2, 5935-01-534-7915, 01-534-7915, 5935015347915, 015347915
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 NOV 2005 | 01-534-7915 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-534-7915
Cross Reference | NSN 5935-01-534-7915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1571651-2 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-534-7915
Related Products | NSN 5935-01-534-7915
Technical Data | NSN 5935-01-534-7915
| Characteristic | Specifications |
|---|---|

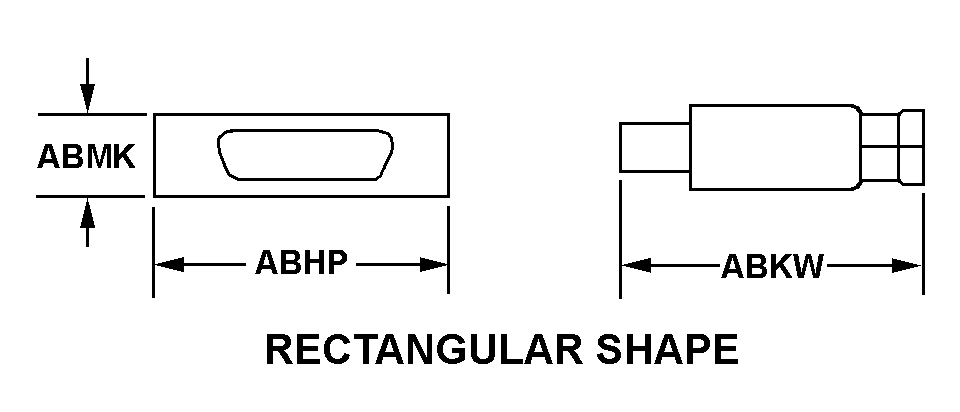

| BODY STYLE | 60A RECTANGULAR SHAPE |
| WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| COLOR | BLACK |
| CONNECTOR LOCKING METHOD | JACKSCREW-SOCKET |
| CONNECTOR CABLE STRAIN RELIEF METHOD | SHRINKABLE TUBING |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | GOLD AND NICKEL |
| MATING END QUANTITY | 1 |

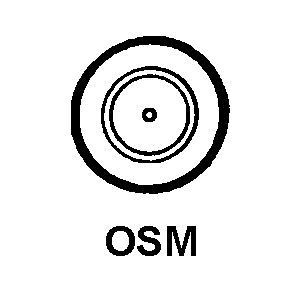

| CONTACT POSITION ARRANGEMENT STYLE | ABCP OSM SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1000.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND MOISTURE RESISTANT AND CORROSION RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT, COUPLING NUT, BODY, AND FERRULE PLATING. GOLD |
| III END ITEM IDENTIFICATION | NSN 4940-01-471-6396; ELECTRONIC SHOP, TRANSPORTABLE; W/S: MISSILE, PATROIT |
| III PART NAME ASSIGNED BY | BULK KIT, PLUG, AMPLIMITE SOLDER |
