NSN 5935-01-532-6717 HBL2421, 01-532-6717, 015326717
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-532-6717 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: HBL2421, 5935-01-532-6717, 01-532-6717, 5935015326717, 015326717
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 16 AUG 2005 | 01-532-6717 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Demand History | NSN 5935-01-532-6717
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5935-01-532-6717 | 2013-03-05 | 63 | DIBBS |
5935-01-532-6717 | 2010-10-29 | 17 | DIBBS |
5935-01-532-6717 | 2010-08-19 | 5 | DIBBS |
5935-01-532-6717 | 2010-06-08 | 4 | DIBBS |
5935-01-532-6717 | 2010-05-11 | 7 | DIBBS |
5935-01-532-6717 | 2010-05-09 | 2 | DIBBS |
5935-01-532-6717 | 2010-03-15 | 1 | DIBBS |
5935-01-532-6717 | 2010-03-08 | 9 | DIBBS |
5935-01-532-6717 | 2009-10-09 | 1 | DIBBS |
5935-01-532-6717 | 2009-08-10 | 1 | DIBBS |
5935-01-532-6717 | 2007-02-16 | 2 | DIBBS |
5935-01-532-6717 | 2006-05-23 | 1 | DIBBS |
Cross Reference | NSN 5935-01-532-6717
Part Number | Cage Code | Manufacturer |
---|---|---|
HBL2421 | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-01-532-6717
Technical Data | NSN 5935-01-532-6717
Characteristic | Specifications |
---|---|
BODY STYLE | 5C STRAIGHT SHAPE W/O CLAMP |
OVERALL HEIGHT | 2.750 INCHES NOMINAL |
OVERALL DIAMETER | 2.210 INCHES NOMINAL |
COLOR | BLACK AND WHITE |
CONNECTOR LOCKING METHOD | SHELL TWISTLOCK |
CABLE ENTRANCE DIAMETER | 0.350 INCHES MINIMUM AND 1.150 INCHES MAXIMUM |
SHELL MATERIAL | PLASTIC POLYAMIDE |
POLARIZATION METHOD | CONTACT TO CONTACT POLARIZING KEYS |
MATING END QUANTITY | 1 |

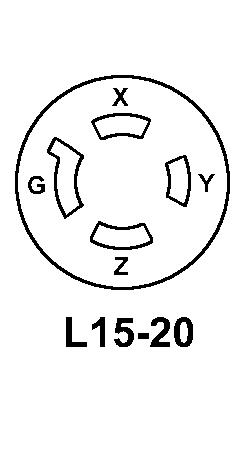

CONTACT POSITION ARRANGEMENT STYLE | AEKU L15-20 SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END ALL CONTACT GROUPINGS |
INCLUDED CONTACT TYPE | CURVED PIN SINGLE MATING END 1ST CONTACT GROUPING CURVED PIN SINGLE MATING END 2ND CONTACT GROUPING CURVED PIN SINGLE MATING END 3RD CONTACT GROUPING CURVED PIN W/OUTSIDE LIP SINGLE MATING END 4TH CONTACT GROUPING |
CONTACT MAXIMUM CURRENT RATING IN AMPS | 20.0 SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
Restrictions/Controls & Freight Information | NSN 5935-01-532-6717
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-532-6717
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
