NSN 5935-01-527-9819 TDG1026KC5, TDG1026KC50D1, TDG-1026KC5-0D1
Product Details | ELECTRICAL MODULAR RECEPTACLE CONNECTOR
5935-01-527-9819 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may or may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s), or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRNIG BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, RECEPTACLE, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABEL ASSEMBLY (as modified). For items without inserts see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: TDG1026KC5, TDG1026KC50D1, TDG-1026KC5-0D1, 5935-01-527-9819, 01-527-9819, 5935015279819, 015279819
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 2005 | 01-527-9819 | 38440 ( CONNECTOR, MODULAR RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-527-9819
Demand History | NSN 5935-01-527-9819
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-527-9819 | 2018-06-165 | 351 | DIBBS |
| 5935-01-527-9819 | 2016-07-213 | 208 | DIBBS |
| 5935-01-527-9819 | 2013-06-178 | 191 | DIBBS |
| 5935-01-527-9819 | 2011-07-190 | 38 | DIBBS |
| 5935-01-527-9819 | 2011-06-180 | 27 | DIBBS |
| 5935-01-527-9819 | 2011-02-33 | 13 | DIBBS |
| 5935-01-527-9819 | 2009-08-233 | 69 | DIBBS |
| 5935-01-527-9819 | 2009-04-114 | 100 | DIBBS |
| 5935-01-527-9819 | 2009-03-90 | 6 | DIBBS |
| 5935-01-527-9819 | 2009-02-57 | 24 | DIBBS |
| 5935-01-527-9819 | 2008-08-231 | 7 | DIBBS |
| 5935-01-527-9819 | 2006-04-97 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-527-9819
Related Products | NSN 5935-01-527-9819
Technical Data | NSN 5935-01-527-9819
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.200 INCHES NOMINAL |
| OVERALL HEIGHT | 0.567 INCHES NOMINAL |
| OVERALL WIDTH | 0.635 INCHES NOMINAL |
| MOUNTING METHOD | CLIP |
| CONNECTOR LOCKING METHOD | SNAP LOCK |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 2 |

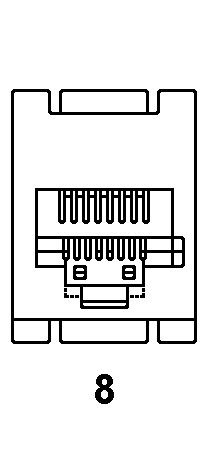

| CONTACT POSITION ARRANGEMENT STYLE | AJGH 8 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 8 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.5 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1000.0 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL ALL MATING ENDS SINGLE CONTACT GROUPING |
| TERMINAL TYPE | FEMALE TERMINAL CONNECTION ALL MATING ENDS SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | CATAGORY 5E UNSHIELDED, RJR45 (8X8) KEYSTONE FEED THRU COUPLER, WORKS WITH EIA/TIA 568A AND B WIREING. |
| III OPERATING TEMP RATING | 0.0 DEG CELSIUS MINIMUM AND 60.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD |
| III END ITEM IDENTIFICATION | NSN: 5411-01-494-8296; SHELTER, NON EXPANDABLE, LIGHTWEIGHT, MULTI PURPOSE. |
| III REFERENCE DATA AND LITERATURE | L-COM CATATLOG WWW.L-COM.COM |
Restrictions/Controls & Freight Information | NSN 5935-01-527-9819
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-527-9819
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
