NSN 5935-01-527-8640 80000906C67SN, 800-009-06C6-7SN, 01-527-8640
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-527-8640 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 80000906C67SN, 800-009-06C6-7SN, 5935-01-527-8640, 01-527-8640, 5935015278640, 015278640
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 2005 | 01-527-8640 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-527-8640
Demand History | NSN 5935-01-527-8640
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 800-009-06C6-7SN | 2024-01-23 | 10 | DIBBS |
| 800-009-06C6-7SN | 2023-08-227 | 10 | DIBBS |
| 800-009-06C6-7SN | 2020-09-245 | 10 | DIBBS |
| 800-009-06C6-7SN | 2020-03-70 | 5 | DIBBS |
| 800-009-06C6-7SN | 2019-11-307 | 30 | DIBBS |
| 5935-01-527-8640 | 2010-01-17 | 3 | DIBBS |
Cross Reference | NSN 5935-01-527-8640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 800-009-06C6-7SN | 06324 | GLENAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-527-8640
Technical Data | NSN 5935-01-527-8640
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 0.850 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.560 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN AND UN |
| NOMINAL THREAD SIZE | 0.313 INCHES AND 0.375 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 32 AND 28 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
| MATING END QUANTITY | 1 |

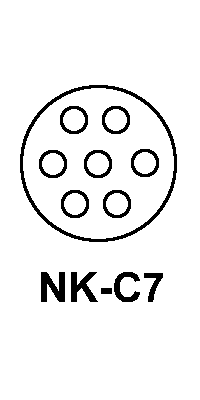

| CONTACT POSITION ARRANGEMENT STYLE | AHCT NK-C7 SINGLE MATING END |
