NSN 5935-01-525-6885 ADBJ20E1CJ80, ADBJ20-E1-CJ80, 01-525-6885
Product Details | CONNECTOR ADAPTER
5935-01-525-6885 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: ADBJ20E1CJ80, ADBJ20-E1-CJ80, 5935-01-525-6885, 01-525-6885, 5935015256885, 015256885
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 NOV 2004 | 01-525-6885 | 15091 ( ADAPTER, CONNECTOR ) |

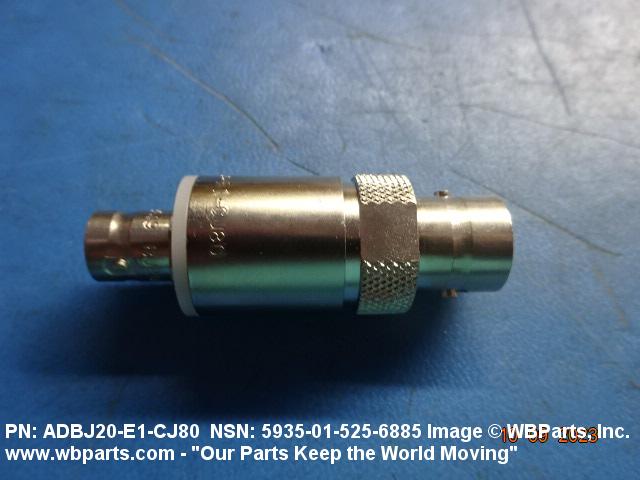

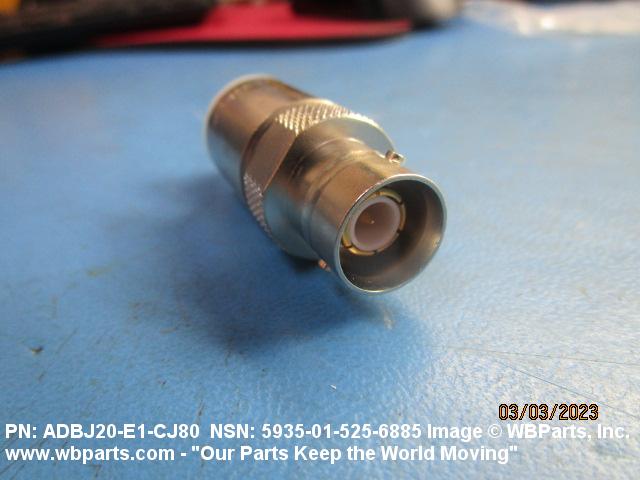

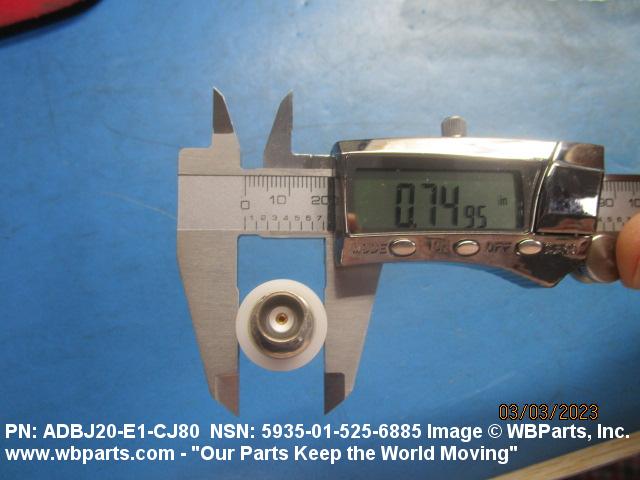

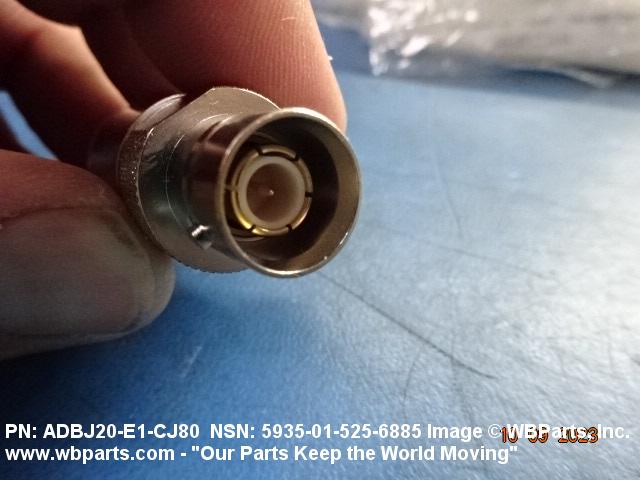

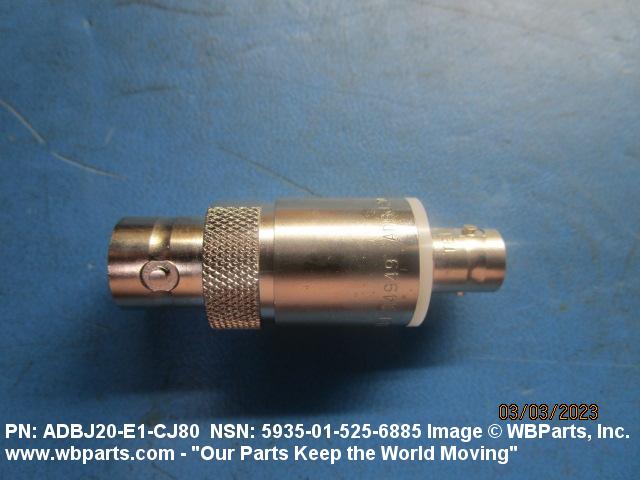

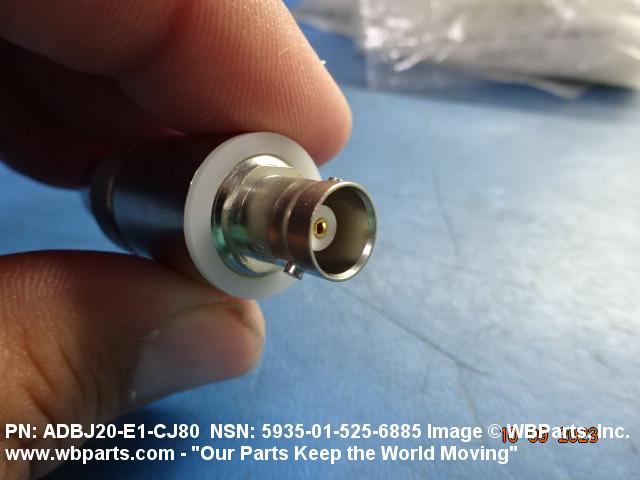

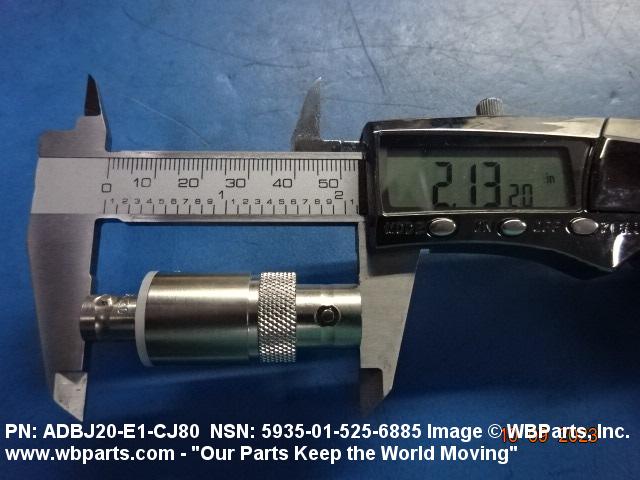

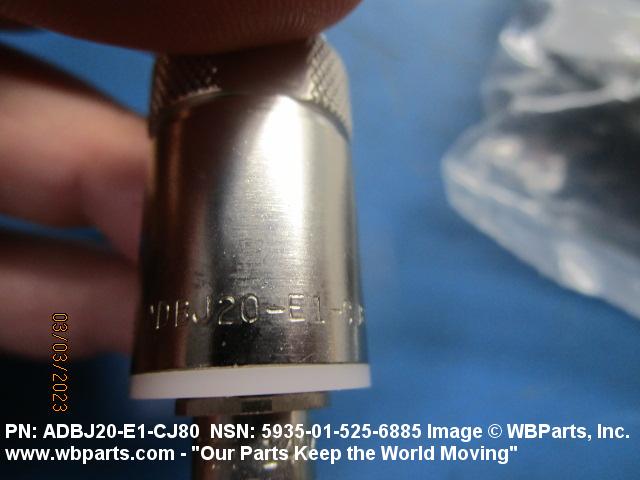

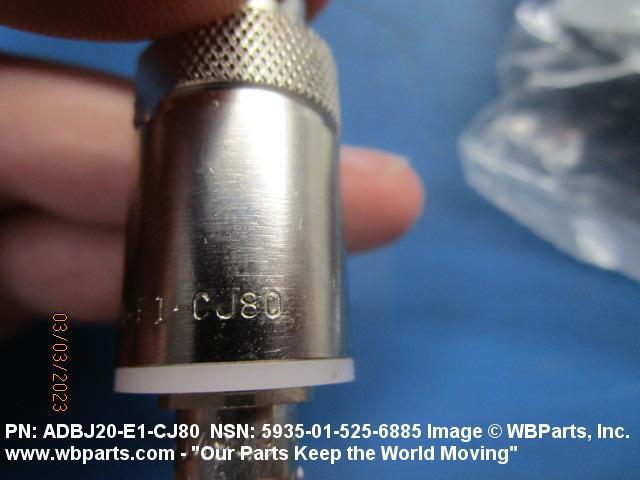

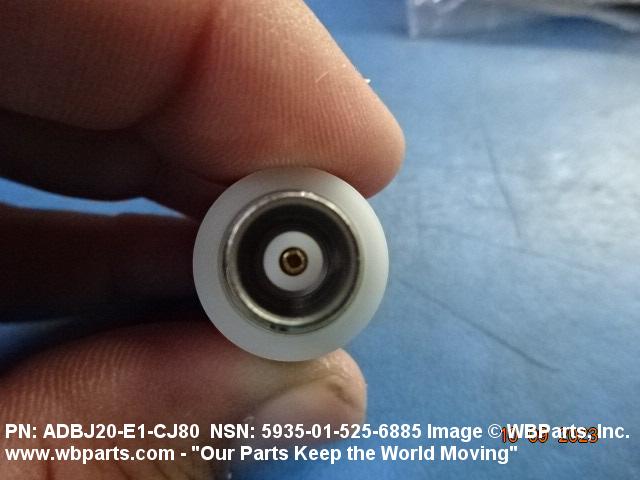

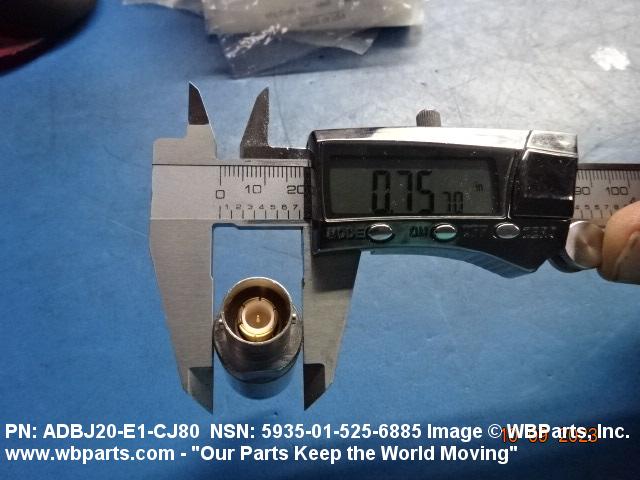

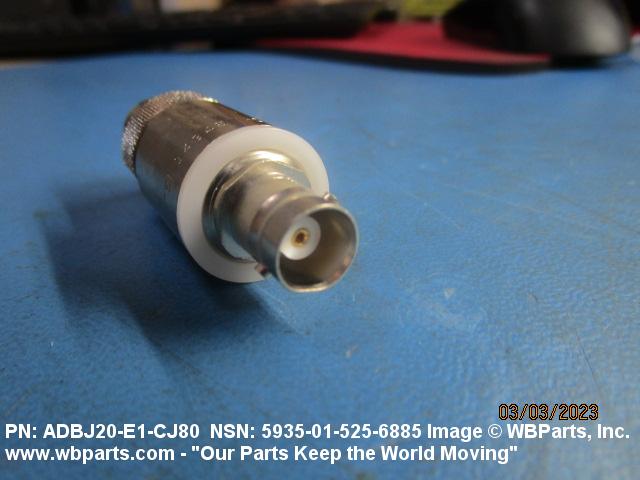

Drawings & Photos | NSN 5935-01-525-6885
Demand History | NSN 5935-01-525-6885
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ADBJ20-E1-CJ80 | 2024-06-156 | 5 | DIBBS |
| ADBJ20-E1-CJ80 | 2024-05-143 | 5 | DIBBS |
| ADBJ20-E1-CJ80 | 2024-01-29 | 5 | DIBBS |
| ADBJ20E1CJ80 | 2023-10-275 | 5 | United States |
| 5935-01-525-6885 | 2023-02-52 | 5 | United States |
| ADBJ20-E1-CJ80 | 2022-10-298 | 1 | DIBBS |
| ADBJ20E1CJ80 | 2021-02-54 | 5 | United States |
| ADBJ20-E1-CJ80 | 2021-02-40 | 1 | DIBBS |
| ADBJ20-E1-CJ80 | 2019-09-253 | 1 | DIBBS |
| 5935-01-525-6885 | 2018-08-241 | 5 | DIBBS |
| 5935-01-525-6885 | 2017-02-53 | 1 | DIBBS |
| 5935-01-525-6885 | 2016-11-335 | 1 | DIBBS |
| 5935-01-525-6885 | 2016-10-280 | 1 | DIBBS |
| 5935-01-525-6885 | 2015-09-258 | 1 | DIBBS |
| 5935-01-525-6885 | 2015-06-174 | 3 | DIBBS |
| 5935-01-525-6885 | 2015-02-36 | 1 | DIBBS |
| 5935-01-525-6885 | 2015-01-25 | 1 | DIBBS |
| 5935-01-525-6885 | 2014-07-202 | 1 | DIBBS |
| 5935-01-525-6885 | 2014-07-190 | 1 | DIBBS |
| 5935-01-525-6885 | 2012-08-216 | 4 | US |
| 5935-01-525-6885 | 2012-07-197 | 1 | DIBBS |
| 5935-01-525-6885 | 2010-04-108 | 2 | DIBBS |
| 5935-01-525-6885 | 2010-01-21 | 2 | US |
| 5935-01-525-6885 | 2009-07-208 | 8 | DIBBS |
| 5935-01-525-6885 | 2008-04-95 | 20 | DIBBS |
Cross Reference | NSN 5935-01-525-6885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ADBJ20-E1-CJ80 | 14949 | TROMPETER ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-525-6885
Technical Data | NSN 5935-01-525-6885
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1N STRAIGHT SHAPE, EXTERNAL/INTERNAL COUPLING |
| OVERALL LENGTH | 2.325 INCHES NOMINAL |
| OVERALL DIAMETER | 0.770 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.525 INCHES AND 0.625 INCHES |
| THREAD CLASS | EXTERNAL AND INTERNAL |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBJ BNC 1ST MATING END ABDB NONSTD 2ND MATING END |
| INCLUDED CONTACT QUANTITY | 1 1ST MATING END SINGLE CONTACT GROUPING 1 2ND MATING END SINGLE CONTACT GROUPING |
| III END ITEM IDENTIFICATION | AN/QQ-10(V) SYSTEM TOOLS |
Restrictions/Controls & Freight Information | NSN 5935-01-525-6885
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-525-6885
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
