NSN 5935-01-511-6592 10107640, 10-107640, 1010764067P
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-511-6592 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 10107640, 10-107640, 1010764067P, 10-107640-67P, 0131001 FIND 2, 0131001FIND2, 5935-01-511-6592, 01-511-6592, 5935015116592, 015116592
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 AUG 2003 | 01-511-6592 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-511-6592
Demand History | NSN 5935-01-511-6592
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-511-6592 | 2007-10-278 | 4 | DIBBS |
| 5935-01-511-6592 | 2007-06-180 | 4 | DIBBS |
| 5935-01-511-6592 | 2006-01-17 | 2 | DIBBS |
Cross Reference | NSN 5935-01-511-6592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0131001 FIND 2 | 14203 | NAVAL ELECTRONIC SYSTEMS ENGINEERING CENTER |
| 0131001 FIND 2 | 25647 | NAVAL COMMAND CONTROL AND OCEAN SURVEILLANCE |
| 10-107640 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 10-107640-67P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-511-6592
Technical Data | NSN 5935-01-511-6592
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.856 INCHES NOMINAL |
| OVERALL DIAMETER | 2.824 INCHES NOMINAL |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| MATING END QUANTITY | 1 |

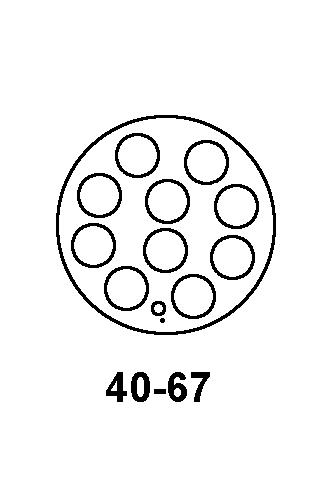

| CONTACT POSITION ARRANGEMENT STYLE | AMAV 40-67 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 10 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING COAXIAL PIN SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| III END ITEM IDENTIFICATION | 0A-9363/TPS-7; RADAR AND IFF SYSTEMS |
