Product Details | ELECTRICAL CONNECTOR INSERT
5935-01-511-3690 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.
Part Alternates: 005545 45 28, 0055454528, 5935-01-511-3690, 01-511-3690, 5935015113690, 015113690
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 AUG 2003 | 01-511-3690 | 60653 ( INSERT, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-511-3690
Cross Reference | NSN 5935-01-511-3690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 005545 45 28 | 64678 | DAIMLER TRUCKS NORTH AMERICA LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-511-3690
Technical Data | NSN 5935-01-511-3690
| Characteristic | Specifications |
|---|---|

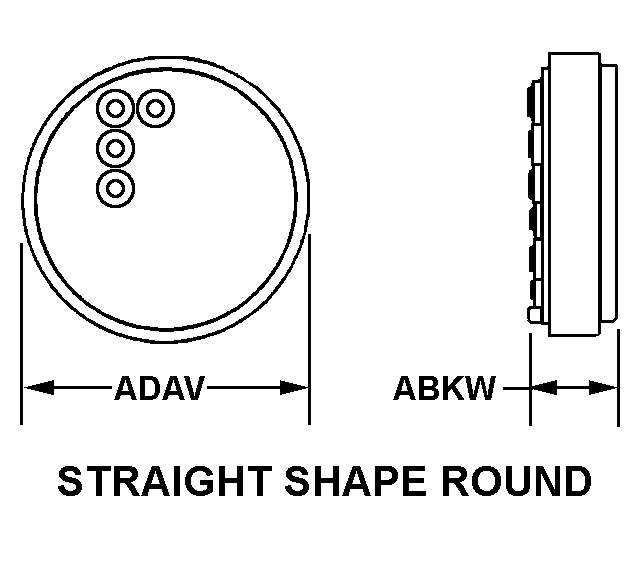

| BODY STYLE | 2P STRAIGHT SHAPE, ROUND |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ACBC NONSTD SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
