NSN 5935-01-483-7216 55695523, 5-569552-3 , 55695524

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-483-7216 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: 55695523, 5-569552-3 , 55695524, 5-569552-4, 5935-01-483-7216, 01-483-7216, 5935014837216, 014837216

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 APR 2001	01-483-7216	01938 ( CONNECTOR, PLUG, ELECTRICAL )

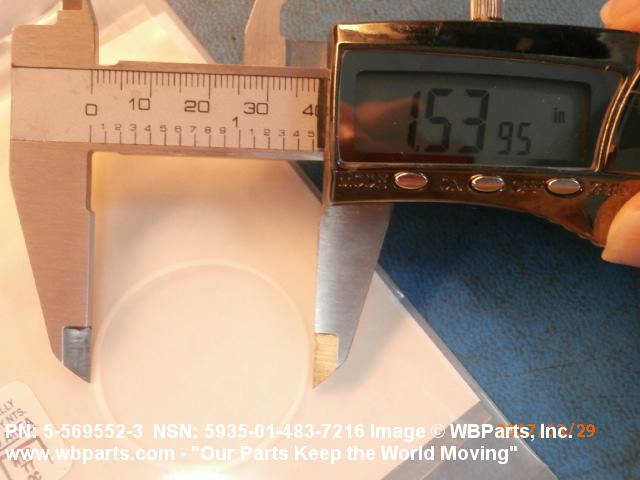

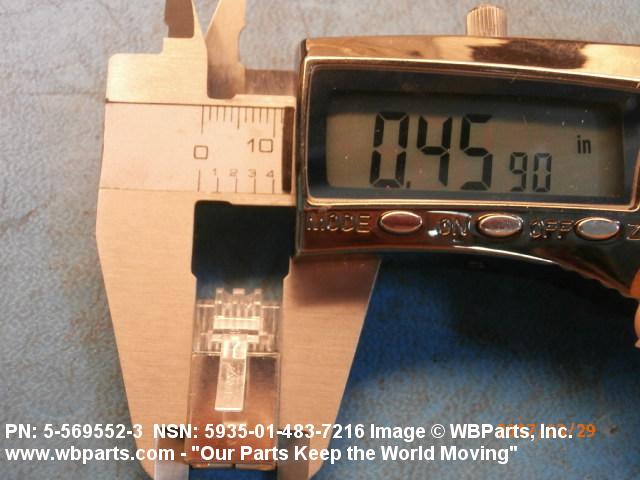

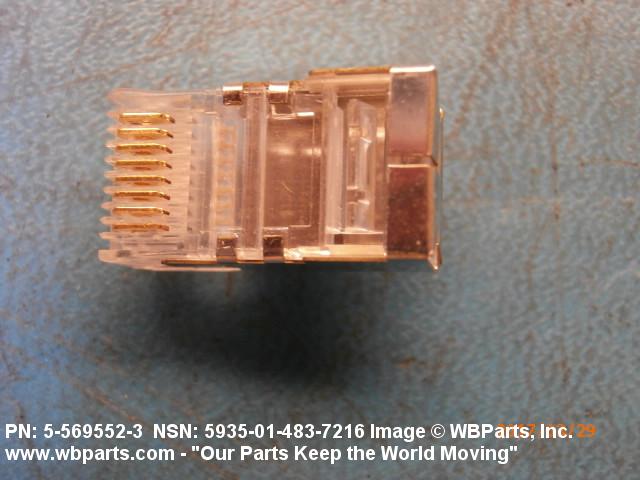

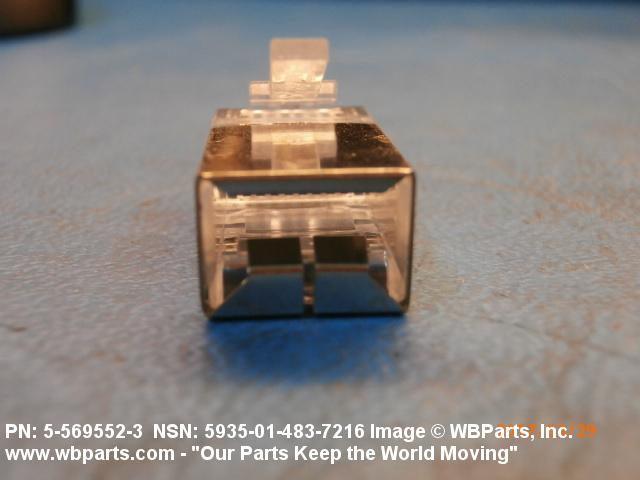

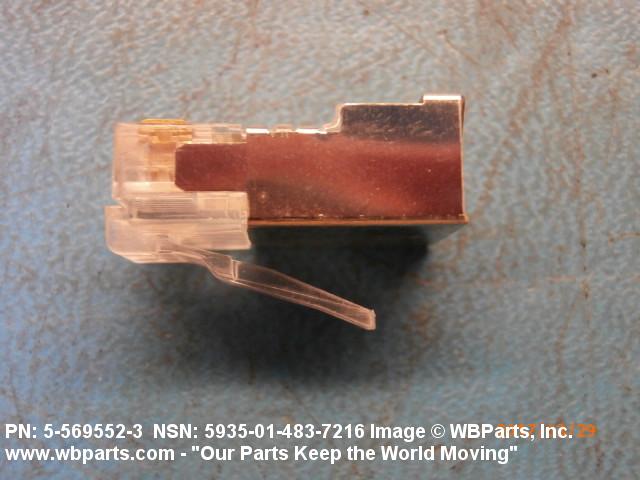

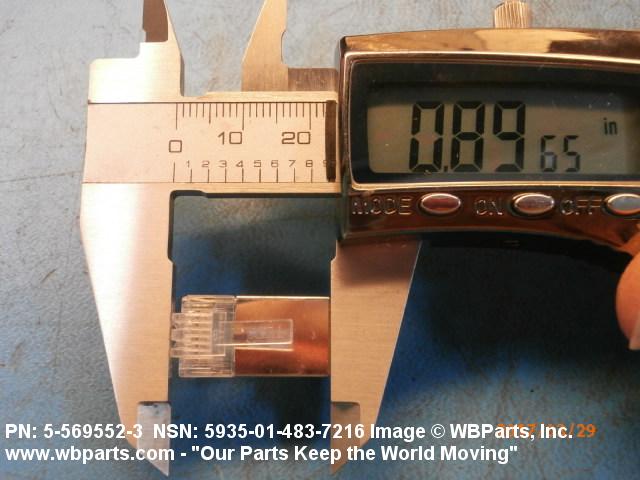

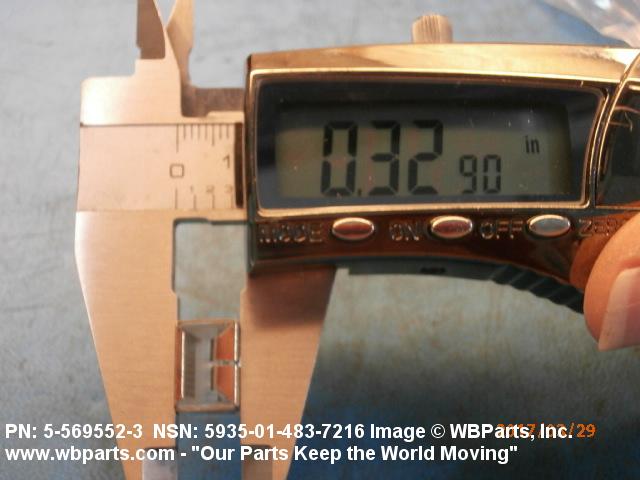

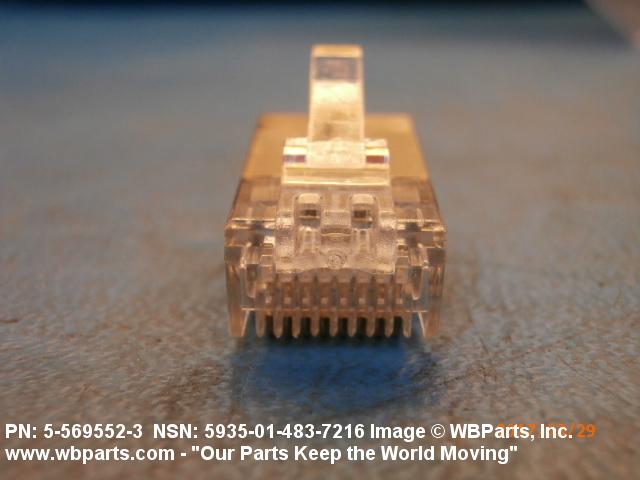

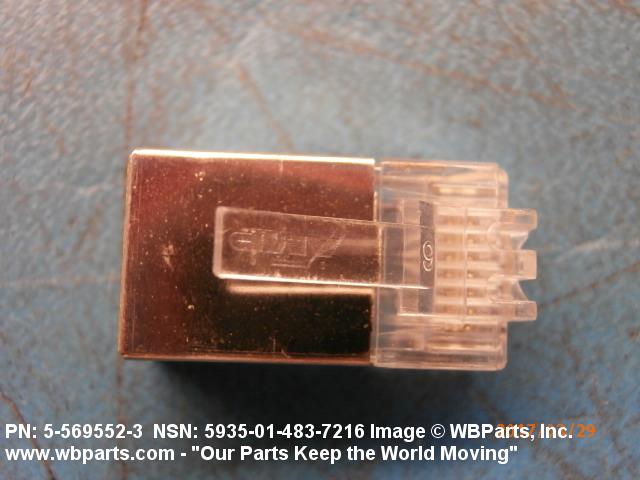

Drawings & Photos | NSN 5935-01-483-7216

Part Number	Request Date	QTY	Origin
5935-01-483-7216	2024-05-149	2	United States
5-569552-3	2020-05-150	3	India
55695523	2017-03-83	100	United States
5935-01-483-7216	2016-02-43	35000	DIBBS
5935-01-483-7216	2016-02-32	35000	DIBBS
5935-01-483-7216	2016-01-07	9500	DIBBS
5935-01-483-7216	2015-10-278	18213	DIBBS
5935-01-483-7216	2015-09-266	18213	DIBBS
5935-01-483-7216	2015-04-96	10457	DIBBS
5935-01-483-7216	2015-03-63	9462	DIBBS
5935-01-483-7216	2013-03-72	12258	DIBBS
5935-01-483-7216	2011-09-245	6118	DIBBS
5935-01-483-7216	2011-07-210	8990	DIBBS
5935-01-483-7216	2010-09-256	20200	DIBBS
5935-01-483-7216	2010-07-196	8286	DIBBS
5935-01-483-7216	2010-06-159	3047	DIBBS
5935-01-483-7216	2010-05-145	1894	DIBBS
5935-01-483-7216	2010-05-133	217	DIBBS
5935-01-483-7216	2010-05-123	1815	DIBBS
5935-01-483-7216	2010-04-100	914	DIBBS
5935-01-483-7216	2010-04-95	3170	DIBBS
5935-01-483-7216	2010-03-75	427	DIBBS
5935-01-483-7216	2010-03-74	200	DIBBS
5935-01-483-7216	2010-03-70	249	DIBBS
5935-01-483-7216	2010-01-28	1000	US
5935-01-483-7216	2010-01-04	836	DIBBS
5935-01-483-7216	2009-12-348	2138	DIBBS
5935-01-483-7216	2009-11-314	1957	DIBBS
5935-01-483-7216	2009-09-244	2589	DIBBS
5935-01-483-7216	2009-08-225	159	DIBBS
5935-01-483-7216	2005-12-346	51	DIBBS

Cross Reference | NSN 5935-01-483-7216

Part Number	Cage Code	Manufacturer
5-569552-4	00779	TYCO ELECTRONICS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-483-7216

Compare

Related Products | NSN 5935-01-483-7216

5935-01-483-7239, 5935-01-483-7246, 5935-01-483-7248, 5935-01-483-7249, 5935-01-483-7252

Technical Data | NSN 5935-01-483-7216

Characteristic	Specifications
BODY STYLE	47A RECTANGULAR SHAPE
OVERALL LENGTH	0.464 INCHES NOMINAL
OVERALL HEIGHT	0.915 INCHES NOMINAL
OVERALL WIDTH	0.328 INCHES NOMINAL
CONNECTOR LOCKING METHOD	LATCH
SHELL TYPE	SOLID
SHELL MATERIAL	PLASTIC POLYCARBONATE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AJGH 8 SINGLE MATING END
INCLUDED CONTACT QUANTITY	8 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
III END ITEM IDENTIFICATION	DATA DISTRIBUTION SYSTEM

Restrictions/Controls & Freight Information | NSN 5935-01-483-7216

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-483-7216

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
