NSN 5935-01-480-6979 M28440/6-08WA, M28440608WA, M28840/608WA
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-480-6979 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M28440/6-08WA, M28440608WA, M28840/608WA, M28840608WA, MILDTL28840, MIL-DTL-28840 , 5935-01-480-6979, 01-480-6979, 5935014806979, 014806979
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 DEC 2000 | 01-480-6979 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

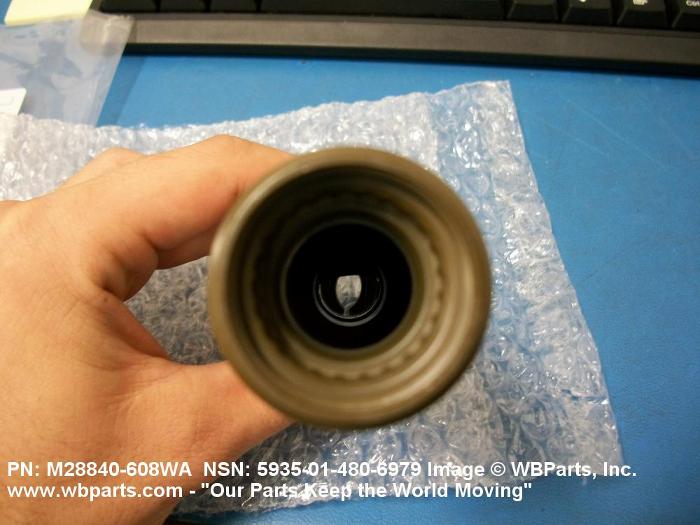

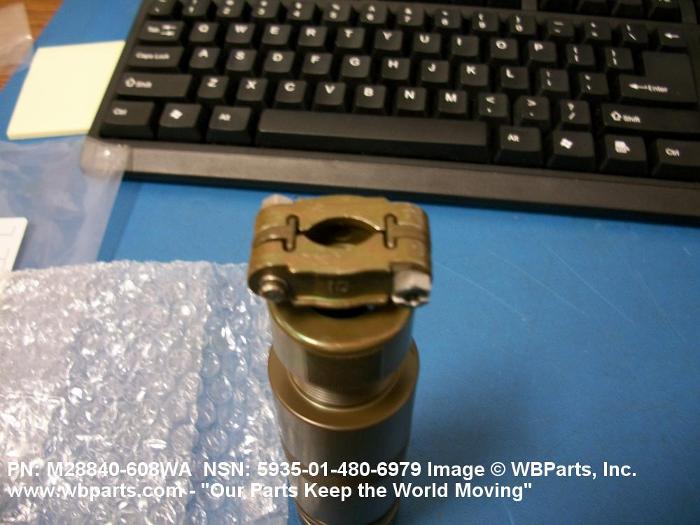

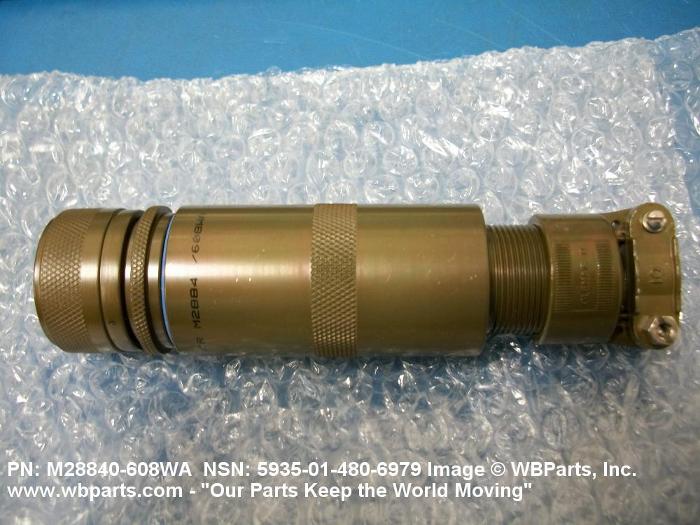

Drawings & Photos | NSN 5935-01-480-6979
Demand History | NSN 5935-01-480-6979
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-480-6979 | 2024-04-99 | 153 | DIBBS |
| 5935-01-480-6979 | 2023-10-285 | 1 | US |
| 5935-01-480-6979 | 2023-02-33 | 101 | DIBBS |
| 5935-01-480-6979 | 2021-06-179 | 47 | DIBBS |
| 5935-01-480-6979 | 2021-06-168 | 47 | DIBBS |
| 5935-01-480-6979 | 2021-03-81 | 20 | DIBBS |
| 5935-01-480-6979 | 2021-03-70 | 20 | DIBBS |
| 5935-01-480-6979 | 2020-01-16 | 25 | DIBBS |
| 5935-01-480-6979 | 2019-10-296 | 17 | DIBBS |
| M28840608WA | 2018-02-54 | 2 | United States |
| 5935-01-480-6979 | 2016-03-91 | 30 | DIBBS |
| 5935-01-480-6979 | 2014-11-308 | 17 | DIBBS |
| 5935-01-480-6979 | 2014-03-62 | 2 | DIBBS |
| 5935-01-480-6979 | 2014-02-35 | 16 | DIBBS |
| 5935-01-480-6979 | 2013-12-358 | 16 | DIBBS |
| 5935-01-480-6979 | 2013-11-326 | 4 | DIBBS |
| 5935-01-480-6979 | 2012-03-61 | 0 | United States |
| 5935-01-480-6979 | 2012-02-41 | 1 | DIBBS |
| 5935-01-480-6979 | 2012-01-23 | 1 | DIBBS |
| 5935-01-480-6979 | 2011-10-287 | 1 | DIBBS |
| M28840608WA | 2011-03-83 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-480-6979
Technical Data | NSN 5935-01-480-6979
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4C STRAIGHT TYPE W/CABLE CLAMP |
| OVERALL LENGTH | 4.120 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | 1.312 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL, ELECTROLESS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.375 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| SIZE DESIGNATION | 8 |
Restrictions/Controls & Freight Information | NSN 5935-01-480-6979
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | AE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-480-6979
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
