NSN 5935-01-480-2768 MMD130-21CW-HS-R.080, MMD13021CWHSR080, J17622103S34HR080
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-480-2768 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: MMD130-21CW-HS-R.080, MMD13021CWHSR080, J17622103S34HR080, J1762-2103S34HR080, 1425PD0006, 1425PD0006003, 1425PD0006-003, 5935-01-480-2768, 01-480-2768, 5935014802768, 014802768
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 NOV 2000 | 01-480-2768 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-480-2768
Cross Reference | NSN 5935-01-480-2768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1425PD0006 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 1425PD0006-003 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| J1762-2103S34HR080 | 07418 | JOSLYN SUNBANK COMPANY, LLC |
| MMD130-21CW-HS-R.080 | 50619 | R. KERN ENGINEERING & MANUFACTURING CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-480-2768
Related Products | NSN 5935-01-480-2768
Technical Data | NSN 5935-01-480-2768
| Characteristic | Specifications |
|---|---|

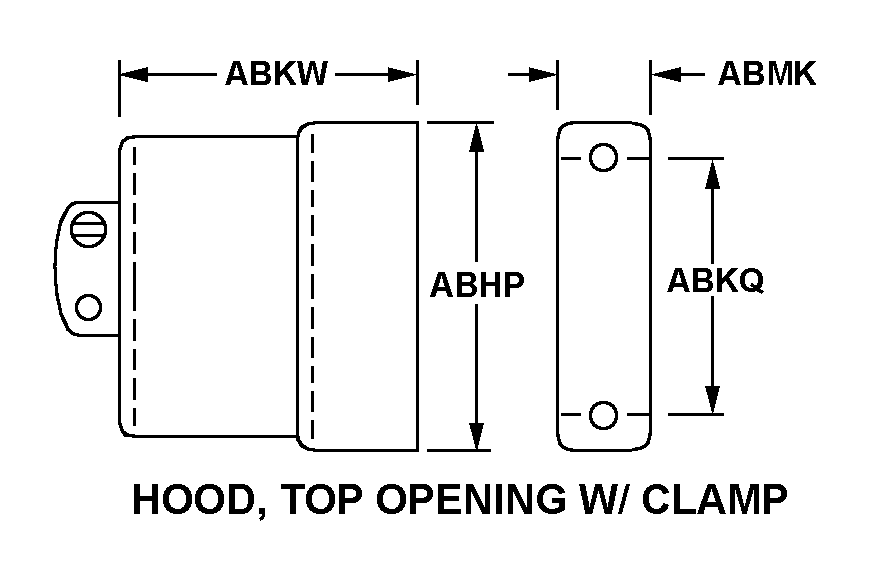

| STYLE DESIGNATOR | 33G HOOD, TOP OPENING W/CLAMP |
| OVERALL LENGTH | 1.220 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.865 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.237 INCHES MAXIMUM |
| OVERALL WIDTH | 0.400 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SCREW AND 1 CLAMP ASSEMBLY |
| CABLE OPENING QUANTITY | 1 |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER, SILICONE BASE |
| SIZE DESIGNATION | 21 |
| III END ITEM IDENTIFICATION | STV CAMERA SYSTEM |
