Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-480-2387 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 12110192, 5HE271, 5935-01-480-2387, 01-480-2387, 5935014802387, 014802387
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 NOV 2000 | 01-480-2387 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-480-2387
Demand History | NSN 5935-01-480-2387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-480-2387 | 2017-03-61 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-480-2387
Related Products | NSN 5935-01-480-2387
Technical Data | NSN 5935-01-480-2387
| Characteristic | Specifications |
|---|---|

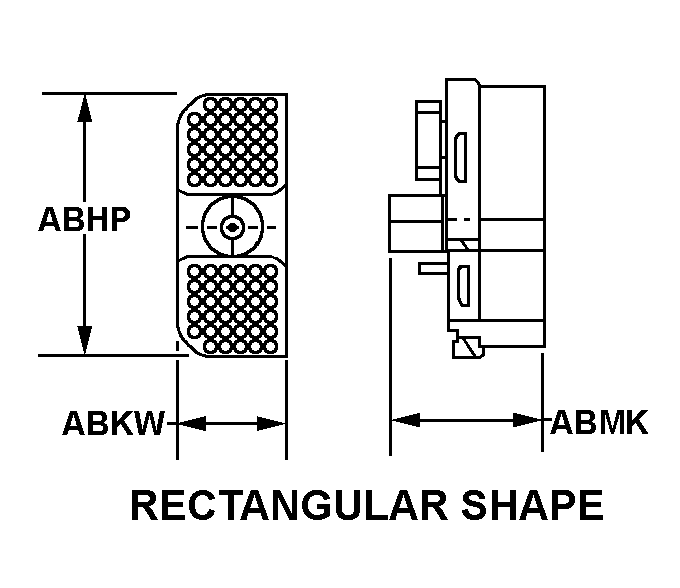

| BODY STYLE | 53A RECTANGULAR SHAPE |
| OVERALL LENGTH | 21.000 INCHES NOMINAL |
| OVERALL HEIGHT | 24.600 INCHES NOMINAL |
| OVERALL WIDTH | 21.000 INCHES NOMINAL |
| DIAMETER | 15.800 INCHES NOMINAL |
| MATING END QUANTITY | 3 |

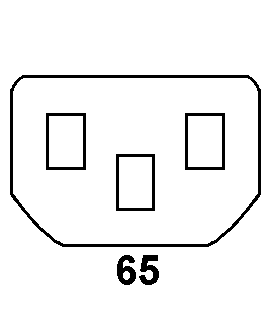

| CONTACT POSITION ARRANGEMENT STYLE | ADJS 65 ALL MATING ENDS |
