NSN 5935-01-480-2014 M28840/17AH1F3, M2884017AH1F3, MIL-C-28840/17
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-480-2014 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28840/17AH1F3, M2884017AH1F3, MIL-C-28840/17, MILC2884017, 5935-01-480-2014, 01-480-2014, 5935014802014, 014802014
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 NOV 2000 | 01-480-2014 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-480-2014
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-480-2014
Related Products | NSN 5935-01-480-2014
Technical Data | NSN 5935-01-480-2014
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 3.188 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.143 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |
| NOMINAL THREAD SIZE | 1.812 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 10 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.643 INCHES MINIMUM AND 1.081 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 AND 49.0 AND 169.0 AND 200.0 AND 244.0 |
| MATING END QUANTITY | 1 |

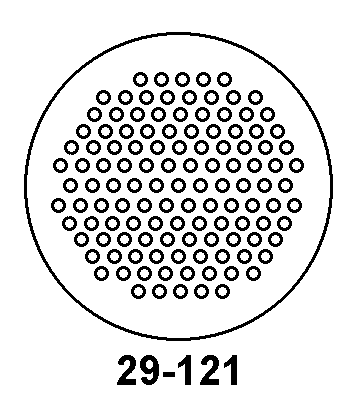

| CONTACT POSITION ARRANGEMENT STYLE | EWAC 29-121 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC FLUOROSILICONE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 121 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND CORROSION RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND HEAT RESISTANT AND COLD RESISTANT |
| SPECIAL FEATURES | 20-20 WIRE SIZE PIN CONTACTS IN LIEU OF 20-22 |
| TEST DATA DOCUMENT | 81349-MIL-C-28840 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28840/17 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28840/17 |
