NSN 5935-01-478-0053 L44PW , L4PNM, L4PNMH
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-478-0053 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: L44PW , L4PNM, L4PNMH, L4PNM-H, L4PNMPSA, L4PNM-PSA , L4PNMRC, L4PNM-RC, L4TNMPS, L4TNM-PS, L4TNMPSA, L4TNM-PSA , 1803110000, 180311-0000 , 2001555002, 2001555-002 , 40056333 , 80311-0000 , 5935-01-478-0053, 01-478-0053, 5935014780053, 014780053, 803110000
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 AUG 2000 | 01-478-0053 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

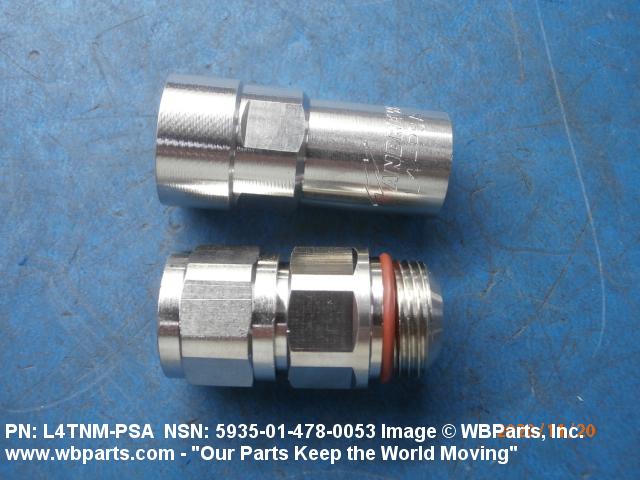

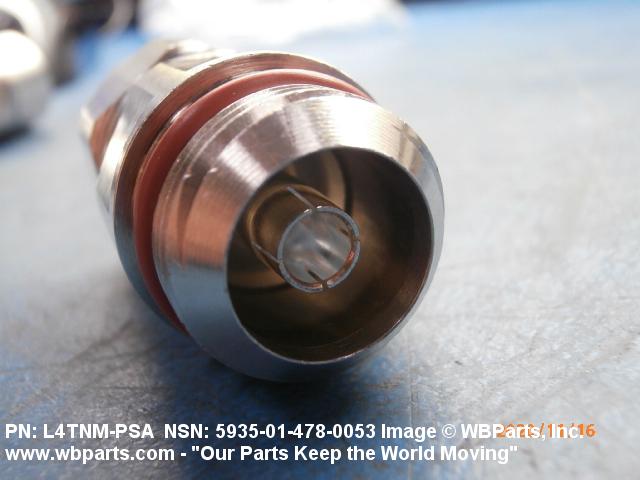

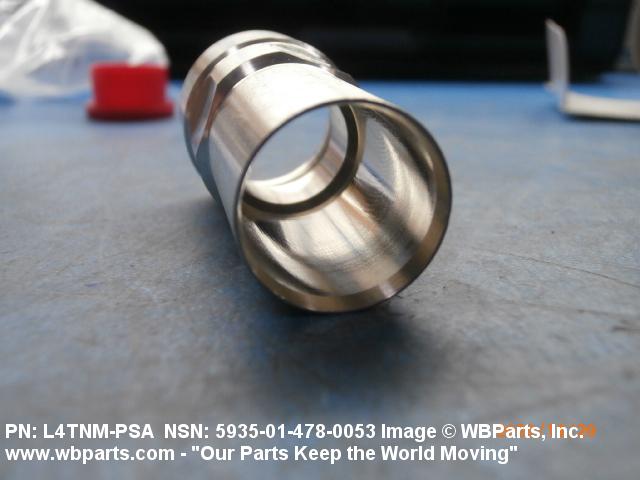

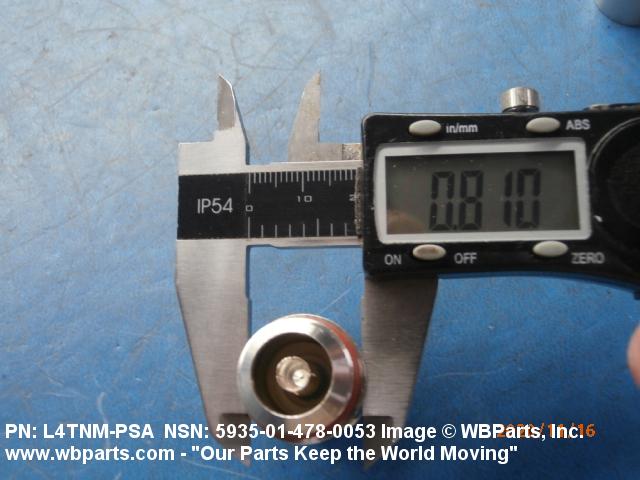

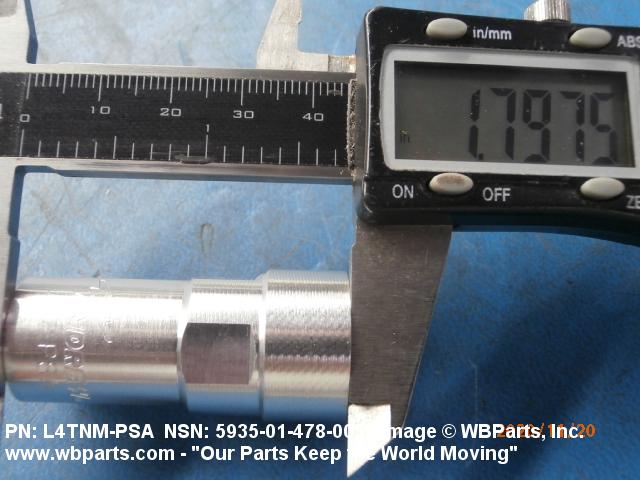

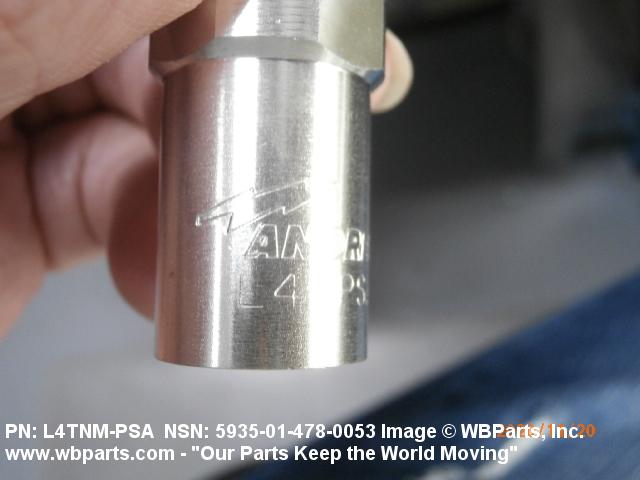

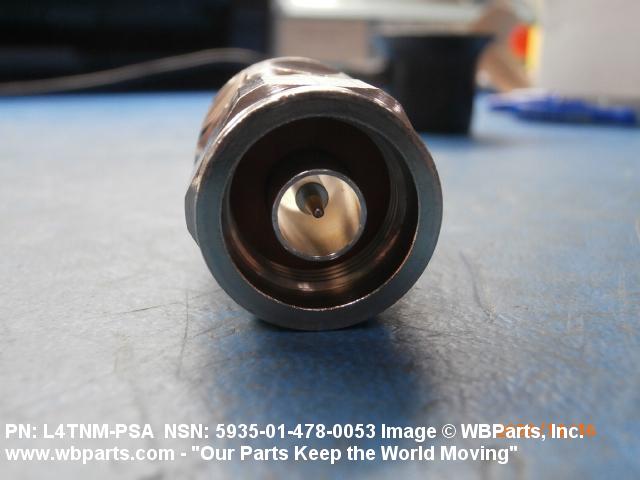

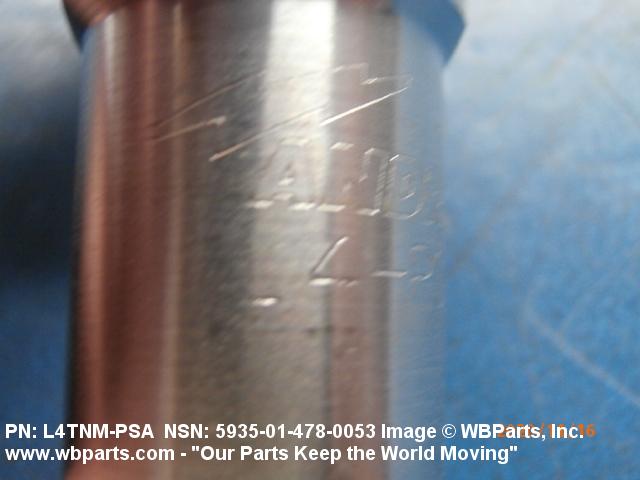

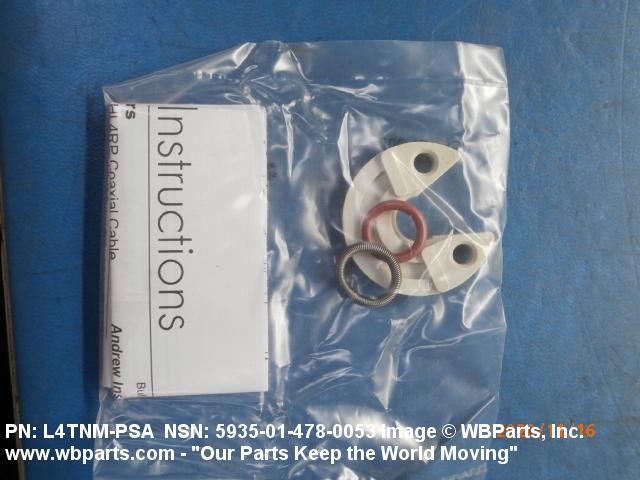

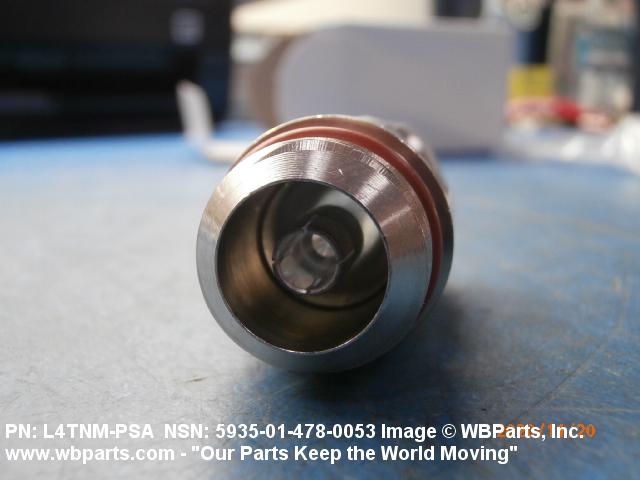

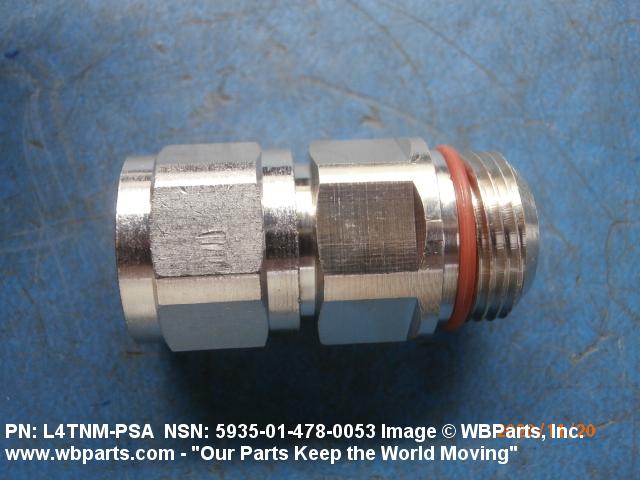

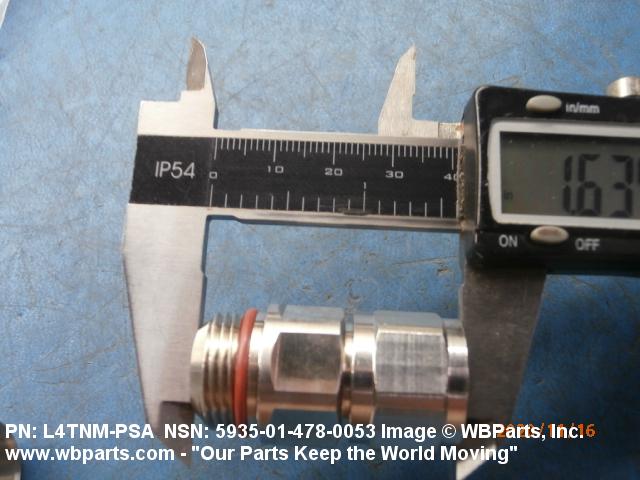

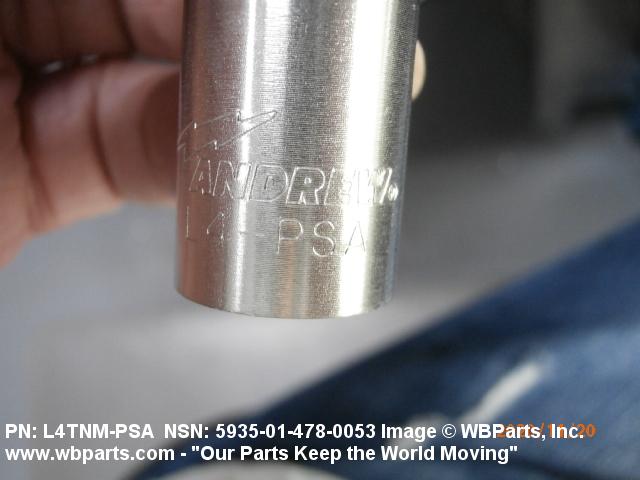

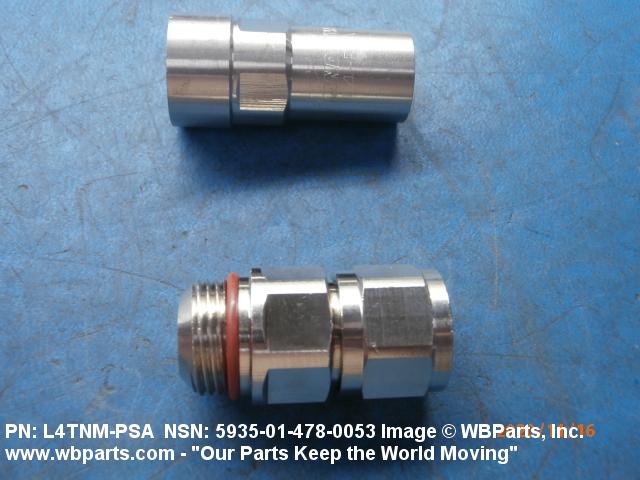

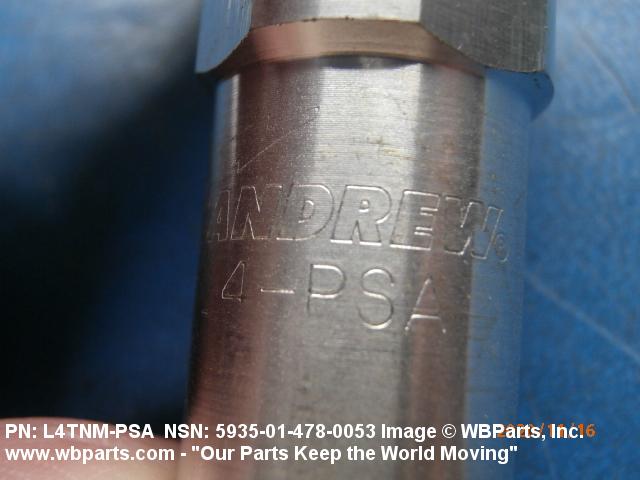

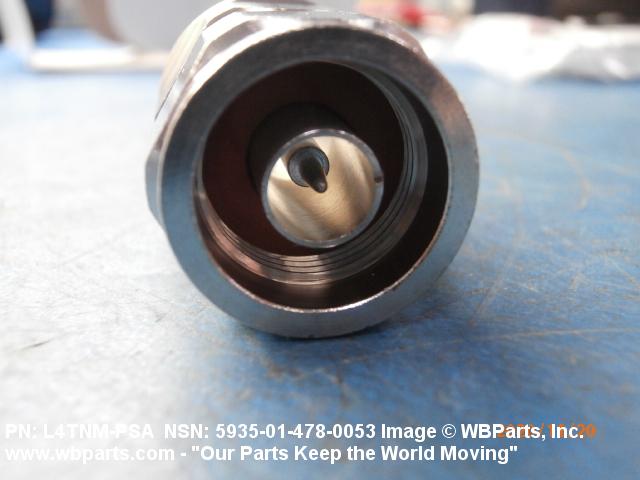

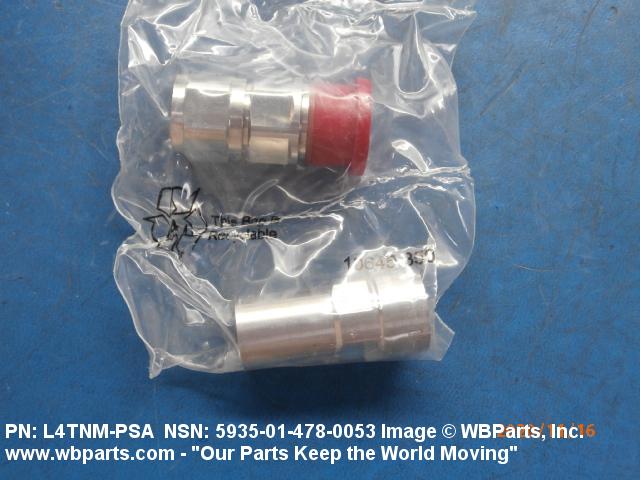

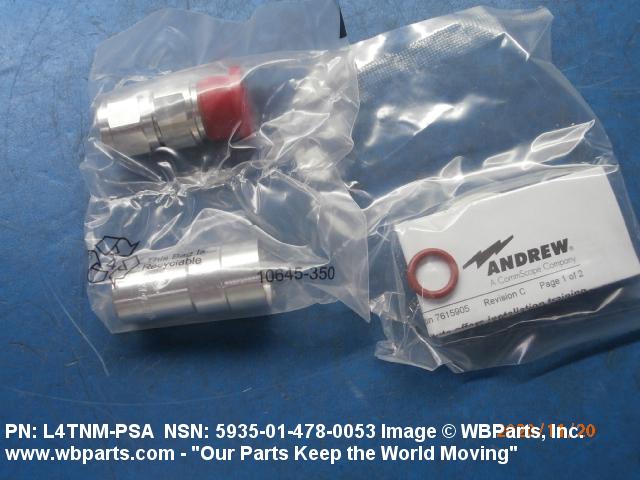

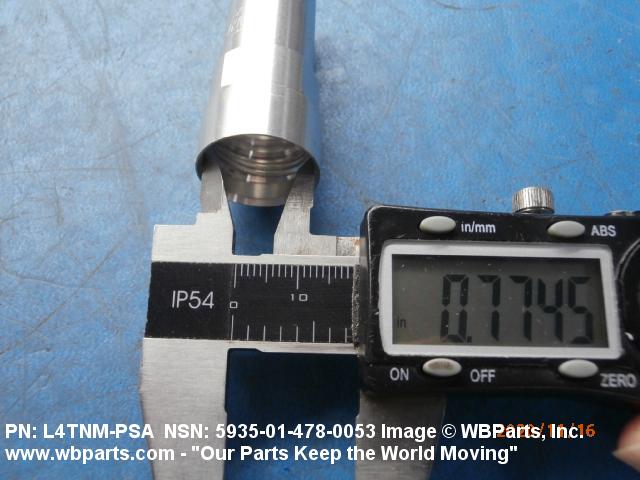

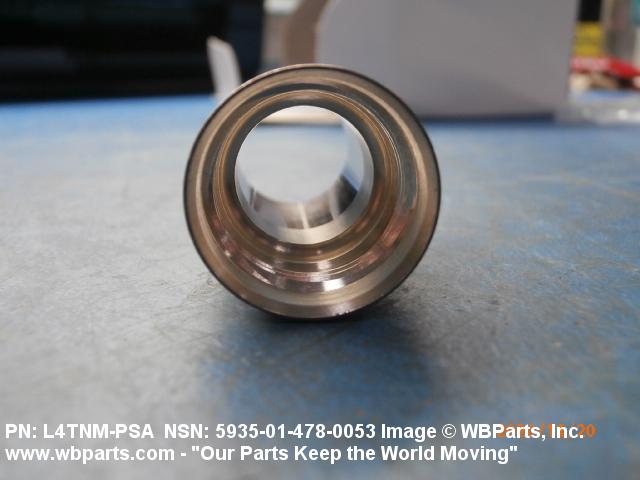

Drawings & Photos | NSN 5935-01-478-0053
Demand History | NSN 5935-01-478-0053
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-478-0053 | 2024-06-176 | 1537 | US |
| 180311-0000 | 2024-06-176 | 1537 | DIBBS |
| L4TNM-PSA | 2024-06-176 | 1537 | DIBBS |
| L4TNMPSA | 2023-09-261 | 20 | United States |
| 180311-0000 | 2023-05-145 | 743 | DIBBS |
| L4TNM-PSA | 2023-05-145 | 743 | DIBBS |
| 5935-01-478-0053 | 2023-05-131 | 743 | US |
| 180311-0000 | 2023-05-130 | 743 | DIBBS |
| L4TNM-PSA | 2023-05-130 | 743 | DIBBS |
| 5935-01-478-0053 | 2022-06-164 | 4 | United States |
| 180311-0000 | 2022-05-144 | 1951 | DIBBS |
| L4TNM-PSA | 2022-05-144 | 1951 | DIBBS |
| 5935-01-478-0053 | 2022-05-138 | 8 | US |
| L4TNMPSA | 2022-05-131 | 20 | United States |
| 5935-01-478-0053 | 2022-02-35 | 2 | Canada |
| L4TNMPSA | 2021-12-340 | 1 | US |
| L4TNMPSA | 2021-07-204 | 2 | United States |
| 180311-0000 | 2021-06-158 | 1250 | DIBBS |
| L4TNM-PSA | 2021-06-158 | 1250 | DIBBS |
| 180311-0000 | 2021-06-157 | 775 | DIBBS |
| L4TNM-PSA | 2021-06-157 | 775 | DIBBS |
| 5935-01-478-0053 | 2021-03-70 | 12 | US |
| 5935-01-478-0053 | 2020-11-308 | 84 | United States |
| L4PNMH | 2020-11-308 | 84 | United States |
| L4PNMH | 2019-11-319 | 20 | United States |
| 5935-01-478-0053 | 2019-10-294 | 1 | US |
| 5935-01-478-0053 | 2019-10-291 | 1 | US |
| 5935-01-478-0053 | 2019-10-289 | 1 | US |
| 5935-01-478-0053 | 2019-10-289 | 1 | US |
| 5935-01-478-0053 | 2019-10-280 | 12 | US |
| 5935-01-478-0053 | 2019-04-116 | 1 | US |
| 180311-0000 | 2019-01-03 | 2591 | DIBBS |
| L4TNM-PSA | 2019-01-03 | 2591 | DIBBS |
| L4PNM | 2018-11-305 | 4 | Netherlands |
| 5935-01-478-0053 | 2018-10-299 | 3 | United States |
| L4TNMPSA | 2018-08-234 | 14 | United States |
| 5935-01-478-0053 | 2018-07-197 | 1140 | DIBBS |
| L4TNMPS | 2018-05-150 | 2 | NG |
| 5935-01-478-0053 | 2017-09-247 | 747 | DIBBS |
| 5935-01-478-0053 | 2016-09-273 | 645 | DIBBS |
| L4TNMPS | 2016-05-123 | 10 | us |
| L4TNMPS | 2016-03-88 | 10 | us |
| 5935-01-478-0053 | 2015-07-202 | 540 | DIBBS |
| 5935-01-478-0053 | 2014-12-337 | 1125 | DIBBS |
| 5935-01-478-0053 | 2014-06-169 | 801 | DIBBS |
| 5935-01-478-0053 | 2013-12-349 | 383 | DIBBS |
| L4TNMPSA | 2013-06-175 | 10 | US |
| 5935-01-478-0053 | 2013-01-29 | 3 | United States |
| L4PNM-RC | 2011-08-216 | 100 | |
| 5935-01-478-0053 | 2009-04-106 | 529 | DIBBS |
| 5935-01-478-0053 | 2009-02-41 | 1951 | DIBBS |
| 5935-01-478-0053 | 2008-12-344 | 3087 | DIBBS |
| 5935-01-478-0053 | 2008-11-316 | 178 | DIBBS |
| 5935-01-478-0053 | 2008-05-152 | 203 | DIBBS |
| 5935-01-478-0053 | 2008-05-134 | 66 | DIBBS |
| 5935-01-478-0053 | 2008-04-119 | 35 | DIBBS |
| 5935-01-478-0053 | 2008-03-78 | 525 | DIBBS |
| 5935-01-478-0053 | 2008-01-10 | 657 | DIBBS |
| 5935-01-478-0053 | 2007-11-323 | 910 | DIBBS |
| 5935-01-478-0053 | 2007-09-268 | 1087 | DIBBS |
| 5935-01-478-0053 | 2007-09-250 | 1249 | DIBBS |
| 5935-01-478-0053 | 2007-04-108 | 801 | DIBBS |
| 5935-01-478-0053 | 2007-04-102 | 147 | DIBBS |
| 5935-01-478-0053 | 2007-03-71 | 160 | DIBBS |
| L4PNMRC | 2007-02-58 | 300 | China |
| 5935-01-478-0053 | 2006-07-201 | 123 | DIBBS |
| 5935-01-478-0053 | 2006-06-174 | 58 | DIBBS |
| 5935-01-478-0053 | 2006-05-146 | 183 | DIBBS |
Cross Reference | NSN 5935-01-478-0053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 180311-0000 | 64415 | SELEX ES INC. |
| 2001555-002 | 66948 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 80311-0000 | 44151 | CAGLES LAWMAN SUPPLY INC |
| L44PW | 84147 | ANDREW LLC |
| L4PNM | 84147 | ANDREW LLC |
| L4PNM-H | 84147 | ANDREW LLC |
| L4PNM-PSA | 84147 | ANDREW LLC |
| L4PNM-RC | 84147 | ANDREW LLC |
| L4TNM-PS | 84147 | ANDREW LLC |
| L4TNM-PS | Z3446 | COMMSCOPE AUSTRALIA PTY LTD |
| L4TNM-PSA | 84147 | ANDREW LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-478-0053
Related Products | NSN 5935-01-478-0053
Technical Data | NSN 5935-01-478-0053
| Characteristic | Specifications |
|---|---|

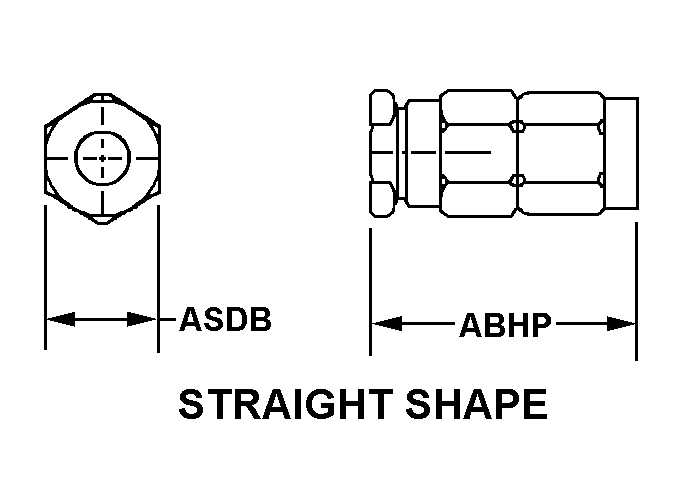

| BODY STYLE | 9D STRAIGHT SHAPE |
| OVERALL LENGTH | 2.600 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.940 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.910 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B16 ASSN STD SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | SILVER |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365, TYPE III, GRADE A FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |

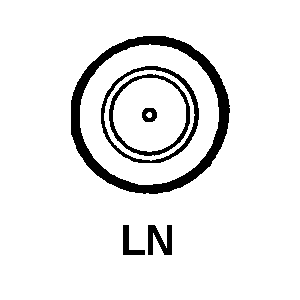

| CONTACT POSITION ARRANGEMENT STYLE | ABBU LN SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204C, TYPE II, CLASSI GRADE C MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND SHELL SURFACE SILVER |
| III END ITEM IDENTIFICATION | 1430-01-369-5863 AVENTER UNIT DS MAI, MISSILE VEHICLE MOUNTED STINGER |
Restrictions/Controls & Freight Information | NSN 5935-01-478-0053
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-478-0053
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
