NSN 5935-01-472-4081 M28840/901WA, M28840901WA, MIL-C-28840/9
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-472-4081 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M28840/901WA, M28840901WA, MIL-C-28840/9, MILC288409, 5935-01-472-4081, 01-472-4081, 5935014724081, 014724081
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAR 2000 | 01-472-4081 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-472-4081
Demand History | NSN 5935-01-472-4081
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-472-4081 | 2023-04-93 | 54 | DIBBS |
| 5935-01-472-4081 | 2023-03-82 | 54 | DIBBS |
| 5935-01-472-4081 | 2018-11-309 | 78 | DIBBS |
| 5935-01-472-4081 | 2018-10-298 | 78 | DIBBS |
| 5935-01-472-4081 | 2018-01-21 | 75 | DIBBS |
| 5935-01-472-4081 | 2017-03-72 | 60 | DIBBS |
| 5935-01-472-4081 | 2017-03-61 | 60 | DIBBS |
| 5935-01-472-4081 | 2016-02-35 | 69 | DIBBS |
| 5935-01-472-4081 | 2016-01-03 | 41 | DIBBS |
| 5935-01-472-4081 | 2015-04-118 | 100 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-472-4081
Technical Data | NSN 5935-01-472-4081
| Characteristic | Specifications |
|---|---|

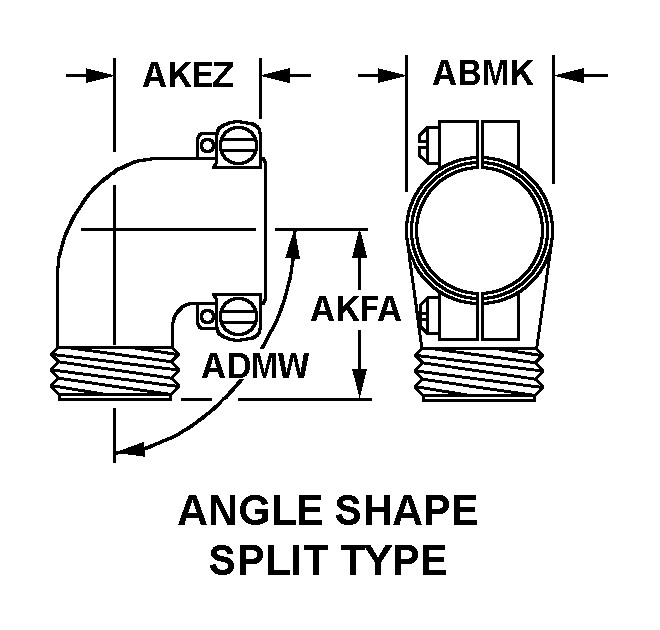

| STYLE DESIGNATOR | 11C ANGLE SHAPE SPLIT TYPE |
| OVERALL WIDTH | 1.031 INCHES NOMINAL |
| BODY ANGLE IN DEG | 45.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 1.031 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO CABLE END | 0.500 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL, ELECTROLESS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP ASSEMBLY AND 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28840/9C GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28840/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28840/901WA |
Restrictions/Controls & Freight Information | NSN 5935-01-472-4081
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | 40 | Department of Interior Washington, DC 20006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-472-4081
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
