NSN 5935-01-469-9630 MTCC2P02002001BB, MTCC2P-020-020-01-BB, MTCC2P02002001CS018
Product Details | ELECTRICAL CONNECTOR SHELL
5935-01-469-9630 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: MTCC2P02002001BB, MTCC2P-020-020-01-BB, MTCC2P02002001CS018, MTCC2P-020-020-01CS018 , 16VE04900256, 16VE049002-56, 5935-01-469-9630, 01-469-9630, 5935014699630, 014699630
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1999 | 01-469-9630 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-469-9630
Demand History | NSN 5935-01-469-9630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16VE049002-56 | 2024-01-11 | 69 | DIBBS |
| MTCC2P-020-020-01CS018 | 2024-01-11 | 69 | DIBBS |
| 16VE049002-56 | 2022-01-09 | 35 | DIBBS |
| MTCC2P-020-020-01CS018 | 2022-01-09 | 35 | DIBBS |
| 16VE049002-56 | 2020-03-90 | 91 | DIBBS |
| MTCC2P-020-020-01CS018 | 2020-03-90 | 91 | DIBBS |
| 16VE049002-56 | 2020-03-79 | 91 | DIBBS |
| MTCC2P-020-020-01CS018 | 2020-03-79 | 91 | DIBBS |
| 5935-01-469-9630 | 2018-04-109 | 46 | DIBBS |
| 5935-01-469-9630 | 2015-08-242 | 50 | DIBBS |
| 5935-01-469-9630 | 2014-04-110 | 39 | DIBBS |
| 5935-01-469-9630 | 2013-08-240 | 29 | DIBBS |
| 5935-01-469-9630 | 2012-08-215 | 22 | DIBBS |
| 5935-01-469-9630 | 2012-02-47 | 9 | DIBBS |
| 5935-01-469-9630 | 2012-02-39 | 3 | DIBBS |
| 5935-01-469-9630 | 2011-12-348 | 6 | DIBBS |
| 5935-01-469-9630 | 2011-01-19 | 7 | DIBBS |
| 5935-01-469-9630 | 2010-08-218 | 56 | DIBBS |
| 5935-01-469-9630 | 2010-03-63 | 10 | DIBBS |
| 5935-01-469-9630 | 2009-09-253 | 10 | DIBBS |
| 5935-01-469-9630 | 2009-02-41 | 3 | DIBBS |
| 5935-01-469-9630 | 2008-11-306 | 1 | DIBBS |
| 5935-01-469-9630 | 2008-10-295 | 1 | DIBBS |
| 5935-01-469-9630 | 2008-07-210 | 1 | DIBBS |
| 5935-01-469-9630 | 2008-06-167 | 2 | DIBBS |
| 5935-01-469-9630 | 2008-05-152 | 28 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-469-9630
Related Products | NSN 5935-01-469-9630
Technical Data | NSN 5935-01-469-9630
| Characteristic | Specifications |
|---|---|

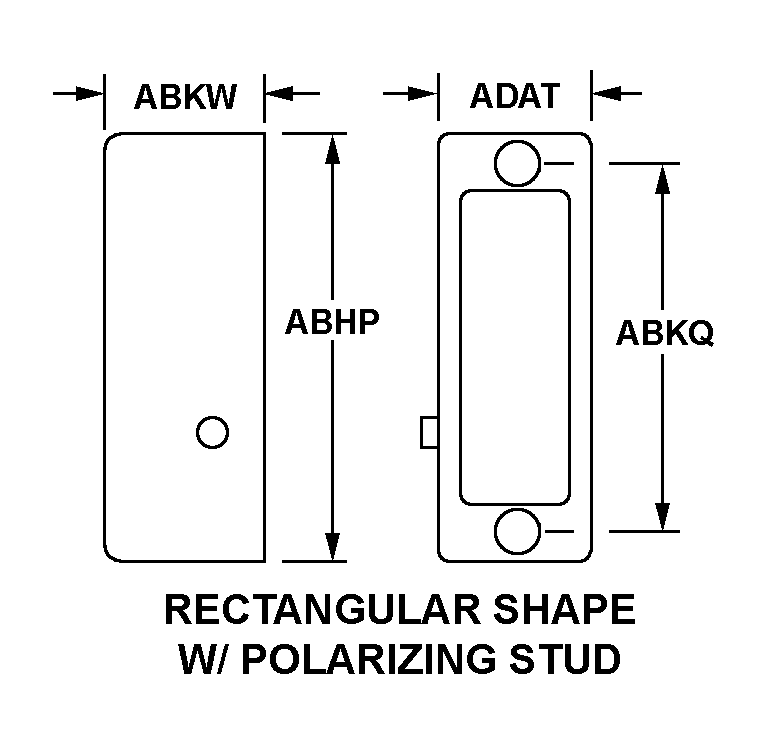

| STYLE DESIGNATOR | 33D RECTANGULAR SHAPE W/POLARIZING STUD |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.120 INCHES NOMINAL |
| BODY WIDTH | 0.390 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 STUD |
| SPECIAL FEATURES | CABLE CLAMP AVAILABLE ON BOTH PLUG AND RECEPTACLE SHELLS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | ON MATING SURFACES GOLD |
| III END ITEM IDENTIFICATION | AIRCRAFT, F16, AIR COMB FIT |
Restrictions/Controls & Freight Information | NSN 5935-01-469-9630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-469-9630
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
