NSN 5935-01-469-8522 HS5938, HS59381, HS5938-1

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-469-8522 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: HS5938, HS59381, HS5938-1, 125957, 125-95-7, 5935-01-469-8522, 01-469-8522, 5935014698522, 014698522

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 NOV 1999	01-469-8522	01938 ( CONNECTOR, PLUG, ELECTRICAL )

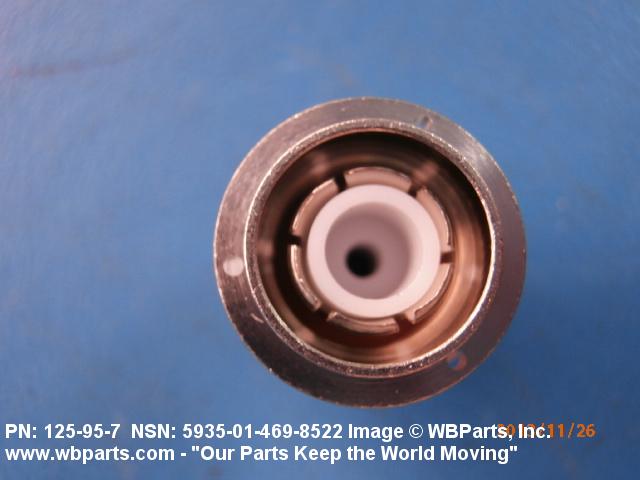

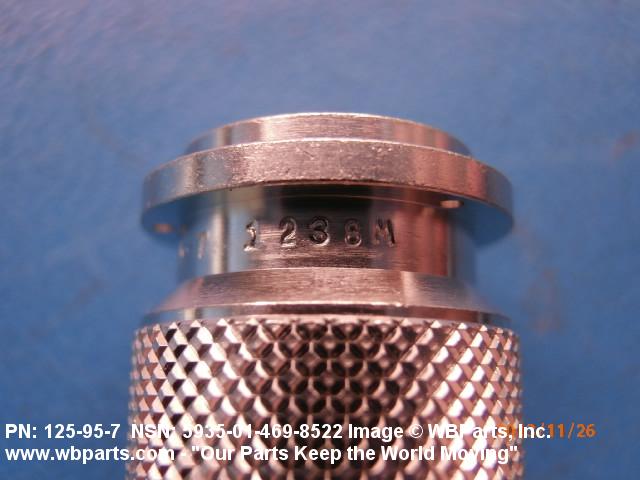

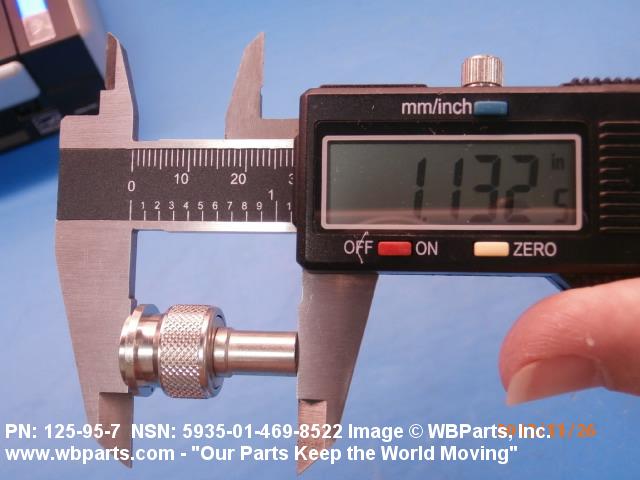

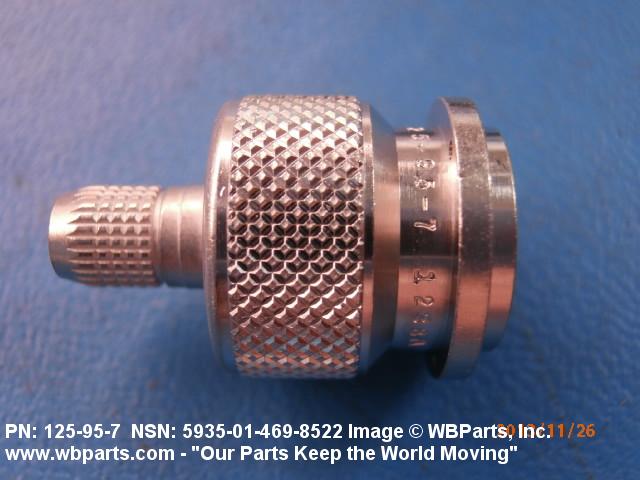

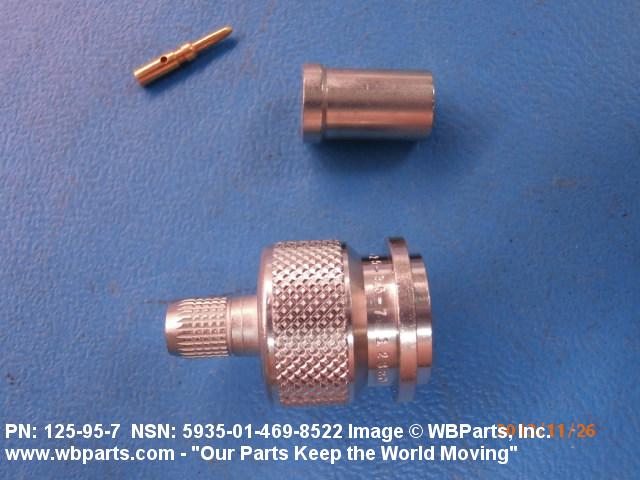

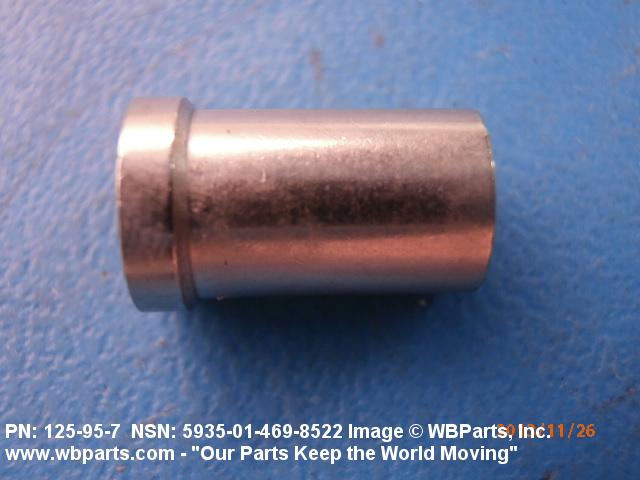

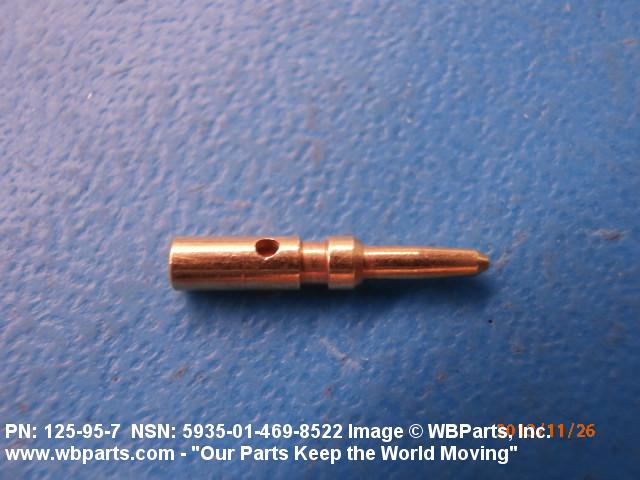

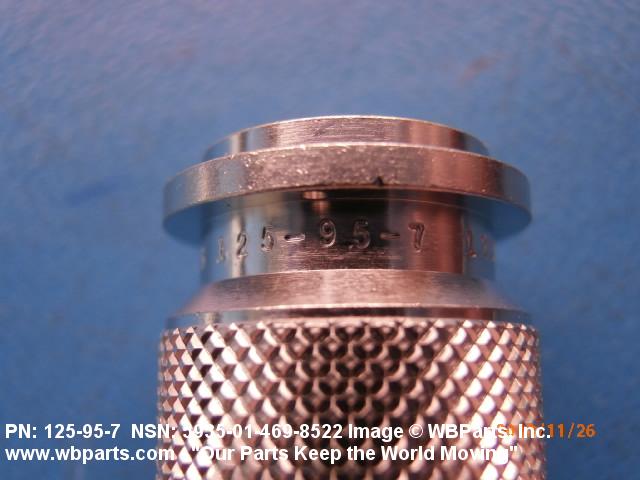

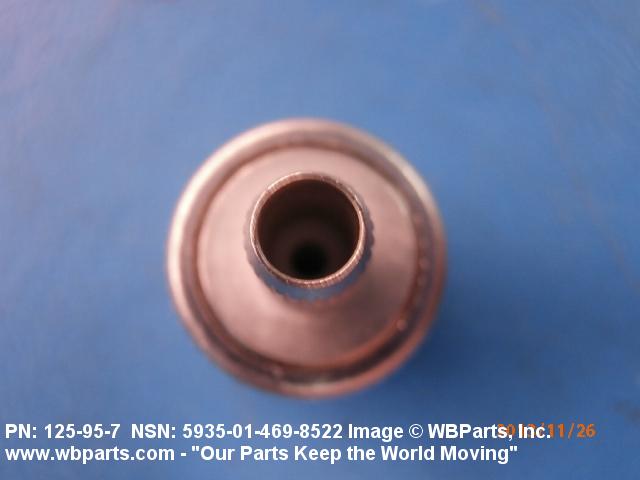

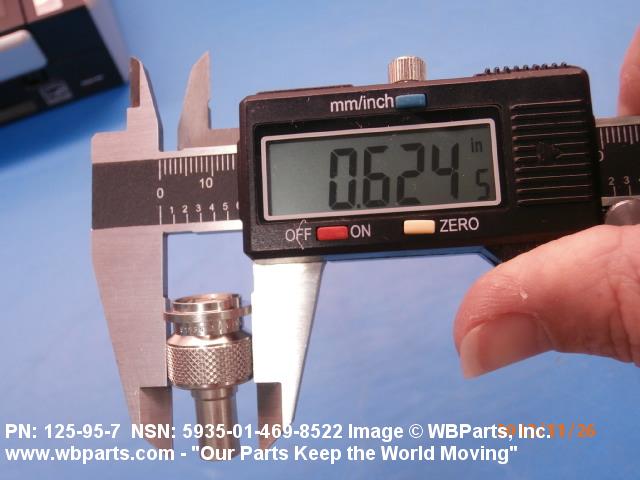

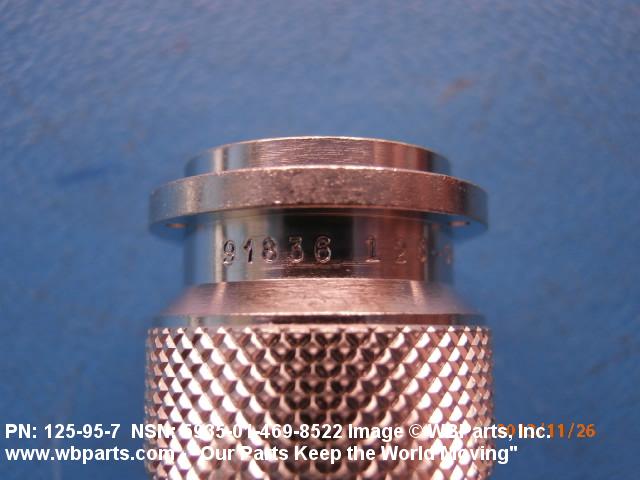

Drawings & Photos | NSN 5935-01-469-8522

Part Number	Request Date	QTY	Origin
125-95-7	2024-11-312	183	DIBBS
125-95-7	2024-10-301	183	DIBBS
HS59381	2021-07-196	15	United States
5935-01-469-8522	2020-09-258	1	US
5935-01-469-8522	2018-03-67	667	DIBBS
125957	2017-03-68	10	United States
5935-01-469-8522	2016-06-171	751	DIBBS
5935-01-469-8522	2015-12-337	710	DIBBS
5935-01-469-8522	2015-07-182	316	DIBBS
HS59381	2014-01-29	2	United States
5935-01-469-8522	2013-11-319	10	United States
5935-01-469-8522	2012-12-352	0	DIBBS
5935-01-469-8522	2012-11-335	504	DIBBS
5935-01-469-8522	2012-06-181	314	DIBBS
5935-01-469-8522	2012-04-97	256	DIBBS
5935-01-469-8522	2011-06-161	248	DIBBS
5935-01-469-8522	2010-04-95	360	DIBBS
5935-01-469-8522	2010-02-36	253	DIBBS
5935-01-469-8522	2009-11-322	145	DIBBS
5935-01-469-8522	2009-07-212	168	DIBBS
5935-01-469-8522	2009-06-169	136	DIBBS
5935-01-469-8522	2009-03-77	62	DIBBS
5935-01-469-8522	2009-01-29	141	DIBBS
5935-01-469-8522	2009-01-20	79	DIBBS
5935-01-469-8522	2009-01-14	7	DIBBS
5935-01-469-8522	2009-01-02	101	DIBBS
5935-01-469-8522	2008-11-317	69	DIBBS
5935-01-469-8522	2008-10-295	37	DIBBS
5935-01-469-8522	2008-10-281	73	DIBBS
5935-01-469-8522	2008-09-246	50	DIBBS
5935-01-469-8522	2008-08-217	40	DIBBS
5935-01-469-8522	2008-04-98	30	DIBBS
5935-01-469-8522	2008-04-95	16	DIBBS

Cross Reference | NSN 5935-01-469-8522

Part Number	Cage Code	Manufacturer
125-95-7	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
HS5938	8V613	BOEING COMPANY, THE DBA BOEING
HS5938-1	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS5938-1	8V613	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-469-8522

Compare

Related Products | NSN 5935-01-469-8522

5935-01-469-8525, 5935-01-469-8552, 5935-01-469-8621, 5935-01-469-8630, 5935-01-469-8645

Technical Data | NSN 5935-01-469-8522

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.250 INCHES MAXIMUM
OVERALL DIAMETER	0.650 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	SHELL TWISTLOCK
CONNECTOR CABLE STRAIN RELIEF METHOD	CRIMP TYPE
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABCZ TNC SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING	11.0 GIGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45024 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	FRONT SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	VIBRATION RESISTANT AND SHOCK RESISTANT AND CORROSION RESISTANT AND MOISTURE RESISTANT
III OPERATING TEMP RATING	-65.0 DEG CELSIUS MINIMUM AND 165.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL	GOLD AND SILVER
III PRECIOUS MATERIAL AND LOCATION	CENTER TERMINAL FINISH GOLD AND OUTER CONTACT FINISH SILVER
III END ITEM IDENTIFICATION	1520-01-135-8250

Restrictions/Controls & Freight Information | NSN 5935-01-469-8522

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	C	Item contains two or more precious metals
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-469-8522

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
