Product Details | ELECTRICAL CONNECTOR SHELL

5935-01-468-5174 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.

Part Alternates: 5D05101, 5D0510-1, 5935-01-468-5174, 01-468-5174, 5935014685174, 014685174, 617610061

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 13 OCT 1999 01-468-5174

Drawings & Photos | NSN 5935-01-468-5174


Cross Reference | NSN 5935-01-468-5174

Part Number Cage Code Manufacturer
5D0510-1 88277 BOEING COMPANY, THE DBA BOEING
617610061 0FDA5 RADIALL USA, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-468-5174

Technical Data | NSN 5935-01-468-5174

Characteristic Specifications

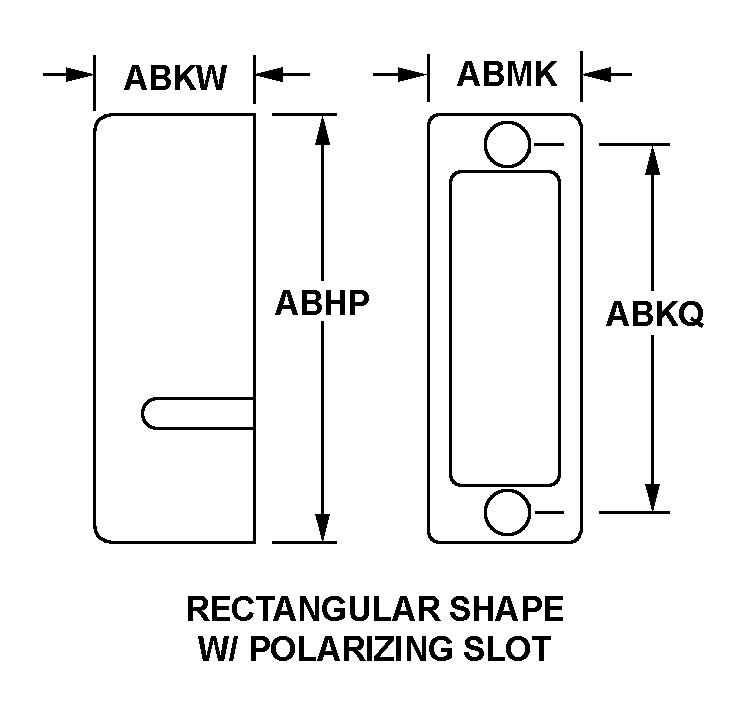

STYLE DESIGNATOR 34D RECTANGULAR SHAPE W/POLARIZING SLOT
OVERALL LENGTH 3.464 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 3.228 INCHES NOMINAL
OVERALL HEIGHT 0.937 INCHES NOMINAL
OVERALL WIDTH 0.984 INCHES NOMINAL
MATERIAL ALUMINUM ALLOY
MOUNTING FACILITY TYPE AND QUANTITY 2 JACKSCREW
III END ITEM IDENTIFICATION C17
