NSN 5935-01-468-4580 4060034, 4060034-25, 610161SD16Z
Product Details | CONNECTOR ADAPTER
5935-01-468-4580 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: 4060034, 4060034-25, 610161SD16Z, 610-1-61SD16-Z, 5935-01-468-4580, 01-468-4580, 5935014684580, 014684580, 406003425
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 1999 | 01-468-4580 | 15091 ( ADAPTER, CONNECTOR ) |
Drawings & Photos | NSN 5935-01-468-4580
Cross Reference | NSN 5935-01-468-4580
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-468-4580
Technical Data | NSN 5935-01-468-4580
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 25N RECTANGULAR SHAPE, STRAIGHT THRU |
| OVERALL LENGTH | 2.392 INCHES MINIMUM AND 2.408 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.409 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| OVERALL WIDTH | 0.345 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| COLOR | GREEN |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14F MIL SPEC SINGLE MATERIAL RESPONSE |
| ROUND GUIDE TYPE AND LOCATION | SOCKET LEFT-HAND TOP AND SOCKET RIGHT-HAND TOP AND PIN LEFT-HAND BOTTOM AND PIN RIGHT-HAND BOTTOM |
| MATING END QUANTITY | 2 |

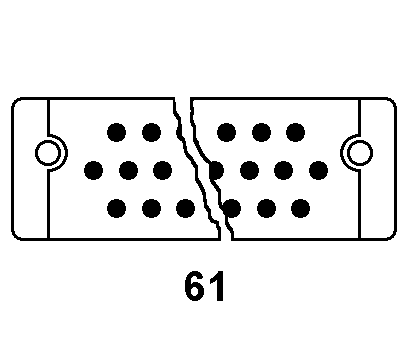

| CONTACT POSITION ARRANGEMENT STYLE | CQAU 61 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 61 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET 1ST MATING END SINGLE CONTACT GROUPING ROUND PIN 2ND MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | NICKEL ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | NICKEL AND GOLD ALL MATING ENDS ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | SOCKET CONTACTS AND GUIDES GOLD |
| III END ITEM IDENTIFICATION | C17A AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5935-01-468-4580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5935-01-468-4580
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | M | RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
