Product Details | ELECTRICAL CONNECTOR INSERT

5935-01-468-3920 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.

Part Alternates: EPXBE40SA, 5D05082, 5D0508-2, 5935-01-468-3920, 01-468-3920, 5935014683920, 014683920

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 07 OCT 1999 01-468-3920

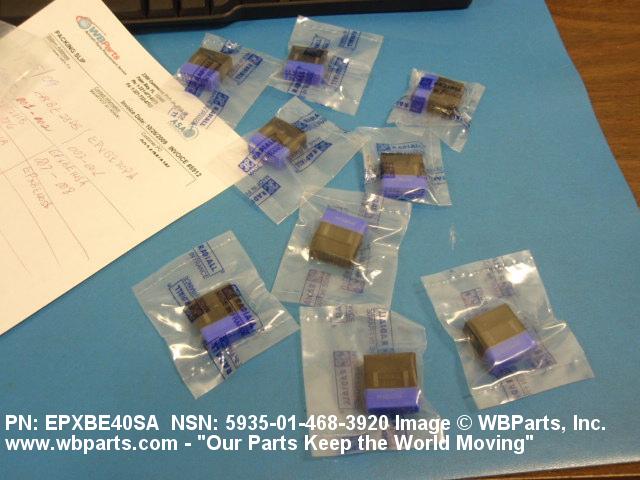

Drawings & Photos | NSN 5935-01-468-3920


Demand History | NSN 5935-01-468-3920

Part Number Request Date QTY Origin
EPXBE40SA 2011-03-15 10 CA
EPXBE40SA 2010-09-09 10 US
5935-01-468-3920 2009-11-18 9 United States
5D05082 2009-11-03 9 US

Cross Reference | NSN 5935-01-468-3920

Part Number Cage Code Manufacturer
5D0508-2 88277 BOEING COMPANY, THE DBA BOEING
EPXBE40SA 0FDA5 RADIALL USA, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-468-3920

Technical Data | NSN 5935-01-468-3920

Characteristic Specifications
BODY STYLE 3P RECTANGULAR SHAPE
MATING END QUANTITY 1
CONTACT POSITION ARRANGEMENT STYLE BSAT 40 SINGLE MATING END
III END ITEM IDENTIFICATION C17

Restrictions/Controls & Freight Information | NSN 5935-01-468-3920

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 72D unknown
Originating Activity Code TK HQ AFMC/GLSC 401 SCM/GUMB
Wright-Patterson AFB, OH 45433-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
