NSN 5935-01-441-4191 MS3408DJ20B7S, MS3408DJ20B-7S, MILC5015
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-441-4191 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3408DJ20B7S, MS3408DJ20B-7S, MILC5015, MIL-C-5015, 6817543 ITEM 205, 6817543ITEM205, 5935-01-441-4191, 01-441-4191, 5935014414191, 014414191
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 FEB 1997 | 01-441-4191 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-441-4191
Demand History | NSN 5935-01-441-4191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-441-4191 | 2018-06-162 | 1 | DIBBS |
| 5935-01-441-4191 | 2009-08-243 | 2 | DIBBS |
Cross Reference | NSN 5935-01-441-4191
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-441-4191
Technical Data | NSN 5935-01-441-4191
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |
| OVERALL DIAMETER | 1.469 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 2.875 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 3.500 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 90.0 |
| MATING END QUANTITY | 1 |

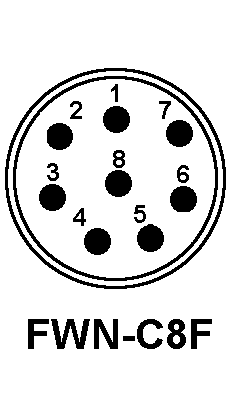

| CONTACT POSITION ARRANGEMENT STYLE | AJBN FWN-C8F SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 8 SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 96906-MS3408 STANDARD |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-5015 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5015 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3408DJ20B-7S |
