NSN 5935-01-415-6544 WAC00244H005, 01-415-6544, 014156544
Product Details | ELECTRICAL CONNECTOR SHELL
5935-01-415-6544 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: WAC00244H005, 5935-01-415-6544, 01-415-6544, 5935014156544, 014156544
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1995 | 01-415-6544 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-415-6544
Cross Reference | NSN 5935-01-415-6544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WAC00244H005 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-415-6544
Technical Data | NSN 5935-01-415-6544
| Characteristic | Specifications |
|---|---|

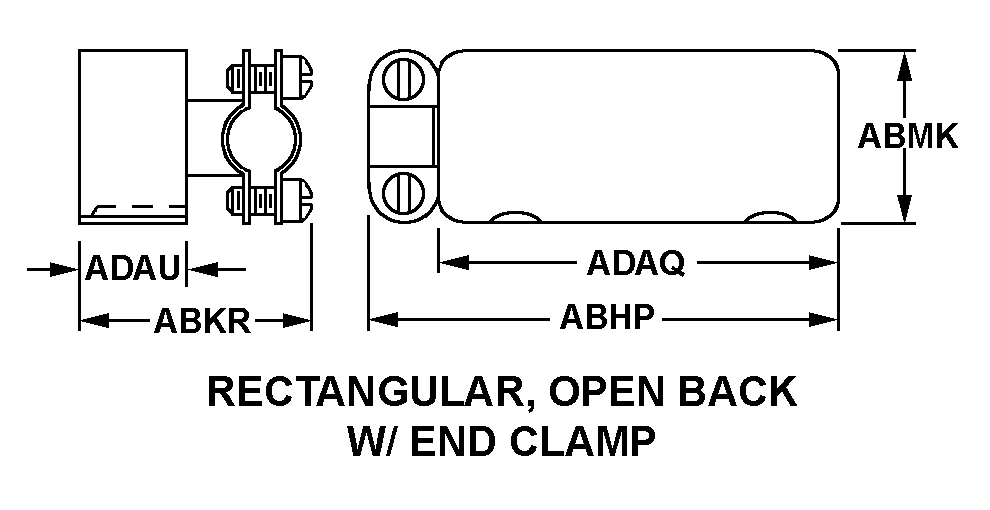

| STYLE DESIGNATOR | 30D RECTANGULAR, OPEN BACK W/END CLAMP |
| OVERALL LENGTH | 4.670 INCHES NOMINAL |
| OVERALL HEIGHT | 1.970 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| BODY LENGTH | 4.130 INCHES NOMINAL |
| BODY HEIGHT | 1.435 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED BLACK |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP ASSEMBLY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING LENGTH | 1.560 INCHES MAXIMUM |
| CABLE OPENING WIDTH | 0.560 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5935-01-415-6544
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
