NSN 5935-01-411-2812 NEBV19/16PFY/T, NEBV1916PFYT, 01-411-2812
Product Details | ELECTRICAL MODULAR RECEPTACLE CONNECTOR
5935-01-411-2812 An electrical fitting with contacts and having one or more cavities into which an INSERT MODULE, ELECTRICAL CONNECTOR can be installed. The insert modules may or may not be included with the item. The item is constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s), or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRNIG BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT, ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); CONNECTOR, RECEPTACLE, ELECTRICAL and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABEL ASSEMBLY (as modified). For items without inserts see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: NEBV19/16PFY/T, NEBV1916PFYT, 5935-01-411-2812, 01-411-2812, 5935014112812, 014112812
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 MAR 1995 | 01-411-2812 | 38440 ( CONNECTOR, MODULAR RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-411-2812
Cross Reference | NSN 5935-01-411-2812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NEBV19/16PFY/T | 50541 | HYPERTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-411-2812
Technical Data | NSN 5935-01-411-2812
| Characteristic | Specifications |
|---|---|

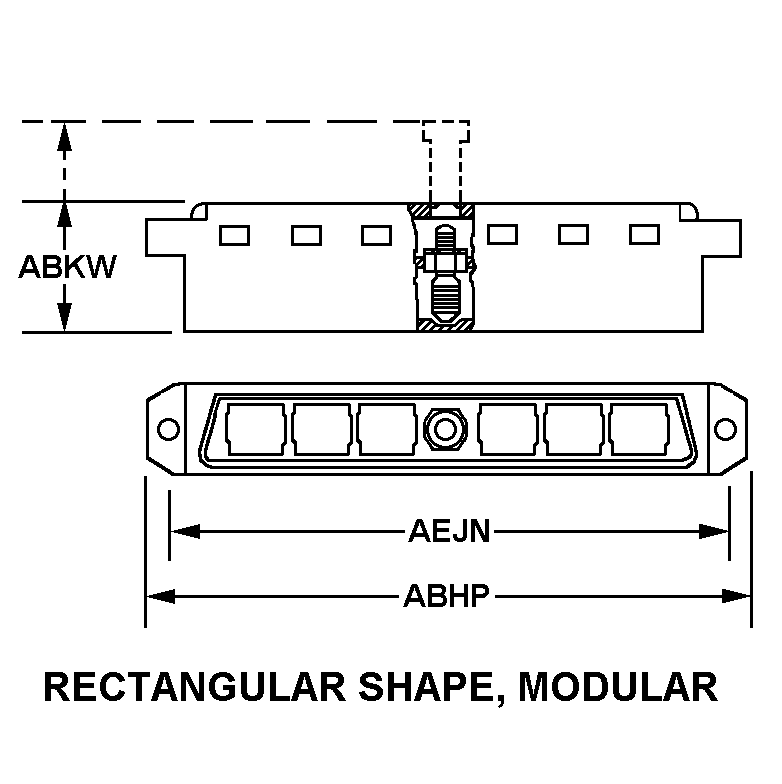

| BODY STYLE | 60G RETANGULAR SHAPE, MODULAR |
| OVERALL LENGTH | 2.569 INCHES NOMINAL |
| OVERALL HEIGHT | 0.827 INCHES NOMINAL |
| OVERALL WIDTH | 1.402 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.200 INCHES NOMINAL |
| MOUNTING METHOD | FLOAT |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/DOUBLE FLAT |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC POLYESTER GLASS FILLED |
| MATING END QUANTITY | 1 |

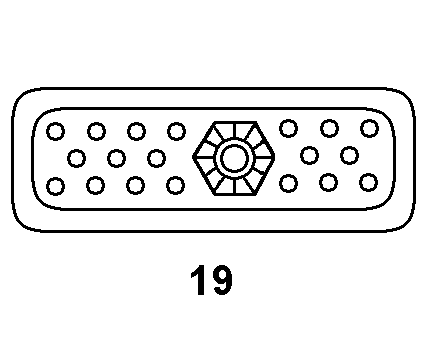

| CONTACT POSITION ARRANGEMENT STYLE | AVBD 19 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYESTER GLASS FILLED SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 19 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 9.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | TURRET SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | FRONT SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.100 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
