NSN 5935-01-397-9904 CMM2622SDD09S19, CMM26-22SDD09S19, CMM2622SDD15SL50
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-397-9904 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CMM2622SDD09S19, CMM26-22SDD09S19, CMM2622SDD15SL50, CMM26-22SDD15SL-50, CUMI26BFD5K19C, SREML26SD4JTU8, SREML26S-D4JTU-8, 11200219-1, 5935-01-397-9904, 01-397-9904, 5935013979904, 112002191, 013979904
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 OCT 1994 | 01-397-9904 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-397-9904
Cross Reference | NSN 5935-01-397-9904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11200219-1 | 34860 | NORTHROP GRUMMAN GUIDANCE AND ELECTRONICS COMPANY, INC. |
| CMM26-22SDD09S19 | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| CMM26-22SDD15SL-50 | 95238 | WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS |
| CUMI26BFD5K19C | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| SREML26S-D4JTU-8 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-397-9904
Technical Data | NSN 5935-01-397-9904
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22A STRAIGHT SHAPE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.580 INCHES NOMINAL |
| OVERALL WIDTH | 0.280 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW-SOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PASSIVATE |
| POLARIZATION METHOD | JACKSCREW |
| JACKSCREW TYPE AND LOCATION | MALE LEFT-HAND AND FEMALE RIGHT-HAND |
| MATING END QUANTITY | 1 |

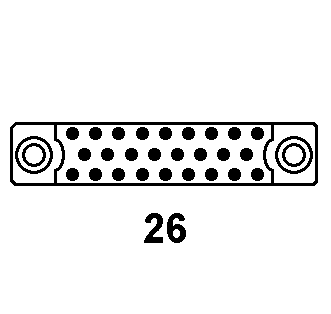

| CONTACT POSITION ARRANGEMENT STYLE | BCAE 26 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 26 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 800.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT AND SHOCK RESISTANT AND SALT SPRAY PROOF AND HUMIDITY RESISTANT |
| III OPERATING TEMP RATING | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.026 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-397-9904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-397-9904
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
