Product Details | ELECTRICAL CONNECTOR JACKSCREW

5935-01-397-9865 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.

Part Alternates: D105506, D10550-6, D115506, D11-550-6, 12932472, 5935-01-397-9865, 01-397-9865, 5935013979865, 013979865

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 21 OCT 1994 01-397-9865

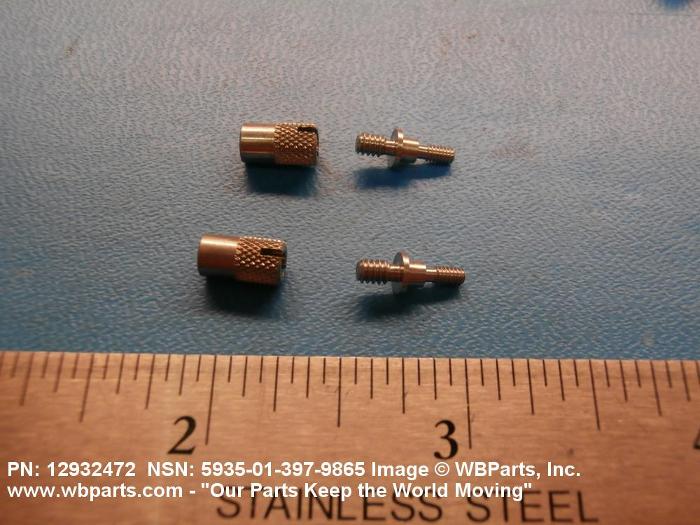

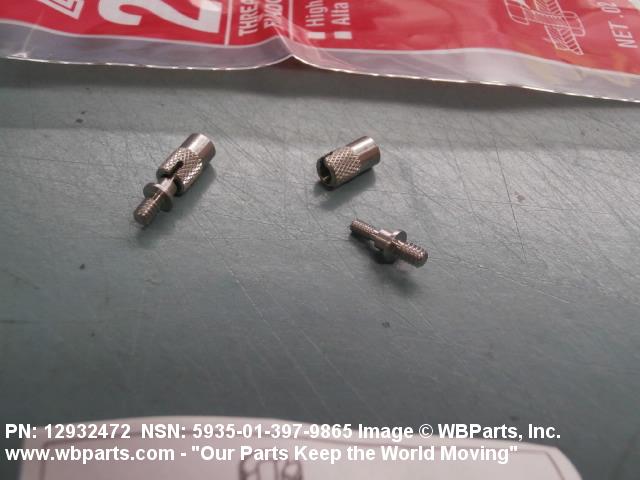

Drawings & Photos | NSN 5935-01-397-9865


Demand History | NSN 5935-01-397-9865

Part Number Request Date QTY Origin
D110550-6 2021-03-80 1000 DIBBS
D110550-6 2021-03-70 181 DIBBS
D110550-6 2021-02-38 506 DIBBS
D110550-6 2020-10-282 289 DIBBS
5935-01-397-9865 2018-10-299 3000 DIBBS
5935-01-397-9865 2018-07-211 728 DIBBS
5935-01-397-9865 2018-07-200 728 DIBBS
5935-01-397-9865 2018-05-122 640 DIBBS
5935-01-397-9865 2018-04-116 208 DIBBS
5935-01-397-9865 2017-10-276 136 DIBBS
5935-01-397-9865 2017-09-249 136 DIBBS
5935-01-397-9865 2014-09-247 81 DIBBS
5935-01-397-9865 2014-07-212 107 DIBBS
5935-01-397-9865 2014-06-177 119 DIBBS
5935-01-397-9865 2014-05-146 101 DIBBS
5935-01-397-9865 2013-10-277 30 United States
5935-01-397-9865 2013-10-276 59 DIBBS
5935-01-397-9865 2013-10-276 59 DIBBS
5935-01-397-9865 2012-09-263 30 United States
5935-01-397-9865 2012-08-227 30 DIBBS
5935-01-397-9865 2009-04-99 19 DIBBS

Cross Reference | NSN 5935-01-397-9865

Part Number Cage Code Manufacturer
12932472 19200 US ARMY ARDEC RDECOM
D10550-6 71468 ITT CORPORATION DBA I T T CANNON
D11-550-6 71468 ITT CORPORATION DBA I T T CANNON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-397-9865

Technical Data | NSN 5935-01-397-9865

Characteristic Specifications

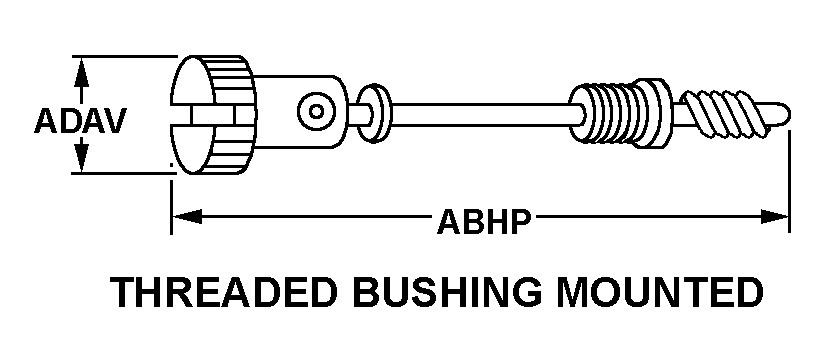

STYLE DESIGNATOR 5M THREADED BUSHING MOUNTED
OVERALL LENGTH 0.664 INCHES MAXIMUM
OVERALL DIAMETER 0.220 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY
MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED COUPLING
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.086 INCHES
THREAD CLASS 2B
THREAD DIRECTION RIGHT-HAND
MANUFACTURERS CODE 19200
MFR SOURCE CONTROLLING REFERENCE 12932472

Restrictions/Controls & Freight Information | NSN 5935-01-397-9865

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TH Defense Supply Center Columbus
Columbus, OH 43215
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
