NSN 5935-01-375-5086 M28840/7H3, M288407H3, MIL-C-28840/7
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-375-5086 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: M28840/7H3, M288407H3, MIL-C-28840/7, MILC288407, 5935-01-375-5086, 01-375-5086, 5935013755086, 013755086
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAY 1993 | 01-375-5086 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |
Drawings & Photos | NSN 5935-01-375-5086
Demand History | NSN 5935-01-375-5086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-375-5086 | 2021-06-152 | 52 | DIBBS |
| 5935-01-375-5086 | 2021-05-136 | 52 | DIBBS |
| 5935-01-375-5086 | 2021-03-62 | 12 | US |
| 5935-01-375-5086 | 2020-12-352 | 12 | United States |
| 5935-01-375-5086 | 2020-12-346 | 12 | United States |
| 5935-01-375-5086 | 2020-11-324 | 8 | DIBBS |
| 5935-01-375-5086 | 2020-11-307 | 11 | DIBBS |
| 5935-01-375-5086 | 2020-10-302 | 12 | US |
| 5935-01-375-5086 | 2020-10-295 | 11 | DIBBS |
| 5935-01-375-5086 | 2020-08-222 | 2 | DIBBS |
| 5935-01-375-5086 | 2020-08-222 | 3 | DIBBS |
| 5935-01-375-5086 | 2017-07-191 | 1 | DIBBS |
| 5935-01-375-5086 | 2017-06-178 | 1 | DIBBS |
| 5935-01-375-5086 | 2016-09-250 | 10 | DIBBS |
| 5935-01-375-5086 | 2016-04-113 | 10 | DIBBS |
| 5935-01-375-5086 | 2016-04-102 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-375-5086
Related Products | NSN 5935-01-375-5086
Technical Data | NSN 5935-01-375-5086
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |

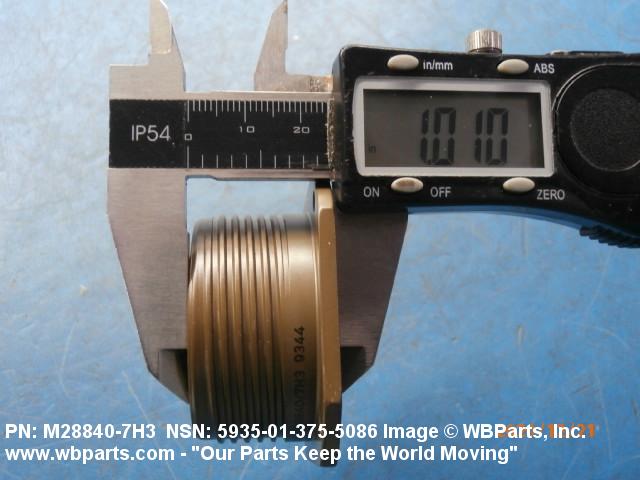

| OVERALL LENGTH | 1.003 INCHES NOMINAL |
| OVERALL HEIGHT | 2.118 INCHES MINIMUM AND 2.158 INCHES MAXIMUM |
| OVERALL WIDTH | 2.118 INCHES MINIMUM AND 2.158 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.568 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.568 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.888 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD CLASS | 2A |

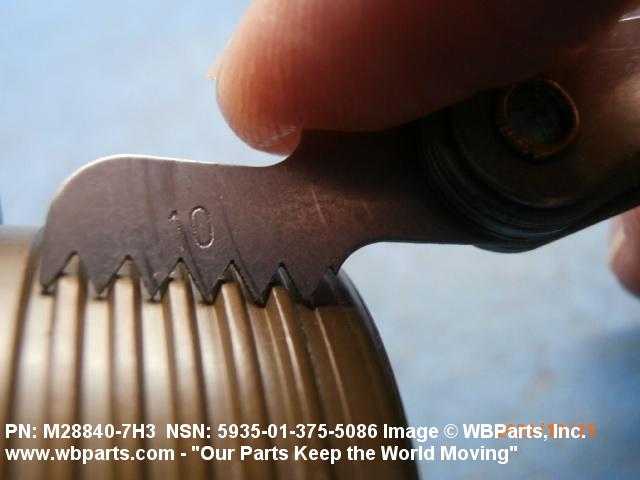

| THREAD QUANTITY PER INCH | 10 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 116.0 AND 160.0 AND 191.0 AND 311.0 |
| MATING END QUANTITY | 1 |
| TEST DATA DOCUMENT | 81349-MIL-C-28840 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28840/7 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28840/7 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28840/7H3 |
