Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-366-4560 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: PL75C201, PL75C-201, 295191-93-7, 2610038030, 261-0038-030, 5935-01-366-4560, 01-366-4560, 5935013664560, 013664560, 295191937

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 OCT 1992	01-366-4560	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-01-366-4560

Part Number	Request Date	QTY	Origin
295191-93-7	2025-04-111	925	DIBBS
PL75C-201	2025-04-111	925	DIBBS
295191-93-7	2025-04-100	925	DIBBS
PL75C-201	2025-04-100	925	DIBBS
295191-93-7	2024-11-312	982	DIBBS
PL75C-201	2024-11-312	982	DIBBS
295191-93-7	2024-07-193	882	DIBBS
PL75C-201	2024-07-193	882	DIBBS
295191-93-7	2023-11-320	1739	DIBBS
PL75C-201	2023-11-320	1739	DIBBS
295191-93-7	2023-06-159	425	DIBBS
PL75C-201	2023-06-159	425	DIBBS
295191-93-7	2023-01-19	429	DIBBS
PL75C-201	2023-01-19	429	DIBBS
295191-93-7	2022-10-301	2227	DIBBS
PL75C-201	2022-10-301	2227	DIBBS
295191-93-7	2022-10-285	2227	DIBBS
PL75C-201	2022-10-285	2227	DIBBS
295191-93-7	2021-11-321	267	DIBBS
295191-93-7	2021-11-321	470	DIBBS
295191-93-7	2021-11-321	479	DIBBS
PL75C-201	2021-11-321	267	DIBBS
PL75C-201	2021-11-321	470	DIBBS
PL75C-201	2021-11-321	479	DIBBS
295191-93-7	2021-10-290	267	DIBBS
PL75C-201	2021-10-290	267	DIBBS
295191-93-7	2021-10-276	470	DIBBS
295191-93-7	2021-10-276	479	DIBBS
PL75C-201	2021-10-276	470	DIBBS
PL75C-201	2021-10-276	479	DIBBS
295191-93-7	2021-08-227	3712	DIBBS
PL75C-201	2021-08-227	3712	DIBBS
295191-93-7	2020-06-167	854	DIBBS
PL75C-201	2020-06-167	854	DIBBS
295191-93-7	2020-05-152	854	DIBBS
PL75C-201	2020-05-152	854	DIBBS
295191-93-7	2019-12-335	2522	DIBBS
PL75C-201	2019-12-335	2522	DIBBS
295191-93-7	2019-08-234	1279	DIBBS
PL75C-201	2019-08-234	1279	DIBBS
295191-93-7	2019-04-115	1369	DIBBS
PL75C-201	2019-04-115	1369	DIBBS
5935-01-366-4560	2018-02-32	1539	DIBBS
5935-01-366-4560	2017-09-271	1383	DIBBS
5935-01-366-4560	2017-07-204	579	DIBBS
5935-01-366-4560	2016-03-80	1528	DIBBS
5935-01-366-4560	2016-03-75	1	DIBBS-RFPs
5935-01-366-4560	2015-11-330	1673	DIBBS
5935-01-366-4560	2015-08-237	1454	DIBBS
5935-01-366-4560	2015-05-125	1250	DIBBS
5935-01-366-4560	2014-10-303	1583	DIBBS
5935-01-366-4560	2014-07-190	1177	DIBBS
5935-01-366-4560	2014-03-70	2454	DIBBS
PL75C201	2013-09-253	108	United States
5935-01-366-4560	2013-06-154	1	MANUAL
PL75C-201	2013-06-154	1	United States
5935-01-366-4560	2013-01-18	16	US
5935-01-366-4560	2013-01-18	16	US
PL75C201	2013-01-03	120	US
PL75C201	2013-01-03	120	US
5935-01-366-4560	2012-11-325	0	DIBBS
5935-01-366-4560	2012-08-244	1818	DIBBS
5935-01-366-4560	2012-06-182	826	DIBBS
5935-01-366-4560	2012-03-69	0	DIBBS
5935-01-366-4560	2011-12-342	990	DIBBS
5935-01-366-4560	2011-10-276	0	DIBBS
5935-01-366-4560	2011-05-133	677	DIBBS
5935-01-366-4560	2011-03-82	836	DIBBS
5935-01-366-4560	2010-10-285	35	DIBBS
5935-01-366-4560	2010-09-251	1080	DIBBS
5935-01-366-4560	2010-08-224	444	DIBBS
5935-01-366-4560	2010-08-223	556	DIBBS
5935-01-366-4560	2010-07-210	261	DIBBS
5935-01-366-4560	2010-07-193	1048	DIBBS
5935-01-366-4560	2010-07-188	10	US
5935-01-366-4560	2010-07-188	671	DIBBS
5935-01-366-4560	2010-05-148	1618	DIBBS
5935-01-366-4560	2008-12-345	924	DIBBS
5935-01-366-4560	2008-04-116	10	us
5935-01-366-4560	2008-02-56	3470	DIBBS
5935-01-366-4560	2007-08-218	3716	DIBBS
5935-01-366-4560	2007-06-172	967	DIBBS
5935-01-366-4560	2007-06-159	1892	DIBBS
5935-01-366-4560	2007-05-128	1040	DIBBS
5935-01-366-4560	2007-04-95	253	DIBBS
5935-01-366-4560	2007-03-81	293	DIBBS
5935-01-366-4560	2007-03-73	1058	DIBBS
5935-01-366-4560	2007-02-57	281	DIBBS
5935-01-366-4560	2007-02-51	990	DIBBS
5935-01-366-4560	2007-02-36	579	DIBBS

Cross Reference | NSN 5935-01-366-4560

Part Number	Cage Code	Manufacturer
261-0038-030	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
295191-93-7	66702	COAXIAL COMPONENTS CORP.
PL75C-201	14949	TROMPETER ELECTRONICS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-366-4560

Compare

Related Products | NSN 5935-01-366-4560

5935-01-366-4561, 5935-01-366-4565, 5935-01-366-4566, 5935-01-366-4567, 5935-01-366-4568

Technical Data | NSN 5935-01-366-4560

Characteristic	Specifications

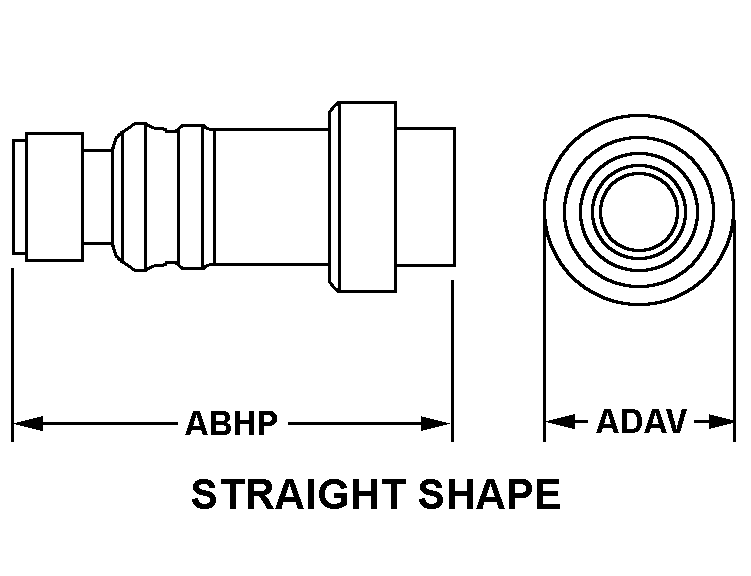

BODY STYLE	2E STRAIGHT SHAPE
