NSN 5935-01-361-3756 M85049/38-13W, M85049/38S13W, M850493813W

Product Details | ELECTRICAL CONNECTOR BACKSHELL

5935-01-361-3756 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Part Alternates: M85049/38-13W, M85049/38S13W, M850493813W, M8504938S13W, AS85049/38, AS8504938, MIL-C-85049/38, MILC8504938, 5935-01-361-3756, 01-361-3756, 5935013613756, 013613756

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 JUL 1992	01-361-3756	67169 ( BACKSHELL, ELECTRICAL CONNECTOR )

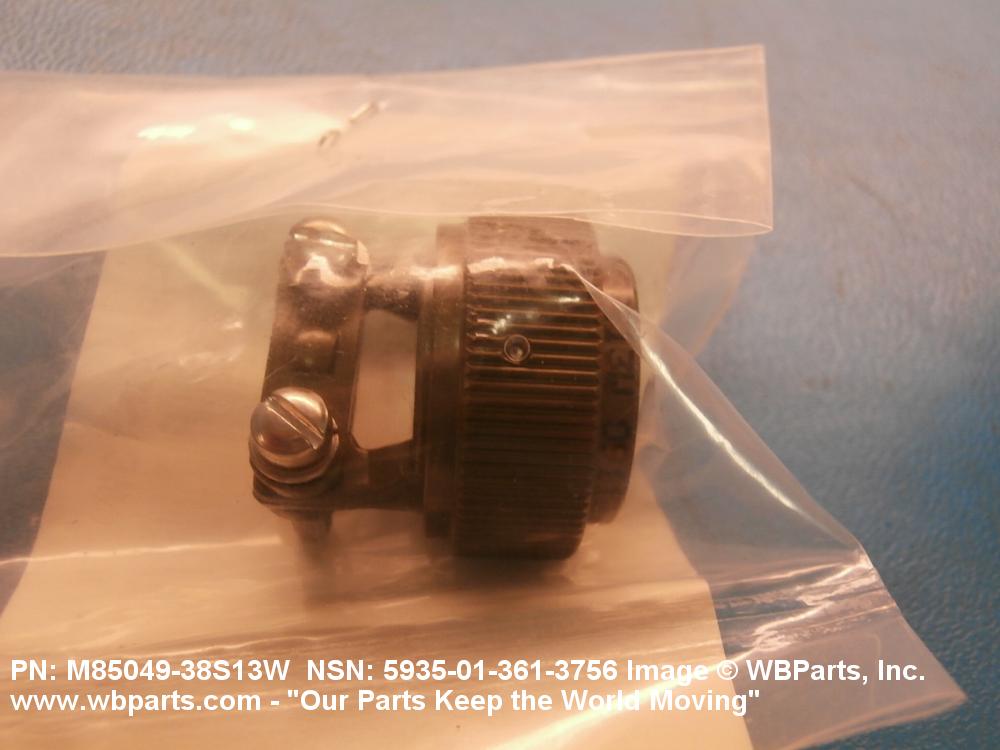

Drawings & Photos | NSN 5935-01-361-3756

Part Number	Request Date	QTY	Origin
M850493813W	2024-01-16	67	United States
M850493813W	2023-10-23	80	United States
5935-01-361-3756	2019-05-28	620	DIBBS
5935-01-361-3756	2019-05-16	620	DIBBS
5935-01-361-3756	2018-03-08	1	US
5935-01-361-3756	2017-08-13	641	DIBBS
5935-01-361-3756	2017-06-06	691	DIBBS
M850493813W	2017-02-28	10	Pakistan
M850493813W	2017-02-27	10	Pakistan
5935-01-361-3756	2016-04-28	953	DIBBS
5935-01-361-3756	2016-02-04	896	DIBBS
M850493813W	2015-06-16	13	United States
5935-01-361-3756	2015-04-27	996	DIBBS
M85049/38S13W	2015-04-01	10	Greece
5935-01-361-3756	2014-07-16	185	DIBBS
5935-01-361-3756	2014-05-13	331	DIBBS
5935-01-361-3756	2014-01-27	606	United States
5935-01-361-3756	2014-01-23	606	DIBBS
M8504938S13W	2013-09-10	6	United States
M85049/38-13W	2013-04-08	10	Korea
M8504938S13W	2013-03-15	4	US
M8504938S13W	2013-01-23	280	United States
5935-01-361-3756	2013-01-14	4	MANUAL
M85049/38S13W	2013-01-14	4	United States
M8504938S13W	2012-12-20	3	Malaysia
5935-01-361-3756	2012-09-05	541	DIBBS
M85049/38-13W	2012-07-18	40
M8504938S13W	2012-06-25	10	SG
5935-01-361-3756	2012-05-05	0	DIBBS
5935-01-361-3756	2012-04-12	184	DIBBS
5935-01-361-3756	2012-03-21	240	DIBBS
5935-01-361-3756	2011-10-25	302	DIBBS
5935-01-361-3756	2011-04-20	248	DIBBS
M850493813W	2011-04-07	10	United States
5935-01-361-3756	2011-01-27	272	DIBBS
5935-01-361-3756	2010-11-23	367	DIBBS
5935-01-361-3756	2007-08-13	555	DIBBS
5935-01-361-3756	2007-04-02	412	DIBBS
5935-01-361-3756	2007-03-30	255	DIBBS

Cross Reference | NSN 5935-01-361-3756

Part Number	Cage Code	Manufacturer
AS85049/38	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/38-13W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M85049/38S13W	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/38S13W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85049/38	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-361-3756

Compare

Related Products | NSN 5935-01-361-3756

5935-01-361-3993, 5935-01-361-4121, 5935-01-361-4122, 5935-01-361-4123, 5935-01-361-4124

Technical Data | NSN 5935-01-361-3756

Characteristic	Specifications
STYLE DESIGNATOR	4C STRAIGHT TYPE W/CABLE CLAMP
OVERALL LENGTH	1.200 INCHES MAXIMUM
OVERALL HEIGHT	1.100 INCHES MAXIMUM
OVERALL WIDTH	1.157 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	CADMIUM
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
UNTHREADED MOUNTING HOLE DIAMETER	1.157 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	ISO M
NOMINAL THREAD SIZE	18.0 MILLIMETERS
THREAD TOLERANCE CLASS	6G INTERNAL
THREAD PITCH IN MILLIMETERS	1.00
THREAD DIRECTION	RIGHT-HAND
CABLE OPENING QUANTITY	1
CABLE OPENING DIAMETER	0.190 INCHES MINIMUM AND 0.328 INCHES MAXIMUM
SIZE DESIGNATION	13
TEST DATA DOCUMENT	81349-MIL-C-85049 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-85049/38 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-85049/38
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M85049/38S13W
