NSN 5935-01-361-0510 6166717, 01-361-0510, 013610510
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-361-0510 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: 6166717, 5935-01-361-0510, 01-361-0510, 5935013610510, 013610510
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUL 1992 | 01-361-0510 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-361-0510
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-361-0510
Technical Data | NSN 5935-01-361-0510
| Characteristic | Specifications |
|---|---|

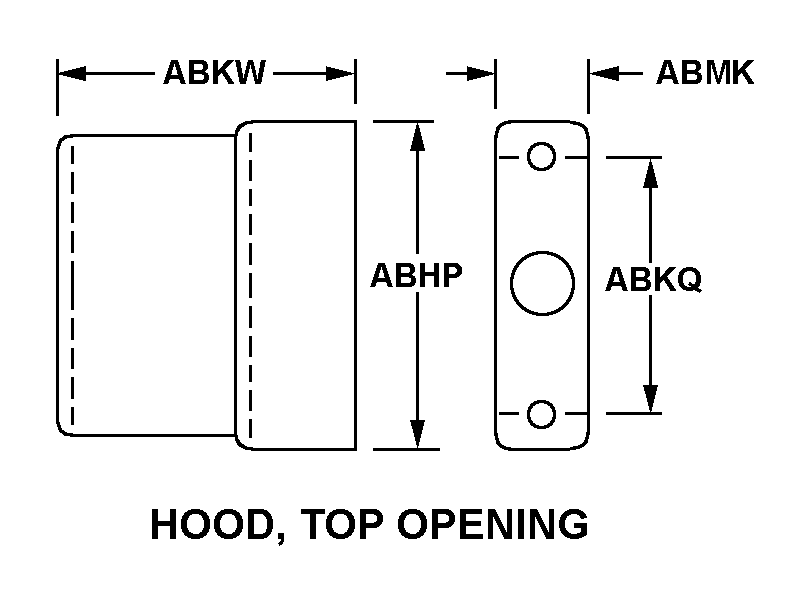

| STYLE DESIGNATOR | 31G HOOD, TOP OPENING |
| OVERALL LENGTH | 0.775 INCHES MINIMUM AND 0.795 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.555 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.770 INCHES MINIMUM AND 0.830 INCHES MAXIMUM |
| OVERALL WIDTH | 0.325 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL, ELECTROLESS |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.178 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | CIWS,MK15MOD1 |
