NSN 5935-01-360-7017 DPD2MA15633SF, DPD2MA156-33SF, 01-360-7017
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-360-7017 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPD2MA15633SF, DPD2MA156-33SF, 5935-01-360-7017, 01-360-7017, 5935013607017, 013607017
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 29 JUN 1992 | 01-360-7017 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Cross Reference | NSN 5935-01-360-7017
Part Number | Cage Code | Manufacturer |
---|---|---|
DPD2MA156-33SF | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-01-360-7017
Technical Data | NSN 5935-01-360-7017
Characteristic | Specifications |
---|---|

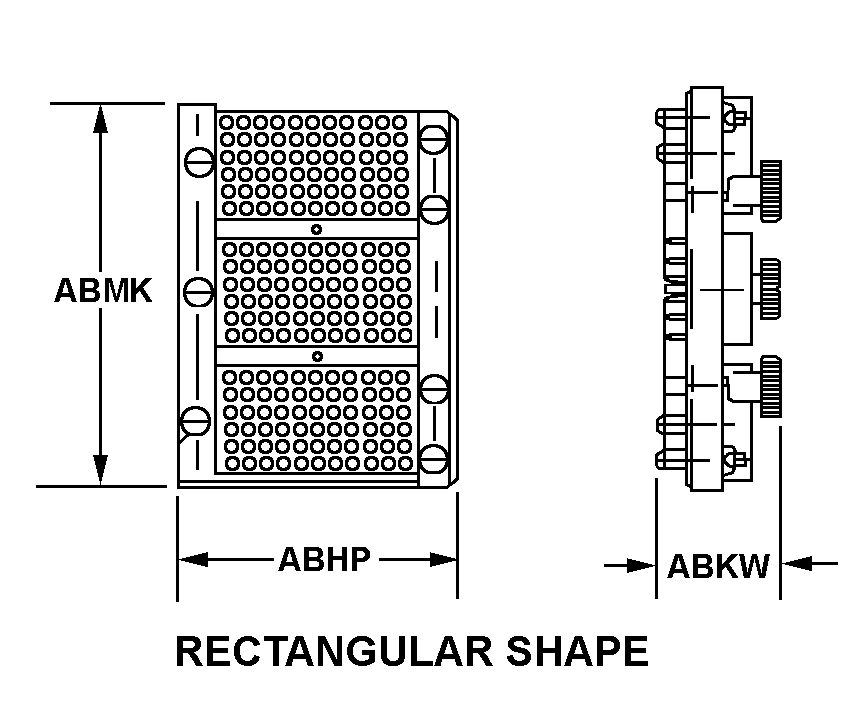

BODY STYLE | 63A RECTANGULAR SHAPE |
SHELL TYPE | SPLIT |
SHELL MATERIAL | ALUMINUM ALLOY |
SHELL SURFACE TREATMENT | CADMIUM |
POLARIZATION METHOD | JACKSCREW |
MATING END QUANTITY | 2 |
CONTACT POSITION ARRANGEMENT STYLE | GGAA 156 ALL MATING ENDS |
INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE ALL MATING ENDS |
INCLUDED CONTACT QUANTITY | 156 ALL MATING ENDS ALL CONTACT GROUPINGS |
INCLUDED CONTACT TYPE | ROUND SOCKET ALL MATING ENDS ALL CONTACT GROUPINGS |
CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
CONTACT SURFACE TREATMENT | SILVER ALL MATING ENDS ALL CONTACT GROUPINGS |
III PRECIOUS MATERIAL | SILVER |
III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-01-360-7017
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
