Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-360-3102 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 6125341505, 61253-41505, 5935-01-360-3102, 01-360-3102, 5935013603102, 013603102
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JUN 1992 | 01-360-3102 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-360-3102
Cross Reference | NSN 5935-01-360-3102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 61253-41505 | 97384 | AAI CORPORATION DBA TEXTRON SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-360-3102
Related Products | NSN 5935-01-360-3102
Technical Data | NSN 5935-01-360-3102
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 62A RECTANGULAR SHAPE W/CABLE CLAMP |
| OVERALL LENGTH | 2.430 INCHES NOMINAL |
| OVERALL WIDTH | 1.420 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| SHELL TYPE | HOOD, TOP OPENING |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 2 |

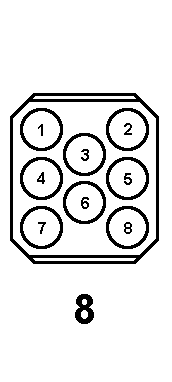

| CONTACT POSITION ARRANGEMENT STYLE | AJGF 8 1ST MATING END AZBM 23 2ND MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE GLASS FILLED 1ST MATING END |
| INCLUDED CONTACT QUANTITY | 1 1ST MATING END 1ST CONTACT GROUPING 2 1ST MATING END 2ND CONTACT GROUPING 2 2ND MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE 1ST MATING END 1ST CONTACT GROUPING REMOVABLE 1ST MATING END 2ND CONTACT GROUPING REMOVABLE 2ND MATING END 1ST CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET 1ST MATING END 1ST CONTACT GROUPING ROUND SOCKET 1ST MATING END 2ND CONTACT GROUPING ROUND SOCKET 2ND MATING END 1ST CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY 1ST MATING END 1ST CONTACT GROUPING COPPER ALLOY 1ST MATING END 2ND CONTACT GROUPING COPPER ALLOY 2ND MATING END 1ST CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD 1ST MATING END 1ST CONTACT GROUPING GOLD 1ST MATING END 2ND CONTACT GROUPING GOLD 2ND MATING END 1ST CONTACT GROUPING |
| TERMINAL TYPE | CRIMP 1ST MATING END 1ST CONTACT GROUPING CRIMP 1ST MATING END 2ND CONTACT GROUPING CRIMP 2ND MATING END 1ST CONTACT GROUPING |
| TERMINAL LOCATION | BACK 1ST MATING END 1ST CONTACT GROUPING BACK 1ST MATING END 2ND CONTACT GROUPING BACK 2ND MATING END 1ST CONTACT GROUPING |
| MISSING CONTACT TYPE AND QUANTITY | 5 ROUND SOCKET 1ST MATING END 3RD CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE 21 ROUND SOCKET 2ND MATING END 2ND CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| III PRECIOUS MATERIAL | GOLD |
