NSN 5935-01-349-6886 M85049/48-1-7F, M850494817F, MIL-C-85049/48
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-349-6886 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M85049/48-1-7F, M850494817F, MIL-C-85049/48, MILC8504948, 5935-01-349-6886, 01-349-6886, 5935013496886, 013496886
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1991 | 01-349-6886 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-349-6886
Demand History | NSN 5935-01-349-6886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-349-6886 | 2023-04-117 | 35 | DIBBS |
| 5935-01-349-6886 | 2021-09-245 | 23 | DIBBS |
| 5935-01-349-6886 | 2021-07-203 | 23 | DIBBS |
| 5935-01-349-6886 | 2016-12-355 | 13 | DIBBS |
| 5935-01-349-6886 | 2016-06-154 | 11 | DIBBS |
| 5935-01-349-6886 | 2015-11-307 | 11 | DIBBS |
| 5935-01-349-6886 | 2013-10-281 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-349-6886
Related Products | NSN 5935-01-349-6886
Technical Data | NSN 5935-01-349-6886
| Characteristic | Specifications |
|---|---|

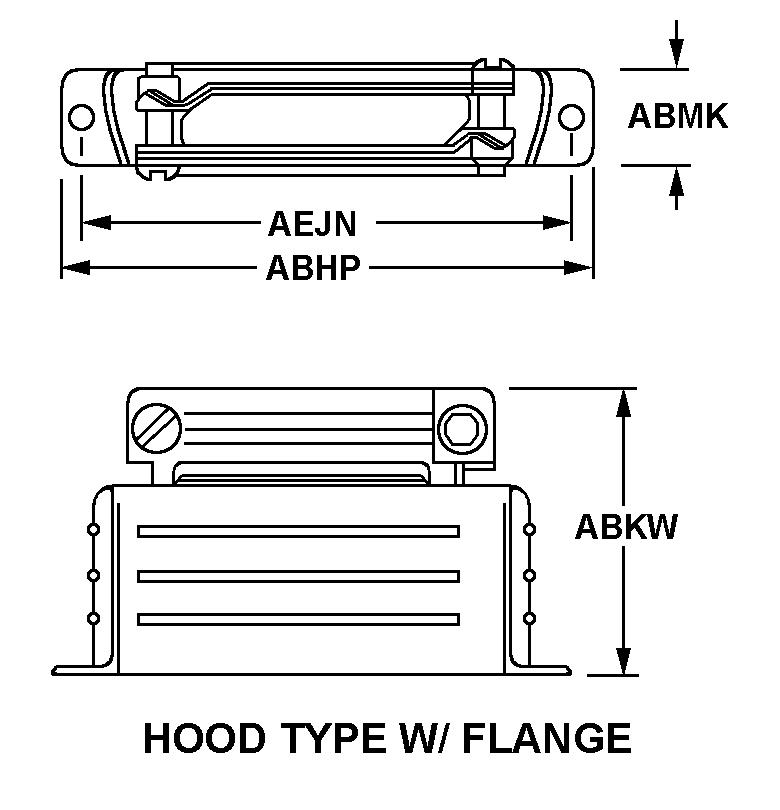

| STYLE DESIGNATOR | 28G HOOD TYPE W/FLANGE |
| OVERALL LENGTH | 1.516 INCHES MINIMUM AND 1.546 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.187 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| OVERALL WIDTH | 0.469 INCHES MINIMUM AND 0.514 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.307 INCHES MINIMUM AND 1.317 INCHES MAXIMUM |
| MATERIAL | BRASS |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.131 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.578 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/48 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049/48 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/48-1-7F |
Restrictions/Controls & Freight Information | NSN 5935-01-349-6886
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
