NSN 5935-01-346-9627 M24231/2-002, M242312002, MIL-C-24231/2
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-346-9627 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M24231/2-002, M242312002, MIL-C-24231/2, MILC242312, MILC2423120029, 5935-01-346-9627, 01-346-9627, 5935013469627, 013469627
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 1991 | 01-346-9627 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-346-9627
Demand History | NSN 5935-01-346-9627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-346-9627 | 2025-02-56 | 43 | DIBBS |
| 5935-01-346-9627 | 2024-07-200 | 43 | DIBBS |
| 5935-01-346-9627 | 2023-12-362 | 44 | DIBBS |
| M242312002 | 2023-02-41 | 4 | United States |
| 5935-01-346-9627 | 2021-01-05 | 110 | DIBBS |
| 5935-01-346-9627 | 2019-11-325 | 38 | DIBBS |
| 5935-01-346-9627 | 2018-10-284 | 61 | DIBBS |
| 5935-01-346-9627 | 2018-06-172 | 40 | DIBBS |
| 5935-01-346-9627 | 2017-08-219 | 55 | DIBBS |
| 5935-01-346-9627 | 2017-07-202 | 5 | US |
| 5935-01-346-9627 | 2017-03-66 | 36 | DIBBS |
| 5935-01-346-9627 | 2016-01-21 | 67 | DIBBS |
| 5935-01-346-9627 | 2015-10-301 | 89 | DIBBS |
| 5935-01-346-9627 | 2015-07-208 | 43 | DIBBS |
| 5935-01-346-9627 | 2014-07-182 | 42 | DIBBS |
| 5935-01-346-9627 | 2012-07-207 | 36 | DIBBS |
| 5935-01-346-9627 | 2012-07-207 | 38 | DIBBS |
| 5935-01-346-9627 | 2011-12-348 | 41 | DIBBS |
| 5935-01-346-9627 | 2011-10-276 | 23 | DIBBS |
| 5935-01-346-9627 | 2011-08-224 | 18 | DIBBS |
| M242312002 | 2011-08-217 | 1 | US |
| 5935-01-346-9627 | 2011-05-129 | 23 | DIBBS |
| 5935-01-346-9627 | 2011-04-100 | 20 | DIBBS |
| 5935-01-346-9627 | 2010-02-56 | 17 | DIBBS |
| 5935-01-346-9627 | 2009-11-334 | 15 | DIBBS |
| 5935-01-346-9627 | 2009-06-169 | 14 | DIBBS |
| 5935-01-346-9627 | 2009-04-106 | 15 | DIBBS |
| 5935-01-346-9627 | 2009-04-98 | 3 | DIBBS |
| 5935-01-346-9627 | 2009-04-91 | 5 | DIBBS |
| 5935-01-346-9627 | 2009-02-56 | 12 | DIBBS |
| 5935-01-346-9627 | 2008-05-133 | 12 | DIBBS |
| 5935-01-346-9627 | 2008-04-120 | 14 | DIBBS |
| 5935-01-346-9627 | 2007-07-192 | 77 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-346-9627
Related Products | NSN 5935-01-346-9627
Technical Data | NSN 5935-01-346-9627
| Characteristic | Specifications |
|---|---|

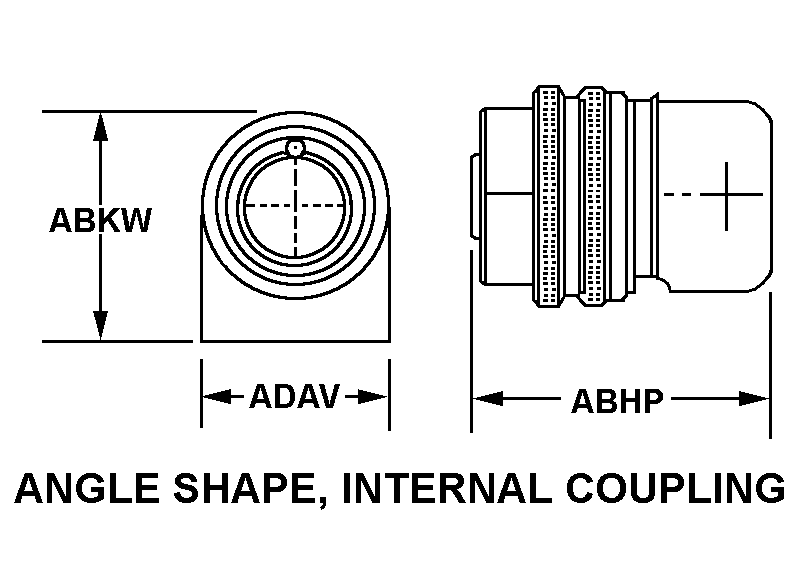

| BODY STYLE | 5B ANGLE SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 3.750 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.375 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.688 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CORD PROTECTOR |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | NICKEL |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CLASS A FED SPEC SINGLE MATERIAL RESPONSE |
| MATING END QUANTITY | 1 |

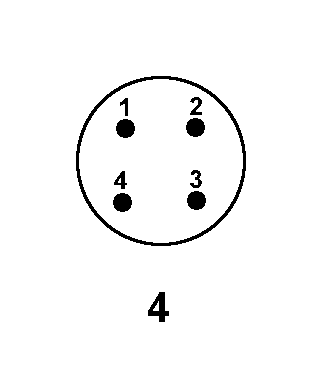

| CONTACT POSITION ARRANGEMENT STYLE | AEFB 4 SINGLE MATING END |
