NSN 5935-01-320-8146 M5530261B20, M55302-61B20, M5530261SB20
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-320-8146 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M5530261B20, M55302-61B20, M5530261SB20, M55302-61S-B20, MIL-C-55302/61B20, MILC5530261B20, 5935-01-320-8146, 01-320-8146, 5935013208146, 013208146
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04-JUN-90 | 01-320-8146 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-320-8146
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-320-8146
Technical Data | NSN 5935-01-320-8146
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 27A ANGLE SHAPE |
| OVERALL LENGTH | 1.840 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| POLARIZATION METHOD | JACKSCREW |
| JACKSCREW TYPE AND LOCATION | MALE LEFT-HAND BOTTOM AND FEMALE RIGHT-HAND BOTTOM |
| MATING END QUANTITY | 1 |

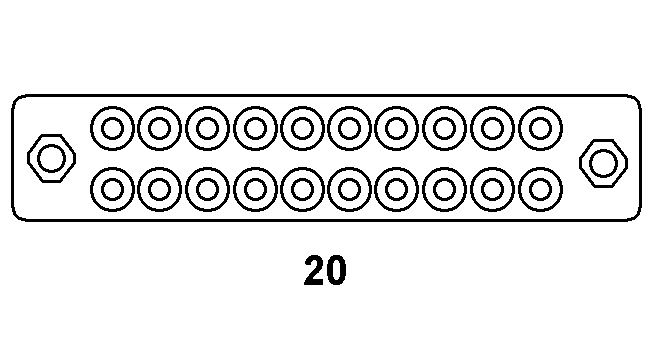

| CONTACT POSITION ARRANGEMENT STYLE | AWBY 20 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 20 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PRINTED CIRCUIT SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | SIDE SINGLE MATING END SINGLE CONTACT GROUPING |
| III END ITEM IDENTIFICATION | MK8MOD0,SENSOR,DEPTH ASSY |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-55302/61B20 |
Restrictions/Controls & Freight Information | NSN 5935-01-320-8146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
