NSN 5935-01-320-7614 12346141, 01-320-7614, 013207614
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-320-7614 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: 12346141, 5935-01-320-7614, 01-320-7614, 5935013207614, 013207614
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUN 1990 | 01-320-7614 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |
Drawings & Photos | NSN 5935-01-320-7614
Demand History | NSN 5935-01-320-7614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-320-7614 | 2020-02-54 | 267 | DIBBS |
| 5935-01-320-7614 | 2017-05-122 | 325 | DIBBS |
| 5935-01-320-7614 | 2017-04-93 | 325 | DIBBS |
| 5935-01-320-7614 | 2017-03-80 | 325 | DIBBS |
| 5935-01-320-7614 | 2016-03-77 | 103 | DIBBS |
| 5935-01-320-7614 | 2016-03-66 | 103 | DIBBS |
| 5935-01-320-7614 | 2015-08-233 | 71 | DIBBS |
| 5935-01-320-7614 | 2015-08-222 | 71 | DIBBS |
| 5935-01-320-7614 | 2015-04-118 | 78 | DIBBS |
| 5935-01-320-7614 | 2015-04-105 | 78 | DIBBS |
| 5935-01-320-7614 | 2015-04-92 | 78 | DIBBS |
| 5935-01-320-7614 | 2015-03-74 | 85 | DIBBS |
| 5935-01-320-7614 | 2013-04-115 | 223 | DIBBS |
| 5935-01-320-7614 | 2008-04-94 | 577 | DIBBS |
| 5935-01-320-7614 | 2007-06-166 | 130 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-320-7614
Related Products | NSN 5935-01-320-7614
Technical Data | NSN 5935-01-320-7614
| Characteristic | Specifications |
|---|---|

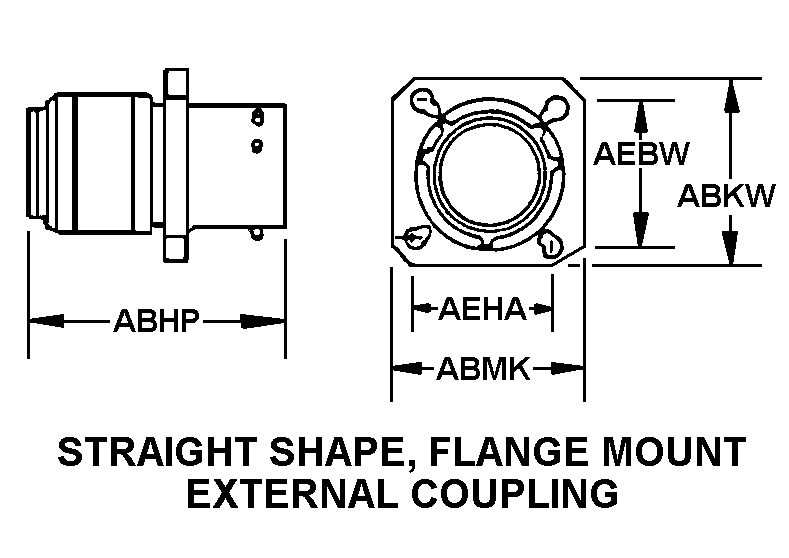

| BODY STYLE | 28G STRAIGHT SHAPE, FLANGE MOUNT EXTERNAL COUPLING |
| OVERALL LENGTH | 1.219 INCHES NOMINAL |
| OVERALL HEIGHT | 1.219 INCHES NOMINAL |
| OVERALL WIDTH | 1.219 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.969 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.969 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET SHELL |
| SHELL MATERIAL | ALUMINUM ALLOY |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABAY NONSTD SINGLE MATING END |
| III END ITEM IDENTIFICATION | COMMON TANK |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12346141 |
Restrictions/Controls & Freight Information | NSN 5935-01-320-7614
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
