NSN 5935-01-320-6963 S23826705R3424, S2382-6705R34-24, E4032R1605148B5524
Product Details | ELECTRICAL CONNECTOR SHELL
5935-01-320-6963 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: S23826705R3424, S2382-6705R34-24, E4032R1605148B5524, E4032R1605148B55-24, 319HA001NF130324, 319HA001NF1303-24, 50642HA130324, 50642HA1303-24, 5935-01-320-6963, 01-320-6963, 5935013206963, 013206963
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUN 1990 | 01-320-6963 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-320-6963
Demand History | NSN 5935-01-320-6963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 319HA001NF1303-24 | 2022-01-20 | 12 | DIBBS |
| E4032R1605148B55-24 | 2022-01-20 | 12 | DIBBS |
| S2382-6705R34-24 | 2022-01-20 | 12 | DIBBS |
| 319HA001NF1303-24 | 2022-01-09 | 12 | DIBBS |
| E4032R1605148B55-24 | 2022-01-09 | 12 | DIBBS |
| S2382-6705R34-24 | 2022-01-09 | 12 | DIBBS |
| 5935-01-320-6963 | 2014-01-30 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-320-6963
Related Products | NSN 5935-01-320-6963
Technical Data | NSN 5935-01-320-6963
| Characteristic | Specifications |
|---|---|

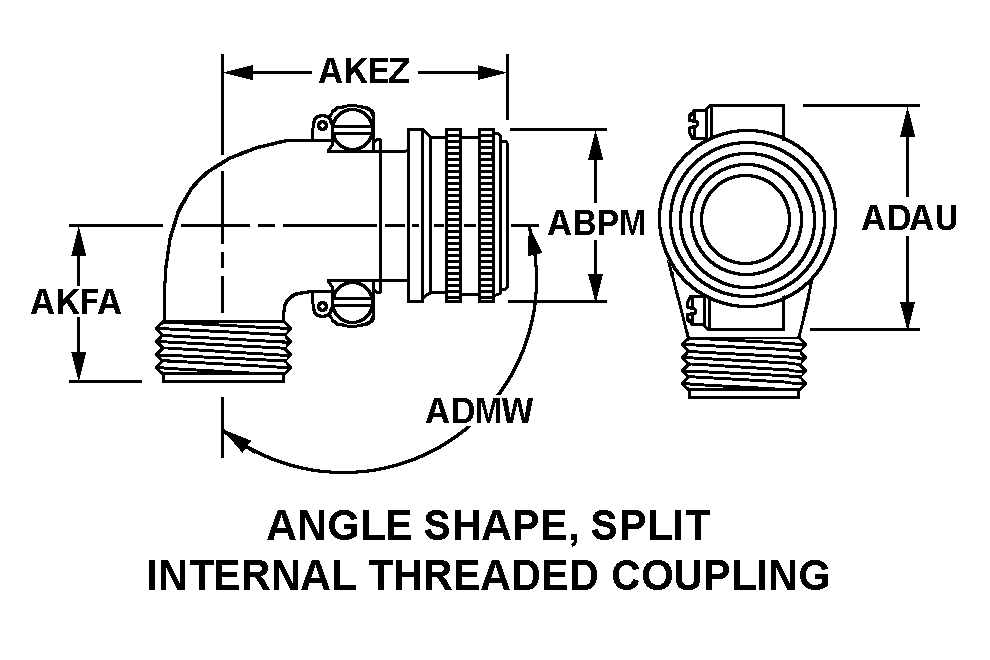

| STYLE DESIGNATOR | 6D ANGLE SHAPE, SPLIT INTERNAL THREADED COUPLING |
| BODY DIAMETER | 1.000 INCHES MAXIMUM |
| BODY HEIGHT | 2.310 INCHES NOMINAL |
| BODY ANGLE IN DEG | 90.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 0.610 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.810 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | NICKEL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 18.1 MILLIMETERS |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.312 INCHES NOMINAL |
| MANUFACTURERS CODE | 72429 |
| MFR SOURCE CONTROLLING REFERENCE | 50642HA1303-24 |
Restrictions/Controls & Freight Information | NSN 5935-01-320-6963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-320-6963
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | FZ | Special Projects (GFE) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
