Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-283-0622 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M83723/77W22126, M8372377W22126, MIL-C-83723/77, MILC8372377, 5935-01-283-0622, 01-283-0622, 5935012830622, 012830622
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1988 | 01-283-0622 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-283-0622
Demand History | NSN 5935-01-283-0622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-283-0622 | 2023-09-14 | 30 | DIBBS |
| 5935-01-283-0622 | 2022-04-21 | 14 | DIBBS |
| 5935-01-283-0622 | 2022-04-10 | 14 | DIBBS |
| 5935-01-283-0622 | 2022-03-22 | 1 | DIBBS |
| 5935-01-283-0622 | 2022-02-24 | 1 | DIBBS |
| 5935-01-283-0622 | 2021-08-23 | 5 | DIBBS |
| 5935-01-283-0622 | 2021-01-20 | 1 | DIBBS |
| 5935-01-283-0622 | 2020-12-06 | 1 | DIBBS |
| 5935-01-283-0622 | 2020-12-01 | 1 | DIBBS |
| 5935-01-283-0622 | 2017-10-16 | 2 | DIBBS |
| 5935-01-283-0622 | 2014-04-01 | 1 | DIBBS |
| 5935-01-283-0622 | 2014-01-22 | 1 | DIBBS |
| 5935-01-283-0622 | 2013-12-27 | 1 | DIBBS |
| 5935-01-283-0622 | 2012-11-19 | 5 | DIBBS |
| 5935-01-283-0622 | 2011-02-03 | 3 | DIBBS |
| 5935-01-283-0622 | 2010-03-05 | 3 | DIBBS |
| 5935-01-283-0622 | 2009-05-09 | 1 | DIBBS |
| 5935-01-283-0622 | 2009-04-06 | 1 | DIBBS |
| 5935-01-283-0622 | 2009-02-13 | 1 | DIBBS |
| 5935-01-283-0622 | 2006-01-19 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-283-0622
Related Products | NSN 5935-01-283-0622
Technical Data | NSN 5935-01-283-0622
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.420 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.625 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.312 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.290 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 18.0 AND 149.0 AND 192.0 AND 259.0 |
| MATING END QUANTITY | 1 |

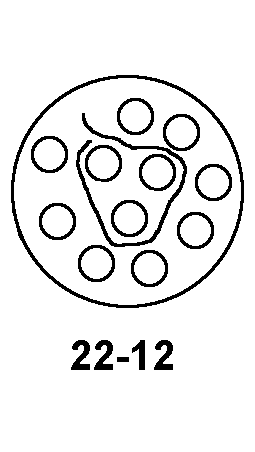

| CONTACT POSITION ARRANGEMENT STYLE | ANAJ 22-12 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 12 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 1,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-83723 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-83723/77 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.012 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83723/77 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83723/77W22126 |
