NSN 5935-01-280-9797 D38999/33W15R, D3899933W15R, DOD-C-38999/33

Product Details | ELECTRICAL CONNECTOR COVER

5935-01-280-9797 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.

Part Alternates: D38999/33W15R, D3899933W15R, DOD-C-38999/33, DODC3899933, 6017496, 601-7496 , 5935-01-280-9797, 01-280-9797, 5935012809797, 012809797

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 JUN 1988	01-280-9797	15076 ( COVER, ELECTRICAL CONNECTOR )

Drawings & Photos | NSN 5935-01-280-9797

Part Number	Request Date	QTY	Origin
5935-01-280-9797	2024-12-338	6	US
5935-01-280-9797	2024-09-260	935	DIBBS
D3899933W15R	2024-01-02	106	United States
5935-01-280-9797	2023-09-262	224	DIBBS
5935-01-280-9797	2023-09-258	1	US
5935-01-280-9797	2023-09-247	224	DIBBS
5935-01-280-9797	2023-08-237	850	DIBBS
5935-01-280-9797	2023-08-226	850	DIBBS
5935-01-280-9797	2023-07-194	146	DIBBS
5935-01-280-9797	2023-05-150	167	DIBBS
D3899933W15R	2023-05-143	100	Italy
5935-01-280-9797	2023-05-138	167	DIBBS
5935-01-280-9797	2022-03-68	1377	DIBBS
5935-01-280-9797	2022-03-66	1377	DIBBS
5935-01-280-9797	2021-03-80	665	DIBBS
D3899933W15R	2021-01-19	200	Italy
5935-01-280-9797	2020-04-103	670	DIBBS
5935-01-280-9797	2019-06-165	2	United States
5935-01-280-9797	2018-05-126	1624	DIBBS
5935-01-280-9797	2017-10-291	1340	DIBBS
5935-01-280-9797	2016-08-236	1437	DIBBS
5935-01-280-9797	2016-04-116	1200	DIBBS
5935-01-280-9797	2015-12-344	491	DIBBS
5935-01-280-9797	2014-11-325	1165	DIBBS
5935-01-280-9797	2014-10-303	2	United States
5935-01-280-9797	2014-04-112	1020	DIBBS
5935-01-280-9797	2014-03-62	749	DIBBS
5935-01-280-9797	2013-10-291	646	DIBBS
5935-01-280-9797	2013-04-109	598	DIBBS
D38999/33W15R	2013-04-98	2	Korea
5935-01-280-9797	2012-09-262	486	DIBBS
5935-01-280-9797	2012-02-55	60	DIBBS
D3899933W15R	2010-09-263	2	United States
D3899933W15R	2009-12-335	30	Italy
5935-01-280-9797	2009-10-292	100	Turkey
D3899933W15R	2009-04-92	5	Spain
D3899933W15R	2008-05-136	500	US
5935-01-280-9797	2008-05-123	1275	DIBBS
5935-01-280-9797	2008-01-24	806	DIBBS
5935-01-280-9797	2007-04-106	666	DIBBS

Cross Reference | NSN 5935-01-280-9797

Part Number	Cage Code	Manufacturer
D38999/33W15R	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
D38999/33W15R	98255	DRS SUSTAINMENT SYSTEMS, INC.
DOD-C-38999/33	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-280-9797

Compare

Related Products | NSN 5935-01-280-9797

5935-01-280-9798, 5935-01-280-9799, 5935-01-280-9800, 5935-01-280-9801, 5935-01-280-9803

Technical Data | NSN 5935-01-280-9797

Characteristic	Specifications

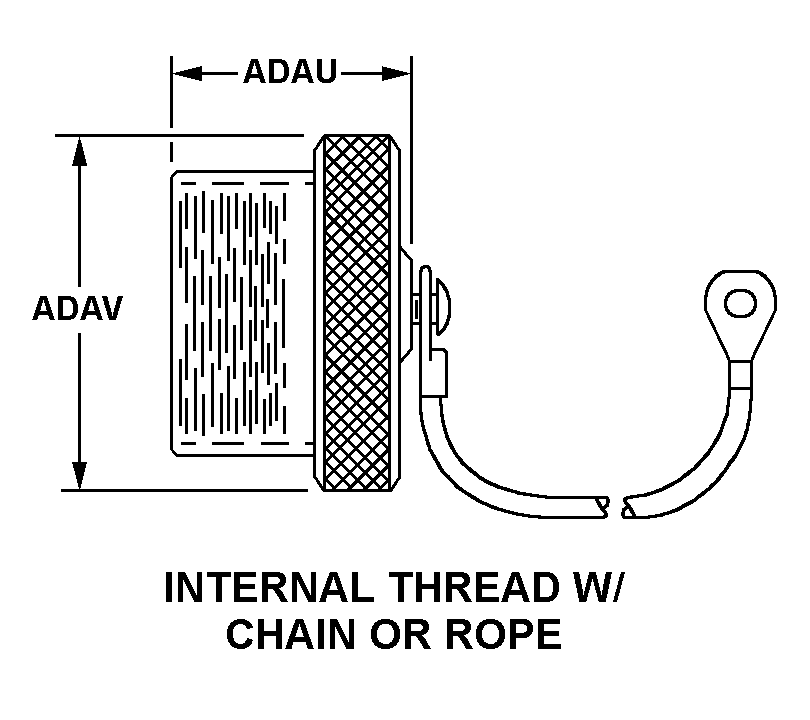

STYLE DESIGNATOR	1A INTERNAL THREAD W/CHAIN OR ROPE
BODY HEIGHT	23.0 MILLIMETERS MAXIMUM
OVERALL DIAMETER	32.0 MILLIMETERS MAXIMUM
MATERIAL	ALUMINUM
SURFACE TREATMENT	ANODIZED
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	SPECIAL ACME
NOMINAL THREAD SIZE	1.000 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	10
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	7.72 MILLIMETERS
FURNISHED ITEMS	COVER W/WIRE ROPE
ATTACHMENT FEATURE LENGTH	120.0 MILLIMETERS MINIMUM AND 140.0 MILLIMETERS MAXIMUM
EYE INSIDE DIAMETER	4.11 MILLIMETERS MINIMUM AND 4.49 MILLIMETERS MAXIMUM
SEAL TYPE	GASKET
SEAL MATERIAL	RUBBER, SILICONE BASE
SIZE DESIGNATION	15
TEST DATA DOCUMENT	81349-DOD-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-DOD-C-38999/33 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	DOD-C-38999/33
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	D38999/33W15R

Restrictions/Controls & Freight Information | NSN 5935-01-280-9797

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-280-9797

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
