NSN 5935-01-268-6331 14375-0066, 01-268-6331, 143750066
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-268-6331 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 14375-0066, 5935-01-268-6331, 01-268-6331, 5935012686331, 143750066, 012686331
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 DEC 1987 | 01-268-6331 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-268-6331
Cross Reference | NSN 5935-01-268-6331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14375-0066 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-268-6331
Technical Data | NSN 5935-01-268-6331
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 6A STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF |
| DIAMETER | 1.200 INCHES NOMINAL |
| OVERALL DIAMETER | 1.200 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.440 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CLASS C FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

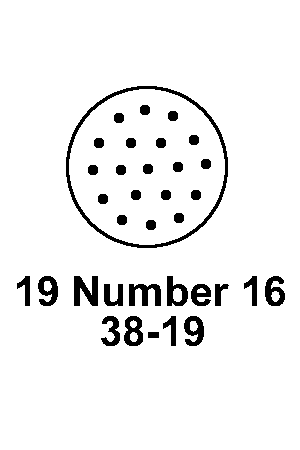

| CONTACT POSITION ARRANGEMENT STYLE | AVBH 19 NUMBER 16 38-19 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING 17 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | NICKEL SINGLE MATING END 1ST CONTACT GROUPING NICKEL ALLOY SINGLE MATING END 2ND CONTACT GROUPING COPPER SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER AND COPPER SINGLE MATING END 1ST CONTACT GROUPING GOLD AND SILVER AND COPPER SINGLE MATING END 2ND CONTACT GROUPING GOLD AND SILVER SINGLE MATING END 3RD CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| THERMOCOUPLE CONTACT POSITION | 13 SINGLE MATING END 1ST CONTACT GROUPING 15 SINGLE MATING END 2ND CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.019 GOLD GRAINS, TROY AND 0.019 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND |
