NSN 5935-01-253-4162 MS2548826, MS25488-26, MILC7974
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-253-4162 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS2548826, MS25488-26, MILC7974, MIL-C-7974, 5935-01-253-4162, 01-253-4162, 5935012534162, 012534162
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 APR 1987 | 01-253-4162 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

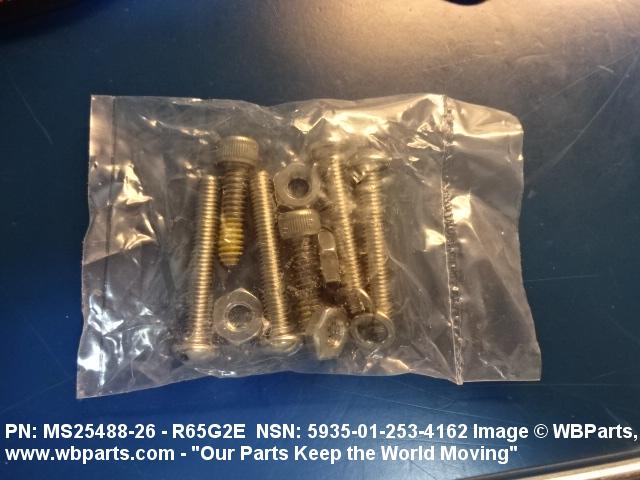

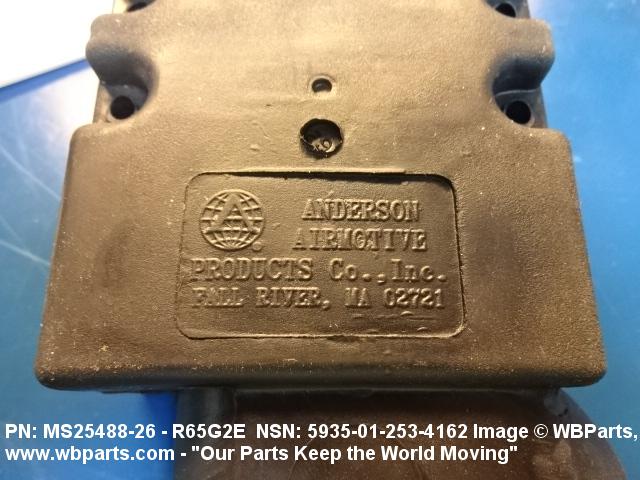

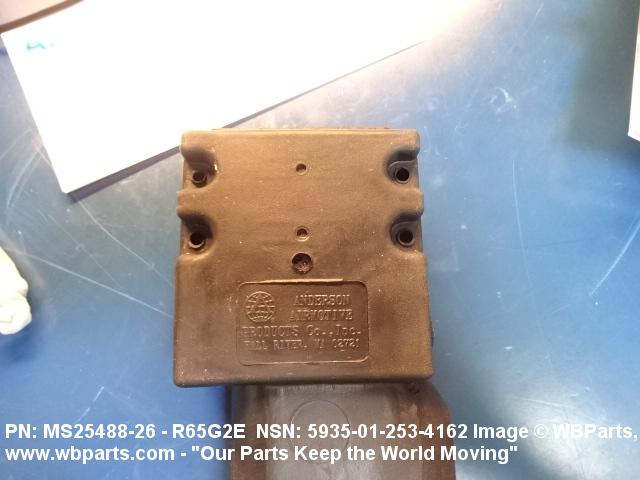

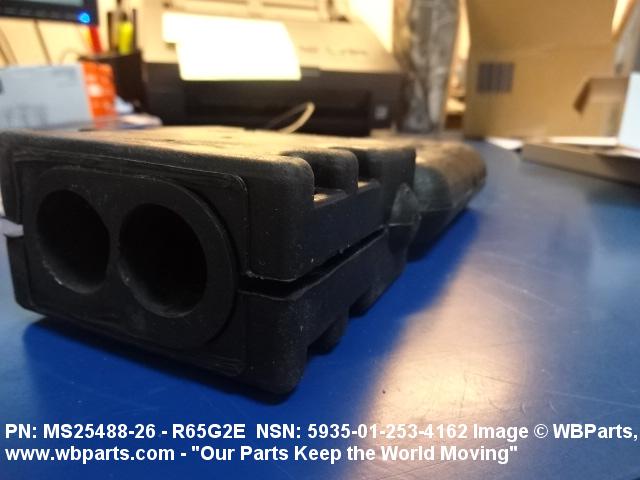

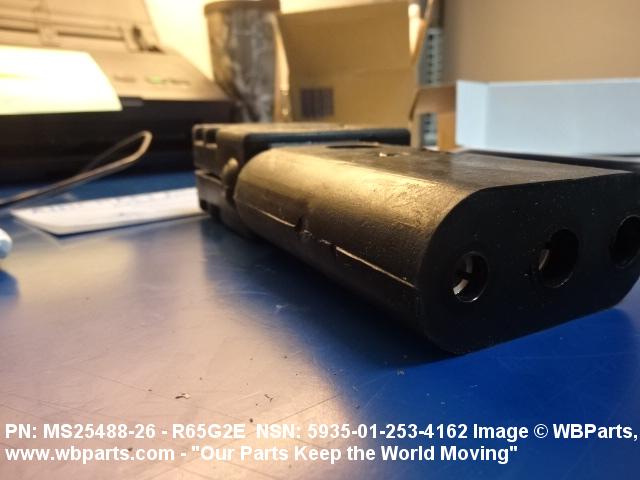

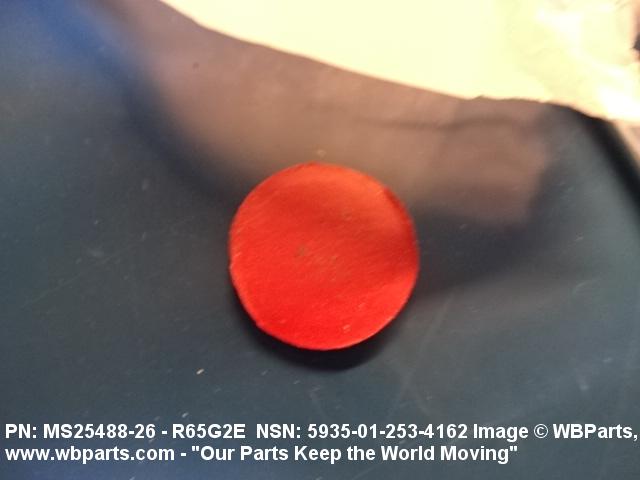

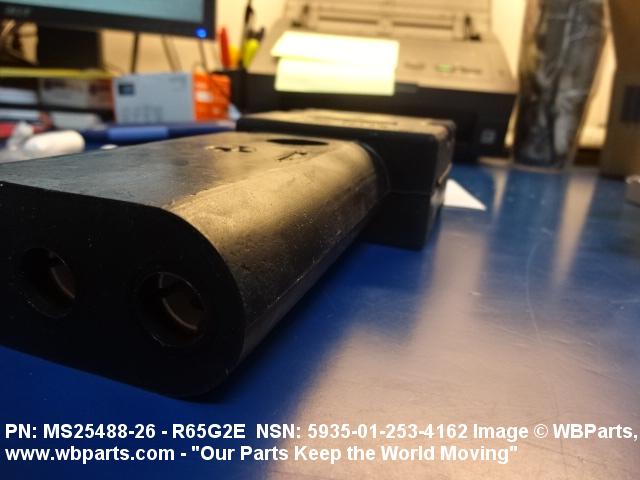

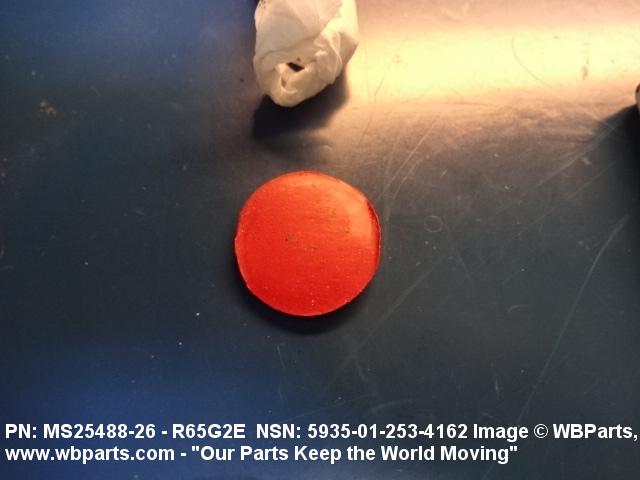

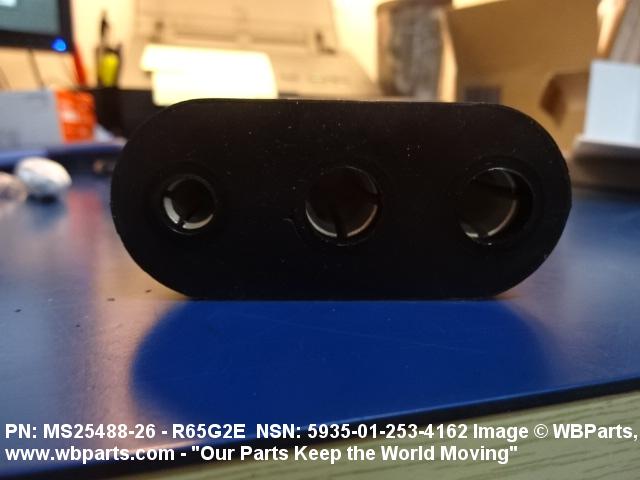

Drawings & Photos | NSN 5935-01-253-4162
Demand History | NSN 5935-01-253-4162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2548826 | 2023-03-69 | 1 | us |
| 5935-01-253-4162 | 2023-01-23 | 1 | US |
| 5935-01-253-4162 | 2020-03-73 | 1 | US |
| MS2548826 | 2019-05-122 | 10 | United States |
| 5935-01-253-4162 | 2012-12-354 | 1 | Indonesia |
| MS2548826 | 2012-04-117 | 1 | US |
| MS2548826 | 2011-04-119 | 36 | US |
| MS2548826 | 2011-01-26 | 54 | US |
| MS2548826 | 2010-12-351 | 1 | US |
| 5935-01-253-4162 | 2010-09-245 | 268 | US |
| 5935-01-253-4162 | 2010-06-167 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-253-4162
Technical Data | NSN 5935-01-253-4162
| Characteristic | Specifications |
|---|---|

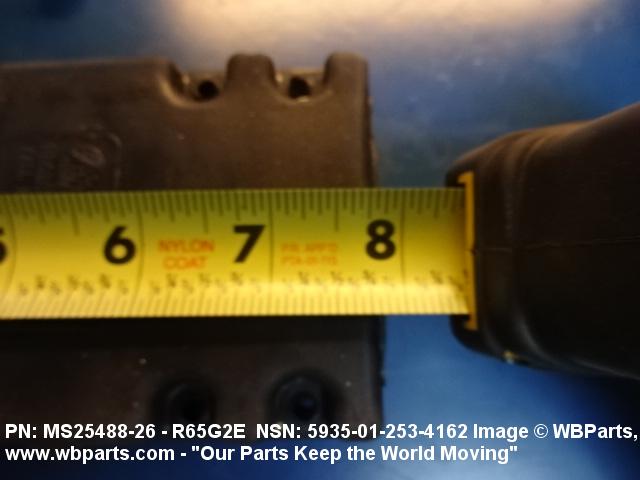

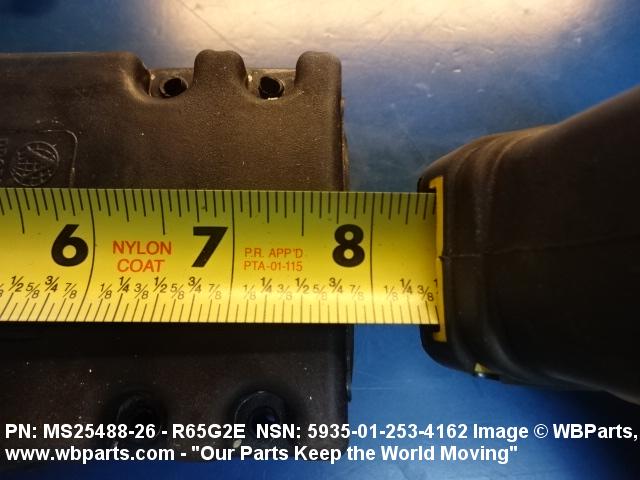

| OVERALL LENGTH | 7.250 INCHES MINIMUM AND 9.500 INCHES MAXIMUM |
| MATING END QUANTITY | 1 |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 28.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP ALL MATING ENDS ALL CONTACT GROUPINGS |
| TEST DATA DOCUMENT | 81349-MIL-C-7974 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS25488 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-7974 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25488-26 |
Restrictions/Controls & Freight Information | NSN 5935-01-253-4162
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
