NSN 5935-01-238-5756 TXR54, TXR54AB901410AI, TXR54AB90-1410AI
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-238-5756 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: TXR54, TXR54AB901410AI, TXR54AB90-1410AI, 12351135, 1235113525, 12351135-25, 7XR54AB902010AIY, 7XR54AB90-2010AI-Y, 5935-01-238-5756, 01-238-5756, 5935012385756, 012385756
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1986 | 01-238-5756 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-238-5756
Demand History | NSN 5935-01-238-5756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TXR54AB90-1410AI | 2024-11-319 | 5 | DIBBS |
Cross Reference | NSN 5935-01-238-5756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12351135 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12351135-25 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7XR54AB90-2010AI-Y | 06090 | TYCO ELECTRONICS CORPORATION |
| TXR54 | 06090 | TYCO ELECTRONICS CORPORATION |
| TXR54AB90-1410AI | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-238-5756
Technical Data | NSN 5935-01-238-5756
| Characteristic | Specifications |
|---|---|

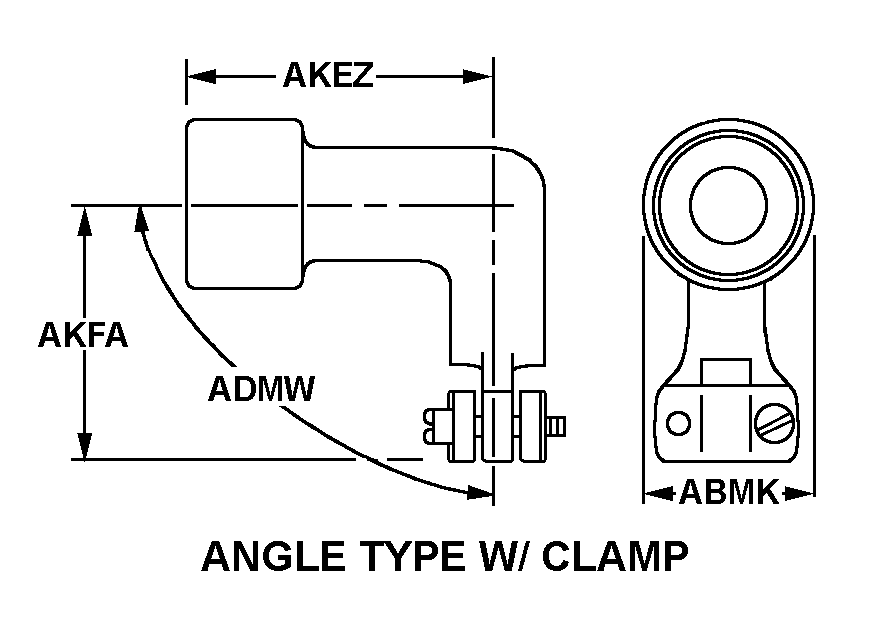

| STYLE DESIGNATOR | 13C ANGLE TYPE W/CLAMP |
